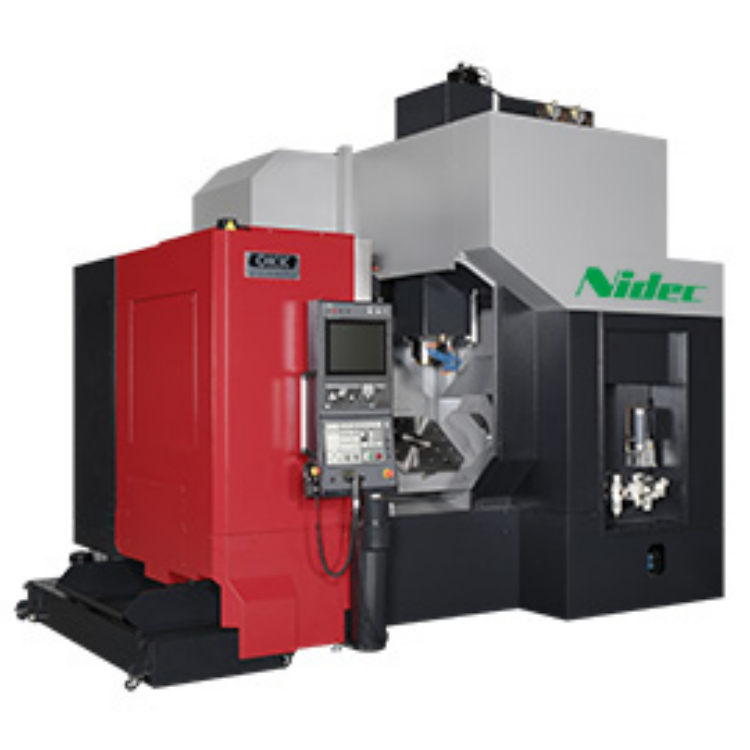

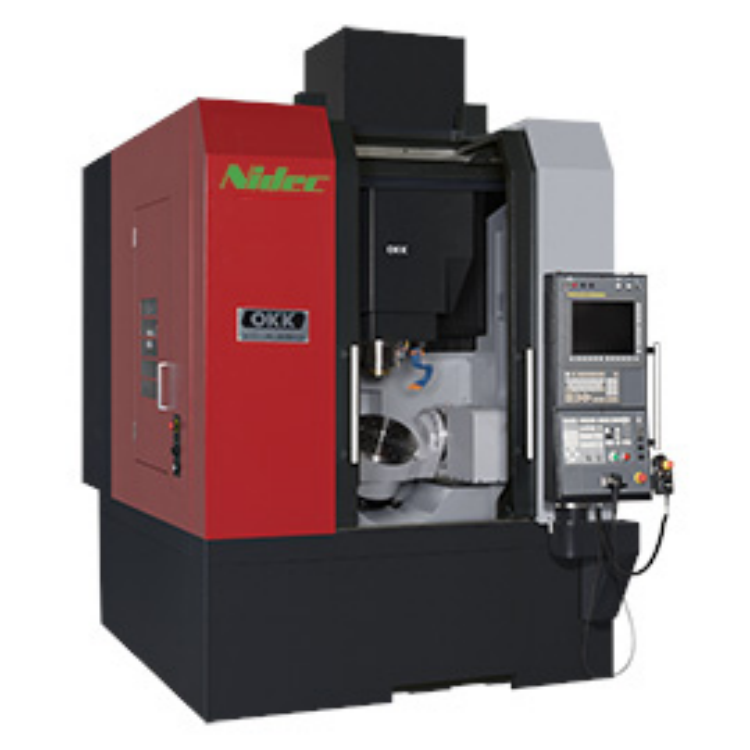

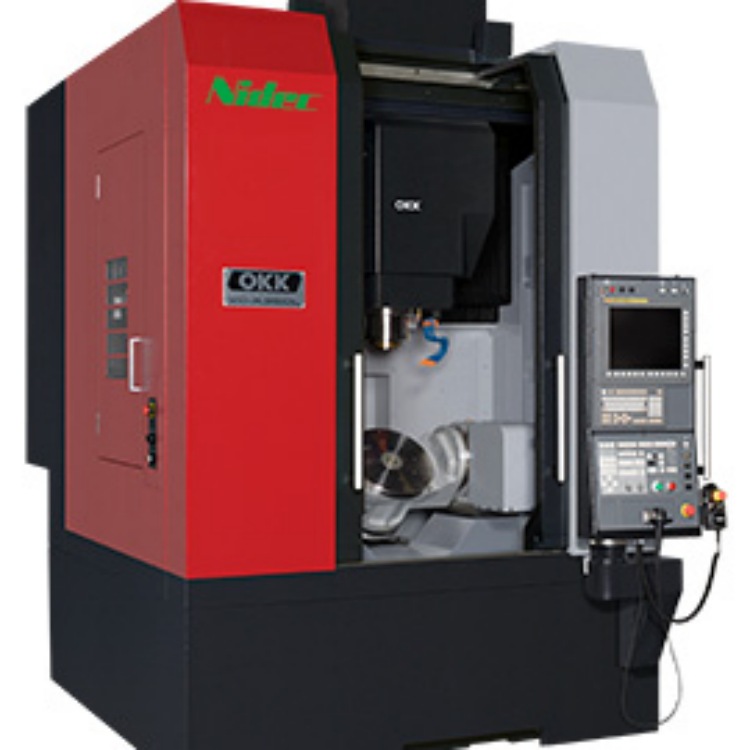

VC-X350 Series
Company: Nidec OKK Corporation
This machine tool showcases its capabilities in efficiently integrating and processing complex and variable molds and components!
Nidec OKK's technology is concentrated in this unique 5-axis model. Process integration shortens the delivery time of the VCX-350, while setting improvements enhance its accuracy and reduce the operator's workload.
· Product Data
· Product Features
Product Data
Product Specifications
Please provide the Chinese content to be translated.X/Y/Z Axis Movement | 600/430/460mm |
Please provide the Chinese content you would like translated into American English.A/C shaft movement | -120 to 30/360 degrees |
Palette dimensions | φ350mm |
Table Load Capacity | 200 kg |
Rapid mobility speed | Wheelbase:50m/min on the Z-axis: 36m/min |
Spindle Speed | 12,000 minutes - 1 (OP: 20,000 minutes - 1) |
Main shaft conical taper | Number 40 |
Number of Storage Tools | 20 (Operations: 30, 40, 60, 80) |
Product Features
Main Structure
The round table's rotational speed is twice that of the current model, with the rapid feed speed increased.50m/minEnhanced efficiency.
Linear roller guide and ball screw
VCX-350 Utilizing a straight roller guide rail larger than the current models, which offers similar rigidity, this model has also enhanced its stiffness and cutting performance by employing a larger diameter ball screw.
Air Traffic Control
This model uses Nippon Chemi-Con. OKK Our renowned cam-type high-speed synchronous tool changer boasts stable tool-changing performance and exceptional durability.
