Dry hobbing machine GE Series
Company operating the products:Nidec Machine Tool Corporation
Best-sellingThe GE series dry-cut gear hobbing machines are the world's first to achieve complete dry cutting.

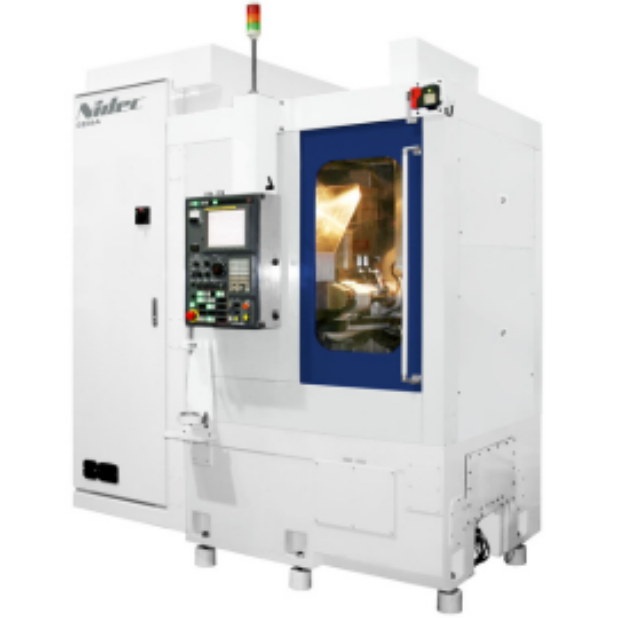

GE06A Series
· Workpiece diameter （mm）
φ60
· Modular
4

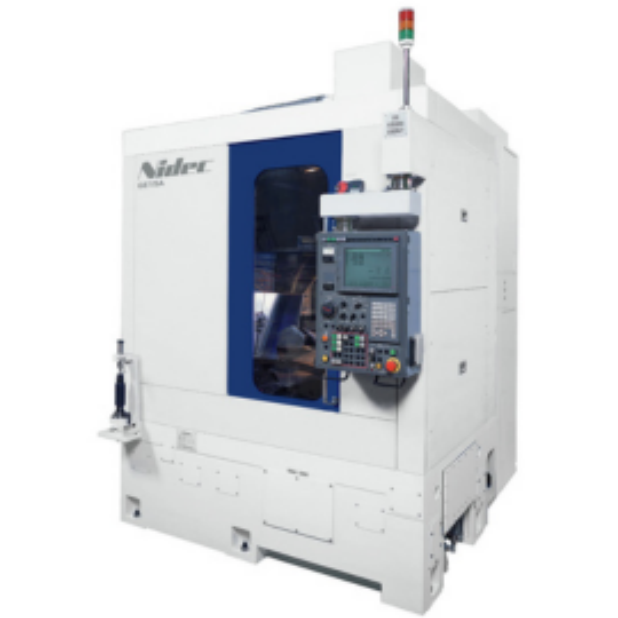

GE15A Model
· Workpiece Diameter （mm）
φ150
· Modular
4

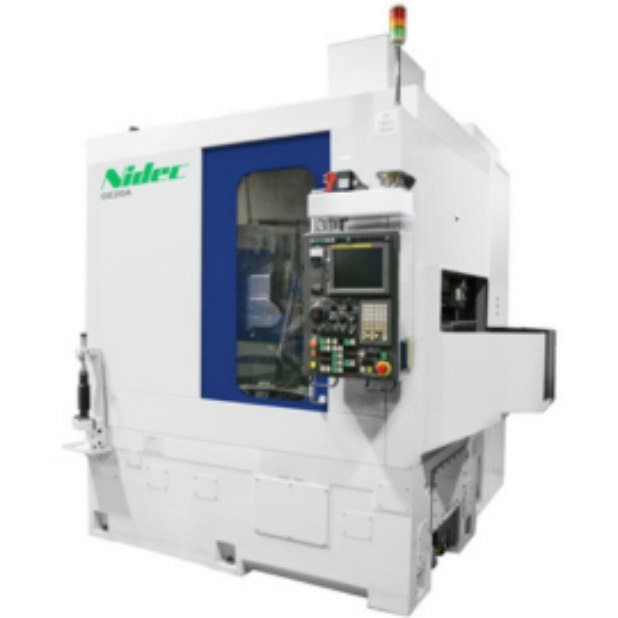

Model GE20A
· Part diameter （mm）
φ200
· Modular
6
GE25A model
· Workpiece Diameter （mm）
φ250
· Modular
6
· Features
· Specs
· Contact
Features
Fully dry cutting
Achieve simple production line setup through modularization of peripheral equipment modules.
Modular peripheral devices and component loading equipment allow for easy setup or layout changes of the production line.
Therefore, it can greatly reduce the working time required for setting changes. We have prepared two types, squareI and II types, easy to align with narrow openings.
Specs
Project/ Model | GE06A Series | GE15A/With Chamfering Device GE15A | GE20A/With Chamfering Device GE20A | GE25A/With Chamfering Device GE25A |
Part Diameter （mm） *1 | ⌀60 | ⌀150 | ⌀200 | ⌀250 |
Modular *1 | 4 | 4 | 6 | 6 |
Axial Stroke （mm） | 200 | $250 (Option 400) | 250 (Option 400) | 250 (Option 400) |
Radial travel （mm） | 120 | 140 (Option 125) | 225 | 210 |
Grinding Wheel Diameter （mm） | ⌀90 | ⌀110 | ⌀130 | ⌀130 |
Carbide Blade Length （mm） | 150 | 180 | 230 | 230 |
Roller Knife Misalignment （mm） | 130 | 150 | 180 | 180 |
Roughing Knife Speed （min-1) | $335 to $2,660 (Options $500 to $4,000) | 200 to 2,000 (options 300 to 3,000) | 200 to 2,000 (options 300 to 3,000) | 150 to 1,500 |
Workbench Speed （min-1) | 500 | $300 (Option $500) | $300 (Option $500) | 150 |
Total power （kVA） | 19 (Option 23) | 22 (Option 27) | 27 (Option 30) | 36 (Option 40) |
Machine Weight （kg） | 6,300 | 8,500 | 9,200 | 11,000 |
When equipped with chamfering devices, there are limitations based on workpiece and cutter specifications.
