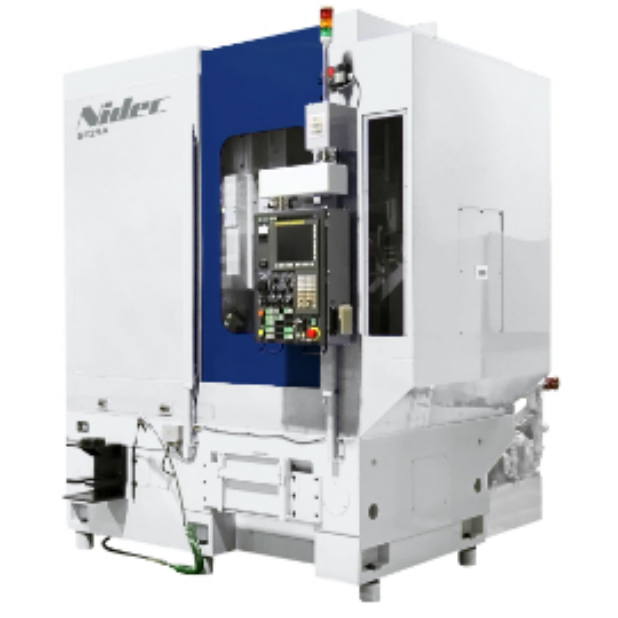

Dry-Type Gear Shaping Machine SE series
Company dealing in products:Nidec Machine Tool Corporation
The SE series is a gear hobbing machine capable of achieving complete dry cutting, ensuring stable and high-efficiency processing.
SE15A Series
· Part diameter （mm）
External Gear ⌀150
Internal Gear ⌀150 (⌀60 + tool diameter)
· Modular
4
SE25A Series
· Part Diameter （mm）
External Gear ⌀250
Internal Gear ⌀250 (⌀120 + Tool Diameter)
· Modular
6
· Features
· Specs
· Contact
Features
Fully Dry Cutting
Achieve effortless production line organization through the modularization of transportation equipment.
Modularizing peripheral equipment and loading devices facilitates easy setup or layout changes of the production line. Therefore, it can greatly minimize the working time required for setting changes.
We offer two configurations for you to choose from based on the type of work.

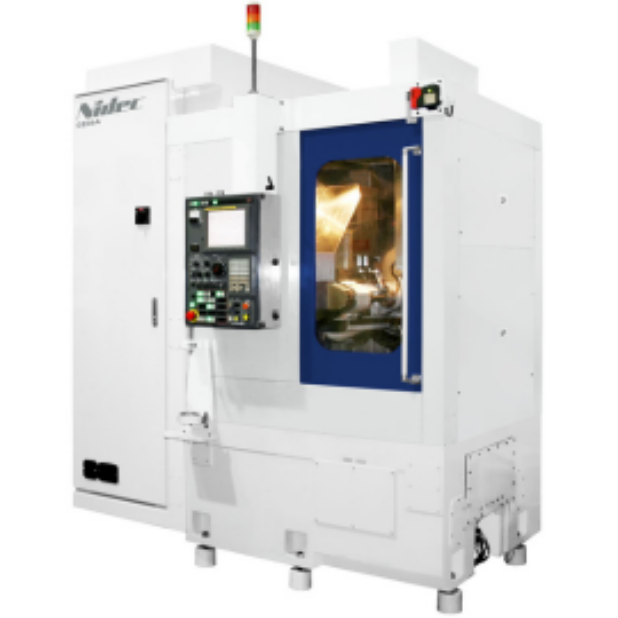

· Type I: Flat front type suitable for manual workpiece loading

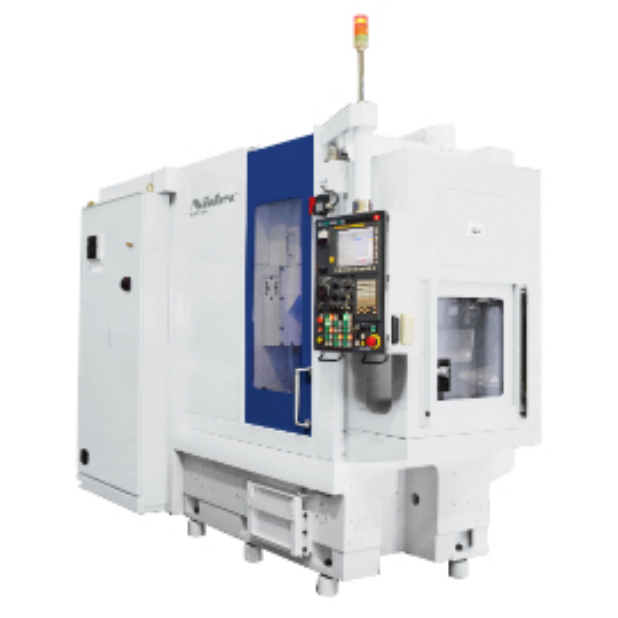

· TypeII: Suitable for narrow-width automated applications
Specs
Project/ Model | SE15A Series | SE25A Series | |
Workpiece Diameter | External Gear （mm） | ⌀150 | ⌀250 |
Internal Gear （mm） | ⌀150 (⌀60 + Tool Diameter) | ⌀250 (⌀120 + Tool Diameter) | |
Modular | 4 | 6 | |
Gear Width （mm） | 32 | 60 | |
Spindle Travel Speed （min-1) | $400 to $2,000 | 180 to 1,800 | |
Cutting Times | 1-4 | 1 to 4 | |
Tooling spindle diameter （mm） | ⌀90 | ⌀90 | |
Main Motor (Continuous Rated Value) （kW） | 7.5 | ||
Controlled shaft count | 4 or 5 | ||
Total electricity （kVA） | 22 | 24 | |
Machine Weight （kg） | 6,500 | 9,000 | |
