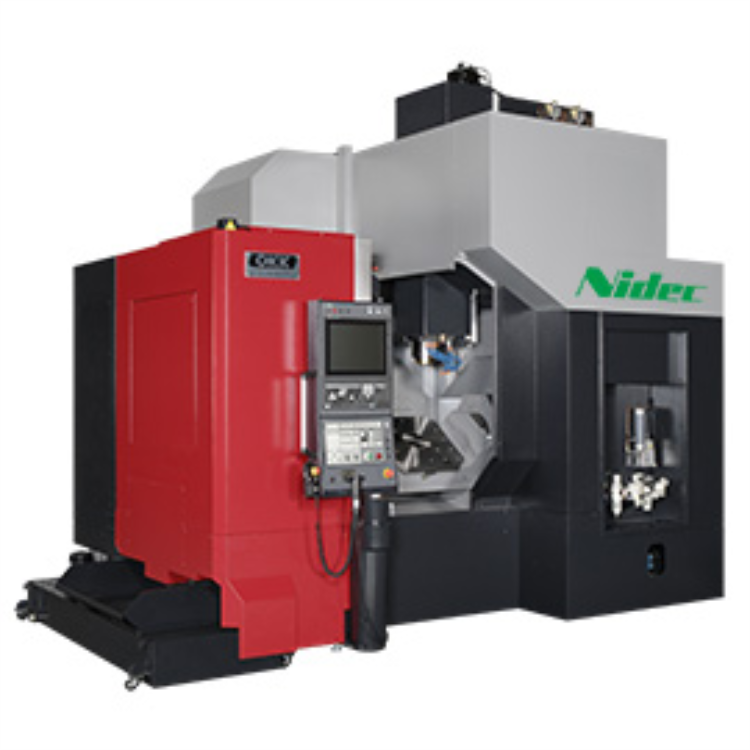

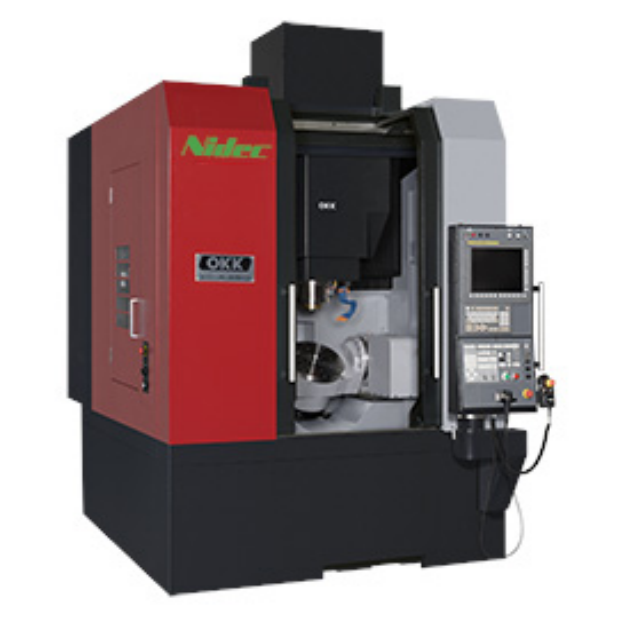

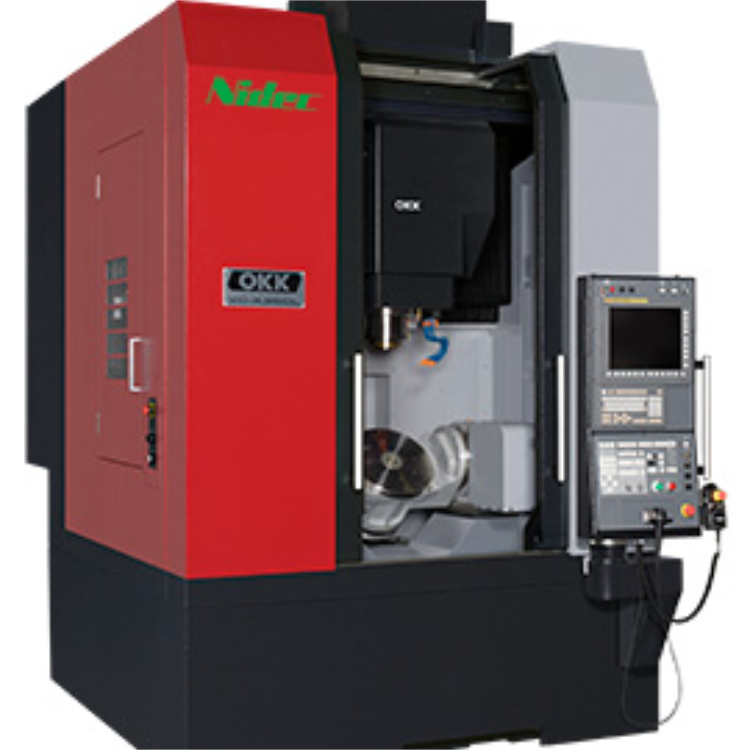

VC-X500 Series
Company: Nidec OKK Corporation
This machine tool showcases its capabilities in efficiently integrating and processing complex and variable molds and components!
Nidec OKK's technology is focused in this unique 5-axis model. Process integration shortens the delivery time of the VCX-350, while setting improvements enhance its accuracy and ease the operator's workload.
· Product Data
· Product Features
Product Data
Product Specifications
InX/Y/Z axis movement | 700/850/610 mm |
InA/C shaft movement | -120 to 30/360 degrees |
Table dimensions | 500mm |
Table Load Capacity | 500 kg |
Rapid mobility speed | Wheelbase:48m/min Z-axis: 32m/min |
Spindle Speed | 12,000 minutes - 1 (OP: 20,000 minutes - 1) |
Main shaft taper | Item Number 40 |
Number of Storage Tools | 40 （OP：60,80,120） |
Product Features
Main Structure
This product expands the processing area, enhancing space utilization.Y Axial displacement increased to240mm，z Axial displacement increased to150mmIn addition to expanding the processing area,VCX-500 The workpiece loading range has been increased compared to the existing models.60%。
Operability of the workbench
The operator of this product is at a distance from the center of the workbench. 620mmThe distance between the floor surface and the top of the workbench is1,080mmOperator distance from the spindle center120mmWith these exceptional accessibility,VCX-500 Enhanced work efficiency.
