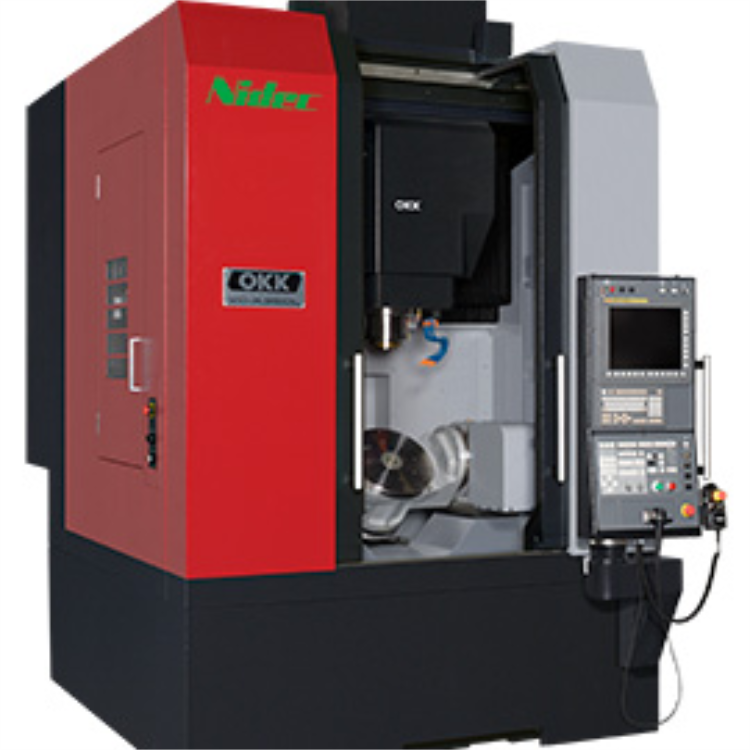

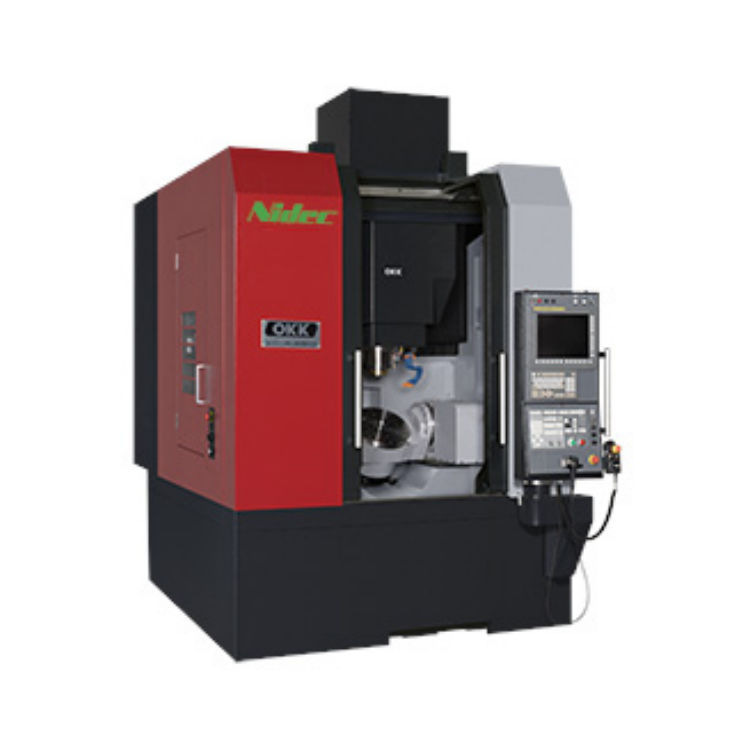

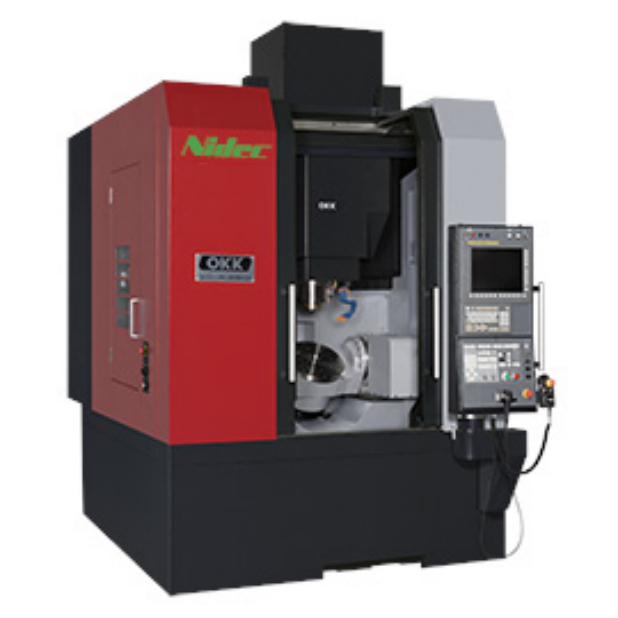

VC-X350 Series
Company: Nidec OKK Corporation
This machine tool showcases its prowess in efficiently integrating and processing complex and variable molds and components!
Nidec OKK's technology is concentrated in this unique 5-axis model. Process integration shortens the delivery time of the VCX-350, while setting improvements enhance its accuracy and reduce the operator's workload.
· Product Data
· Product Features
Product Data
Product Specifications
Please provide the Chinese content to be translated into American English.X/Y/Z axis movement | 600/430/460 mm |
InA/C shaft movement | -120 to 30/360 degrees |
Palette dimensions | φ350mm |
Loadable weight of the table | 200 kg |
Rapid mobility speed | Wheelbase:50m/min Z-axis: 36m/min |
Spindle Speed | 12000 minutes-1 (OP: 20000 minutes-1) |
Main shaft taper | Item Number 40 |
Number of storage tools available | 20 (Operations: 30, 40, 60, 80) |
Product Features
Main Structure
The table speed of the round table is twice as fast as the current model, with the rapid feed speed increased to50m/minEnhanced efficiency.
Linear roller guide tracks and ball screw
VCX-350 Utilizing a straight roller guide rail larger than the existing models, with a similar rigidity. Furthermore, by employing a larger diameter ball screw, the rigidity and cutting performance of this model have been enhanced.
Air Traffic Control
This model features a motor from Nippon Denso. OKK Developed well-known cam-type high-speed synchronous tool changer, featuring stable tool changing performance and excellent durability.
