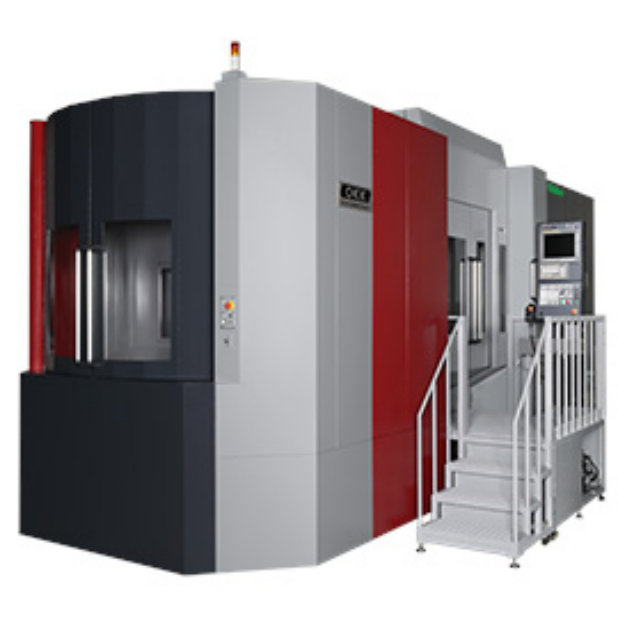

HM-X8000 Series
Company: Nidec OKK Corporation
This model excels in the efficient processing of complex shapes for automotive and aircraft components!
The main shaft head of this product features an inclined structure, allowing for high-precision machining without tilting heavy workpieces.
· Product Data
· Product Features
Product Data
Product Specifications
Please provide the Chinese content to be translated.X/Y/Z axis movement | 1300/1100/1550 mm |
Please provide the Chinese content you would like translated into American English.A/B axis travel | 40 to -110/360 degrees |
Palette size | 8 inches |
Table Load Capacity | 2,000 kg |
Rapid mobility speed | Wheelbase:48m/min |
Spindle Speed | 12,000 minutes - 1 |
Main shaft taper | Part Number 50 |
Number of Storage Tools | 60 （OP：40,80,116,120,176） |
Product Features
Structure
The body is made ofHMHigh-rigidity structure series, featuring a straight feeding mechanism with high-rigidity linear roller guide rail, ensuring high rigidity and precision.
Spindle
This machine features an inclined spindle head structure, offering improved accessibility and visual recognition compared to previous models, making it easier to operate. Additionally, with the spindle head inclined, the product can be processed while the spindle is either vertically or horizontally positioned, thereby expanding the range of processing layouts.
Ball screw
The machine tool's x Axlesy Axles feature a synchronous control drive system based on large double ball screw to suppress vibrations and enhance the quality of the machining unit. Additionally, all shafts come standard with hollow cooling ball functionality for ball screws and thermal displacement correction for ball screws (Nippon Denso).OKKDeveloped calibration feature), suppresses thermal displacement, enhances machining accuracy.
