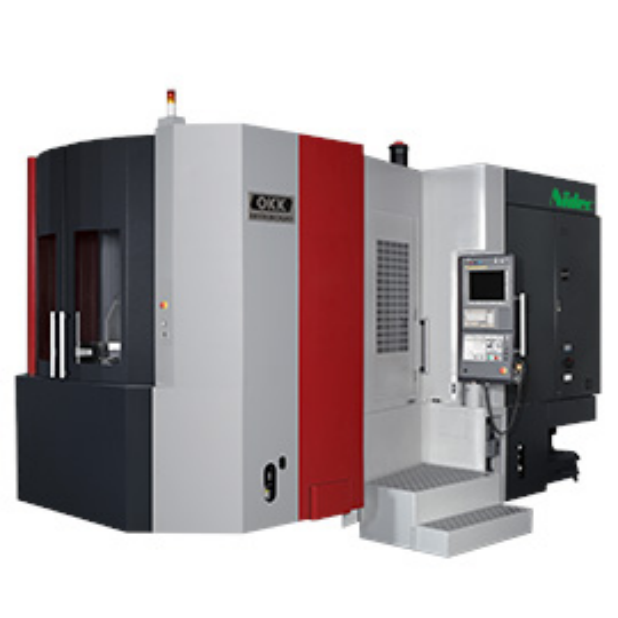

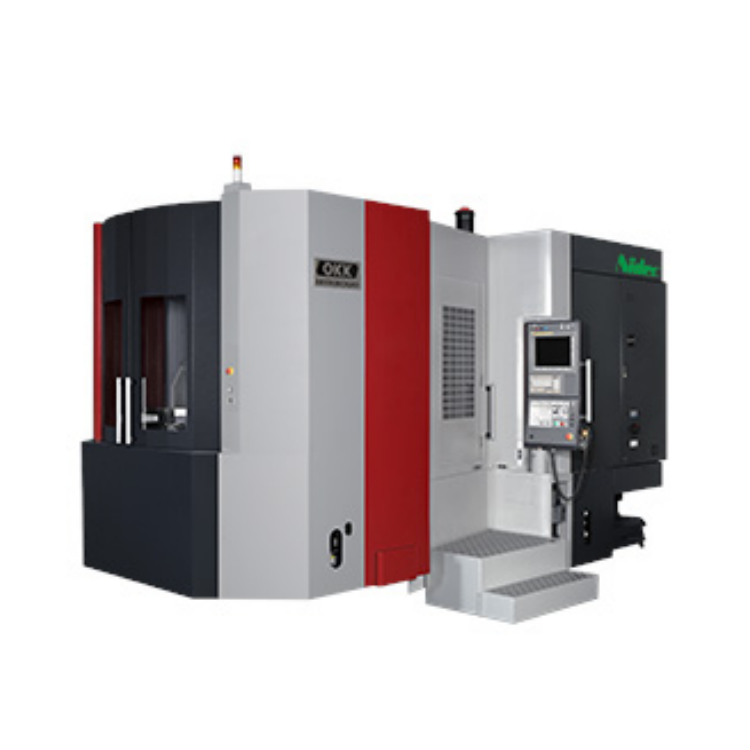

HM-X6000 Series
Company: Nidec OKK Corporation
This model excels in the efficient processing of complex shapes for automotive and aircraft parts!
The product features a high-rigidity horizontal machining center. The HM series combines 5-axis control technology cultivated during the production of vertical machining centers.
· Product Data
· Product Features
Product Data
Product Specifications
Please provide the Chinese content to be translated.X/Y/Z axis movement | 1050/900/820 mm |
InA/B axis travel | 20 to -110/360 degrees |
Palette dimensions | 600mm |
Loadable Weight of the Table | 650 kg |
Quick movement speed | Wheelbase:54m/min （OP：75m/min） |
Spindle Speed | 12,000 minutes - 1 (OP: 8,000 minutes - 1) |
Spindle cone | Part Number 50 |
Number of Storage Tools | 40 （OP：60,80,116,120,160,176,236） |
Product Features
Structure
The body is made ofHMSeries with high rigidity structure; featuring high rigidity linear roller guide rail in the straight feed mechanism, ensuring high rigidity and precision.
Table
This product features a drive system based on the ear shaft, a newly adopted rolling device replacing the traditional sliding system, and a gapless mechanism on the inclined shaft, offering enhanced partition accuracy.
