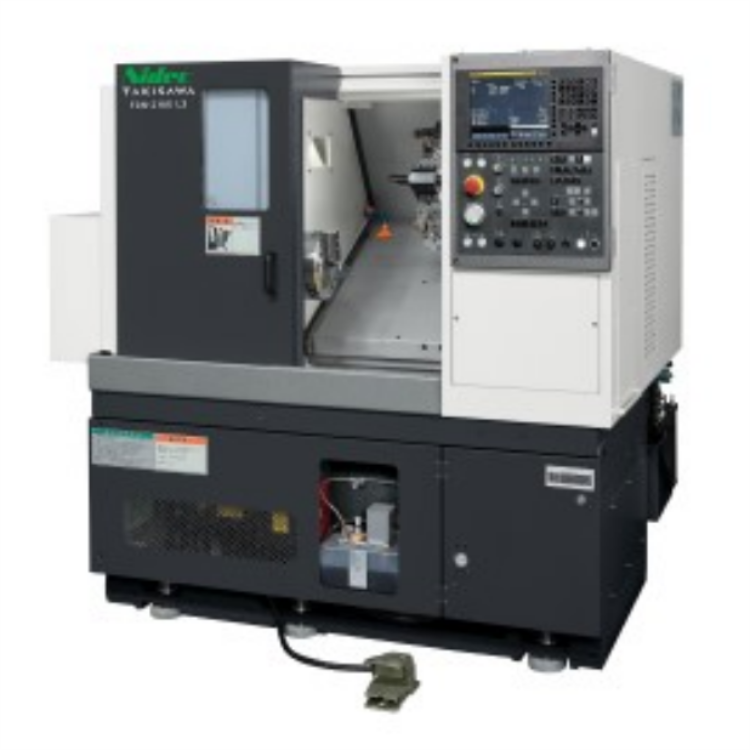

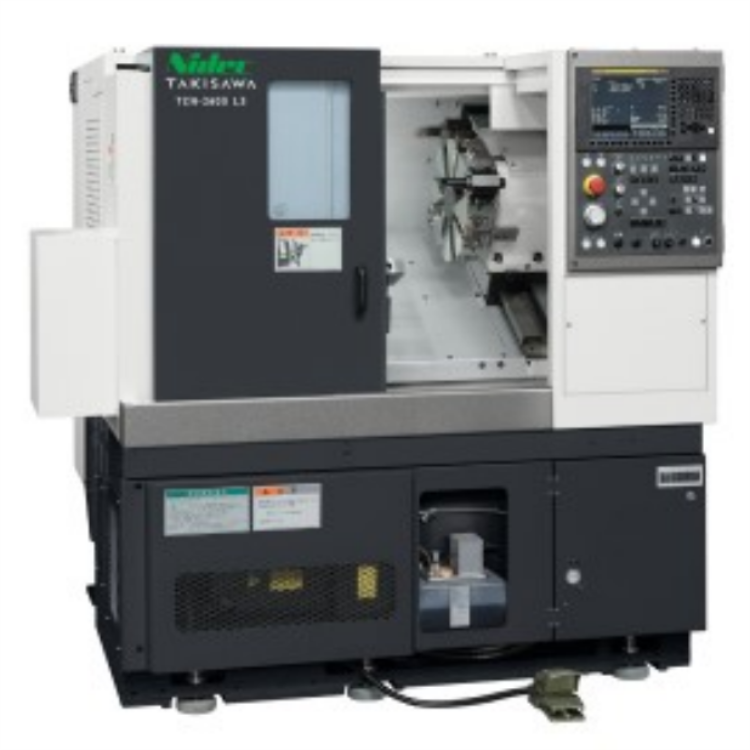

TCN-2100 Series
Takisawa Machine Tool Co., Ltd.
8 "The new model of TCN is globally chosen for its high cutting ability and versatility!"
All slides are made of high-rigidity, high-precision rectangular slides. / Through checking the main shaft motor and reduction ratio, the continuous rated torque has been improved compared to previous machines. / Available in three types: 8-spindle tool tower (standard), 12-spindle options, and 12-spindle milling tool tower. / Supports high-rigidity hydraulic tailstock (optional).
Product Data
Main Machine Specifications
Turn | |||||
TCN-2100 L3 | TCN-2100 L6 | ||||
Chuck Size | inches | 8 | 8 | ||
Dota-style | 8-Station Knife Tower | 12-Station Knife Tower | 8-Station Knife Tower | 12-Station Knife Tower | |
Z large turning diameter | millimeters | φ410 | φ340 | φ410 *2 | φ340 *2 |
Z-Axis Turning Length | millimeters | 300 | 600 | ||
Bar Stock Capacity *1 | millimeters | φ51 | φ51 | ||
Spindle Speed | min-1 | 3200 [OP. 5000] | 3200 [OP. 5000] | ||
Rotary Tool Speed | min-1 | - | - | ||
Rapid movement speed | Meters/minute | X ： 24 / Z ： 30 | X ： 24 / Z ： 30 | ||
Spindle Motor | kW | 11/9 | 11/9 | ||
Rotary Tool Motor | kW | - | - | ||
Machine Height | millimeters | 1700 | 1700 | ||
Required land area | millimeters | 1750x1532 year | 2095 x 1532 years | ||
Machine Weight | pounds | 2700 | 3200 | ||
Please note that the capacity of the bar stock depends on the type of chuck and cylinder.
2) Due to the specifications of L6, the maximum turning diameter may be restricted based on the workpiece size. Refer to the "Limit of Turning Range" in the product catalog.
Turning and Milling | |||
TCN-2100CM L3 | TCN-2100CM L6 | ||
Collet Size | inches | 8 | 8 |
Dota-style | Rotary Tool Types | Rotary Tool Types | |
Large diameter turning | millimeters | φ280 | φ280 |
Longitudinal turning length | millimeters | 208 | 508 |
Bar Stock Capacity *1 | millimeters | φ51 | φ51 |
Spindle Speed | min-1 | 3200 [OP. 5000] | 3200 [OP. 5000] |
Rotary Tool Speed | min-1 | 6000 | 6000 |
Rapid moving speed | Meters per minute | X ： 24 / Z ： 30 | X ： 24 / Z ： 30 |
Spindle Motor | kW | 11/9 | 11/9 |
Rotary Tool Motor | kW | 5.5/3.7 | 5.5/3.7 |
Machine Height | millimeters | 1700 | 1700 |
Required land area | millimeters | 1810 x 1532 years | 2277×1532 |
Machine Weight | kilogram | 2800 | 3300 |
1) Please note that the bar stock capacity depends on the type of chuck and cylinder.
2) Due to the specifications of L6, the maximum turning diameter may be limited by the workpiece size. Refer to the "Limit of Turning Radius" in the product catalog.
TCN-2100G We respond to the automatic request.
Achieve Compact Automation!
Loader target workpiece | ||
Outer Diameter | millimeters | φ160 |
Length | millimeters | 100 |
Weight | pounds | 3 （×2） |
Workpiece Feeder Specifications | ||
Pallet Quantity | 16 | |
Loading Capacity (per pallet) | pounds | 40 |
Part stacking height | millimeters | 450 |
