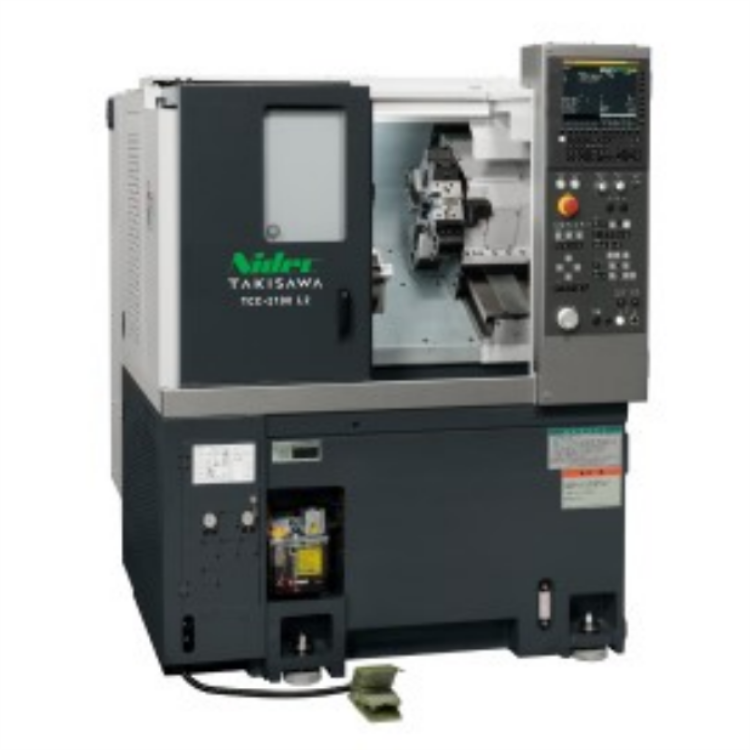

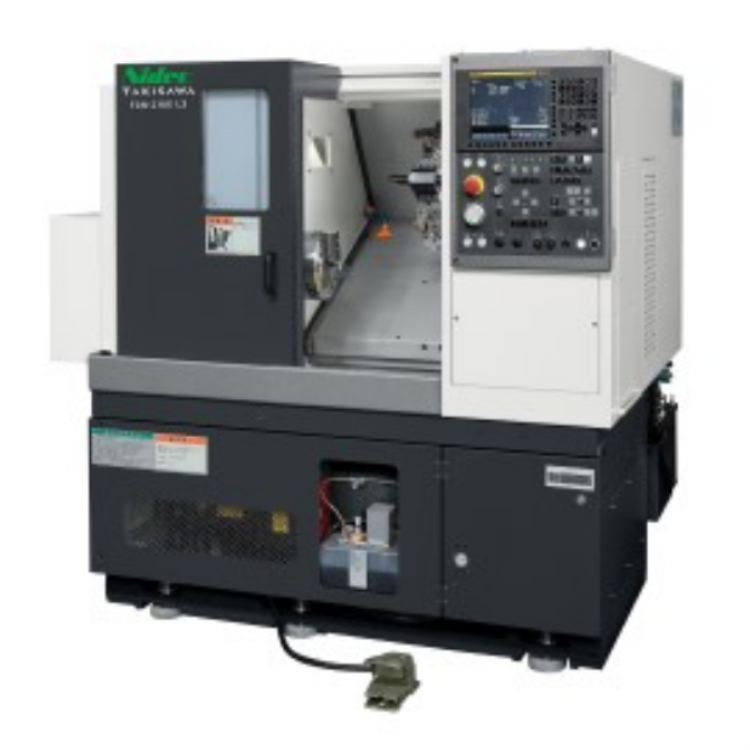

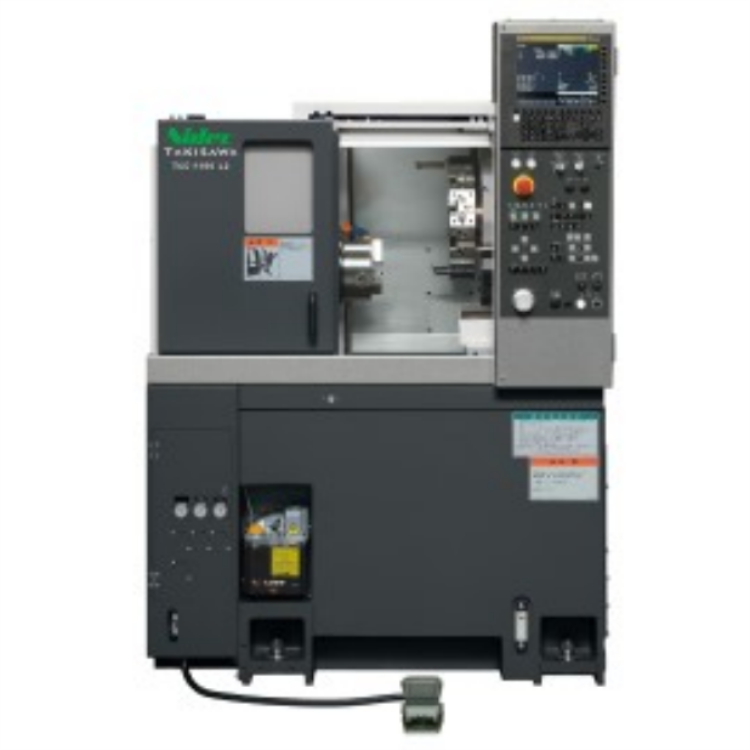

TCC-1100 Model
Takisawa Machine Tool Co., Ltd.
High production efficiency and quality are guaranteed at low costs!
Compared to our company's previous machine tools, the rapid feed rate is higher, thus shortening the processing time. / The lathe bed features a large-capacity coolant tank. / Due to minimized thermal deformation, the processing accuracy is improved. / All guideways are equipped with high-rigidity, high-precision rectangular guides. / The turret can be fitted with direct-mount 8-station and 12-station tool holders, capable of heavy-duty cutting. / Hydraulic tailstock (optional)
Flexible Layout
Machine Width: 1200mm / Footprint Area: 1.6m²
Main Machine Specifications
Chuck size | inches | 6 | |
Dota-style | 8-Station Tower (Direct Mount Type) | 12-Station Tower (Direct Mount Type) | |
Large diameter face milling | millimeters | φ220 | φ170 |
Longitudinal large lathe cutting | millimeters | 171 | |
Bar stock capacity*1 | millimeters | φ42 | |
Spindle Speed | min-1 | 4000 [OP. 5000， 6000] | |
Rapid movement speed | Rice/minute | X ： 24 / Z ： 30 | |
Spindle Motor15,30 min/continuous） | kW | 5.5/3.7 [Item 7.5/5.5] | |
Machine Height | millimeters | 1700 | |
Required land area | millimeters | $1,200 x $1,370 | |
Machine Weight | pounds | 1860 | |
Please note that the capacity of the billet depends on the type of chuck and cylinder.
TCC-1100G meets the operational rate.
Achieve Compact Automation!
The main width is only increased by 710mm (to 1170mm).
Loader target workpiece | ||
Outer Diameter | millimeters | φ100 |
Length | millimeters | 60 |
Weight | kilogram(s) | 0.7 |
Workpiece Feeder Specifications | ||
Pallet Quantity | 14 | |
Loading Capacity (per pallet) | pounds | 25 |
Part Pile Height | millimeters | 450 |
