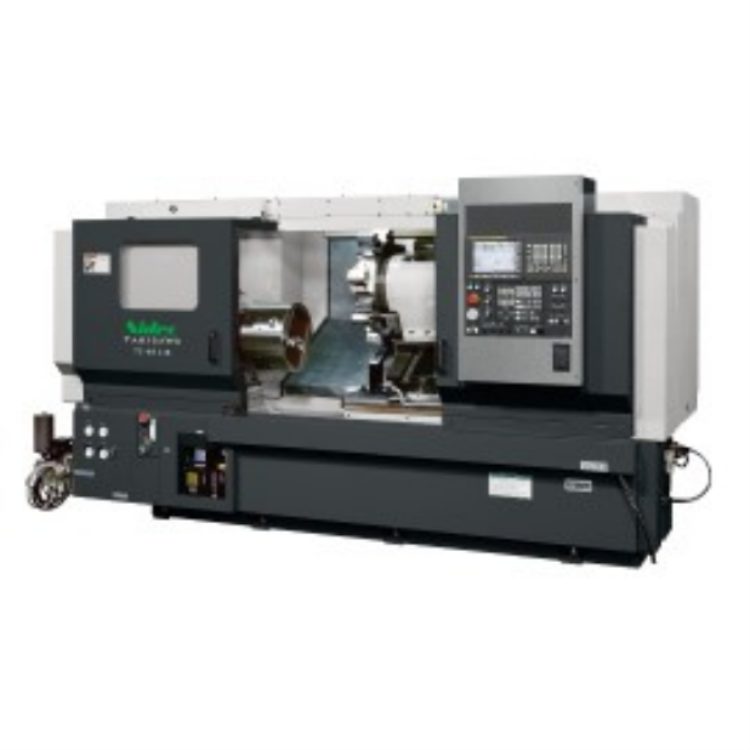

TC-40 Series
Company: Takisawa Machine Tool Co.， Ltd
12"/15" Chuck-Type CNC Lathe / Robust turret, tailstock, bed, and saddle structure for powerful and stable cutting. / High-rigidity tool turret / High-rigidity tailstock
· Product Data
Product Data
Main Machine Specifications
Turn | ||||
TC-40 L10 | ||||
Collet Size | inches | 12 | ||
Dota-style | 8-Station Tower | 10-Station Knife Tower | 12-Station Knife Tower | |
Z large turning diameter | millimeters | φ450 | φ420 | |
Longitudinal turning length | millimeters | 1020 | ||
Bar stock capacity *1 | millimeters | φ89 | ||
Spindle Speed | min-1 | 2500 | ||
Rapid movement speed | Rice/minute | X ： 12 / Z ： 16 | ||
Spindle Motor | kilowatt | 18.5/15 [Artwork 22/18.5, 26/22] | ||
Machine Height | millimeters | 1920 | ||
Required land area | millimeters | $2,100 x $3,500 | ||
Machine Weight | pounds | 7500 | ||
*1) Please note that the bar stock capacity depends on the type of collet and cylinder.
Turn | ||||
TC-40 L20 | ||||
Chuck size | inches | 12 | ||
Dota-style | 8-Station Knife Tower | 10-Station Knife Tower | 12-Station Tower | |
Z large turning diameter | millimeters | φ450 | φ420 | |
Z-axis turning length | millimeters | 2020 | ||
Bar stock capacity *1 | millimeters | φ89 | ||
Spindle Speed | min-1 | 2500 | ||
Rapid moving speed | Rice/minute | X ： 12 / Z ： 16 | ||
Spindle Motor | kW | 18.5/15 [Artwork 22/18.5, 26/22] | ||
Machine Height | millimeters | 2190 | ||
Required land area | millimeters | 2331×4940 | ||
Machine Weight | kilogram | 9000 | ||
*1) Please note that the bar capacity depends on the type of collet and cylinder.
(Bend) | ||||
TC-40 L30 | ||||
Chuck size | inch | 12 | ||
Dota-style | 8-Station Knife Tower | 10-Station Knife Tower | 12-Station Tower | |
Z large diameter turning | millimeters | φ450 | φ420 | |
Z-axis turning length | millimeters | 3020 | ||
Bar stock capacity *1 | millimeters | φ89 | ||
Spindle Speed | min-1 | 2500 | ||
Quick moving rate | Rice/minute | X ： 12 / Z ： 16 | ||
Spindle Motor | kW | 18.5/15 [Artwork 22/18.5, 26/22] | ||
Machine Height | millimeters | 2190 | ||
Required land area | millimeters | 2331×6265 | ||
Machine Weight | pounds | 10700 | ||
*1) Please note that the bar stock capacity depends on the type of chuck and cylinder.
Turn-milling and milling | |||||||
TC-40CM L10 | TC-40CM L20 | TC-40CM L30 | |||||
Chuck Size | inch | 12 | 12 | 12 | |||
Dota-style | Rotary Tool Types | Rotary Cutting Tool Types | Rotary Tool Types | Rotary Knife Types | Rotary Cutting Tool Types | Rotary Tool Types | |
Large diameter turning | millimeters | φ420 | φ420 | φ420 | |||
Z-axis turning length | millimeters | 1020 | 2020 | 3020 | |||
Bar stock capacity *1 | millimeters | φ89 | φ89 | φ89 | |||
Spindle Speed | min-1 | 2500 | 2500 | 2500 | |||
Rotary Tool Speed | min-1 | 3000 | 3000 | 3000 | |||
Rapid movement speed | Rice/minute | X ： 12 / Z ： 16 | X ： 12 / Z ： 16 | X ： 12 / Z ： 16 | |||
Spindle Motor | kilowatt | 18.5/15 [Artwork 22/18.5, 26/22] | 18.5/15 [Artwork 22/18.5, 26/22] | 18.5/15 [Artwork 22/18.5, 26/22] | |||
Rotary Tool Motor | kilowatt | 5.5/3.7 | 5.5/3.7 | 5.5/3.7 | |||
Machine Height | millimeters | 1920 | 2190 | 2190 | |||
Required land area | millimeters | $2,100 x $3,500 | 2331×4940 | 2331×6265 | |||
Machine Weight | pounds | 7500 | 9000 | 10700 | |||
*1) Please note that the bar capacity depends on the type of chuck and cylinder.
