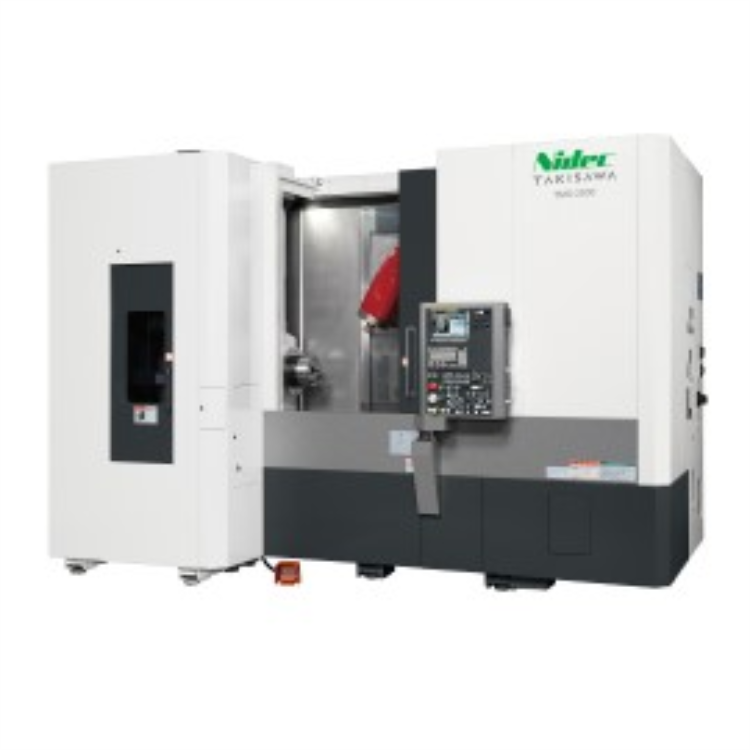

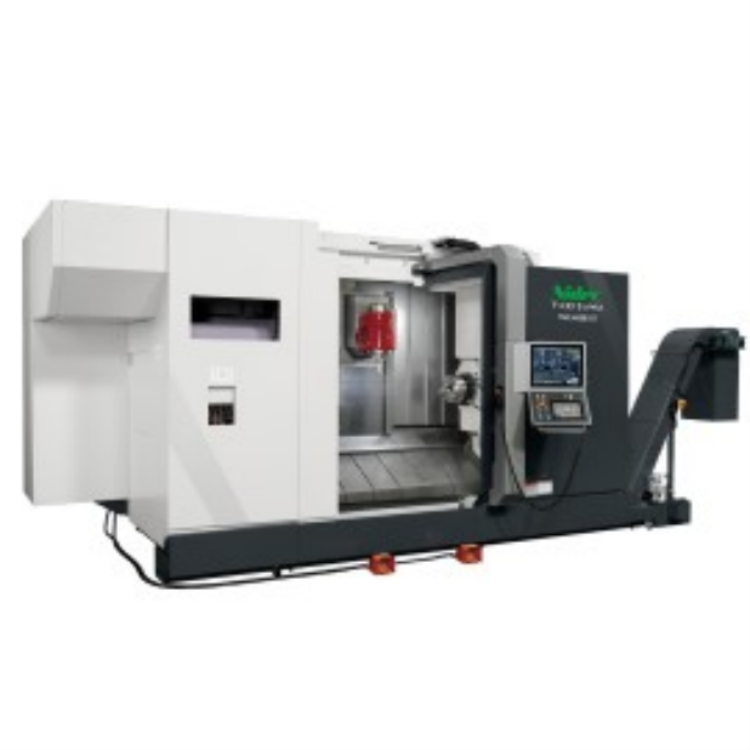

TMX-2000 Model
Company: Takisawa Machine Tool Co.， Ltd
Ensure the operability and safety of the main shaft travel. Expand the range of targeted workpieces!
Through Available for large axis travel of 640mm on the X-axis, 230mm on the Y-axis, and 690mm on the Z-axis. Due to the extensive travel, only one-time clamping of the C-axis (spindle) is required to achieve high-precision machining such as milling and face boring.
By integrating the machinable range and reducing the number of machining tools, efficiency is improved. High-quality turning.
Tool spindle indexing function （B-axis) Expanded the machining range, easily accommodating various workpieces. The tool spindle can achieve high precision indexing every 1° ±130°, allowing for the integration of different processes through a single tool. The lathe tool is mounted and fixed on the tool spindle by positioning the high precision indexing coupling of the spindle, enabling external diameter turning with a multi-functional tool.
Product Data
Main Machine Specifications
TMX-2000 model | TMX-2000S Series | ||
Right shaft inventory | - | ● | |
Tailstock （NC Servo Type | ● | - | |
Collet size | inches | 8 | 8+8 |
Dota-style | With ATC Tool Spindle | With ATC Tool Spindle | |
Z large diameter turning | millimeters | φ500 | |
Z-axis turning length *1 | millimeters | 610 | |
Bar Stock Capacity (Left Spindle) *2 | millimeters | φ65 | |
Bar Stock Capacity (Right Spindle) *2 | millimeters | - | φ51 |
B-axis swing range | Degree | 230 （±115） | |
Left spindle speed | min-1 | 5000 | 5000 |
Right spindle speed | min-1 | - | 5000 |
Tool spindle speed | min-1 | 12000 | |
ATC Tool Storage Capacity | 40 [OP. 80] | ||
Rapid moving speed | Rice/minute | X ： 40 / Z ： 40 / Y ： 40 / A ： 20 | |
Left spindle motor30 minutes (continuous) | kW | 15/11 | |
Right Mainshaft Motor30 minutes/continuous) | kW | - | 11/7.5 |
Tool Spindle Motor （S3 25% (Continuous) | kilowatt | 11/7.5 | |
Machine Height | millimeters | 2783 | |
Required land area | millimeters | 4150×2923 | |
Machine Weight | pounds | 13700 | 14000 |
● Standard - N/A
*1) The maximum machining length varies depending on the chuck type. When the machining length is 435 mm or more, the face machining range is limited.
*2) Please note that the billet capacity depends on the type of chuck and cylinder.
