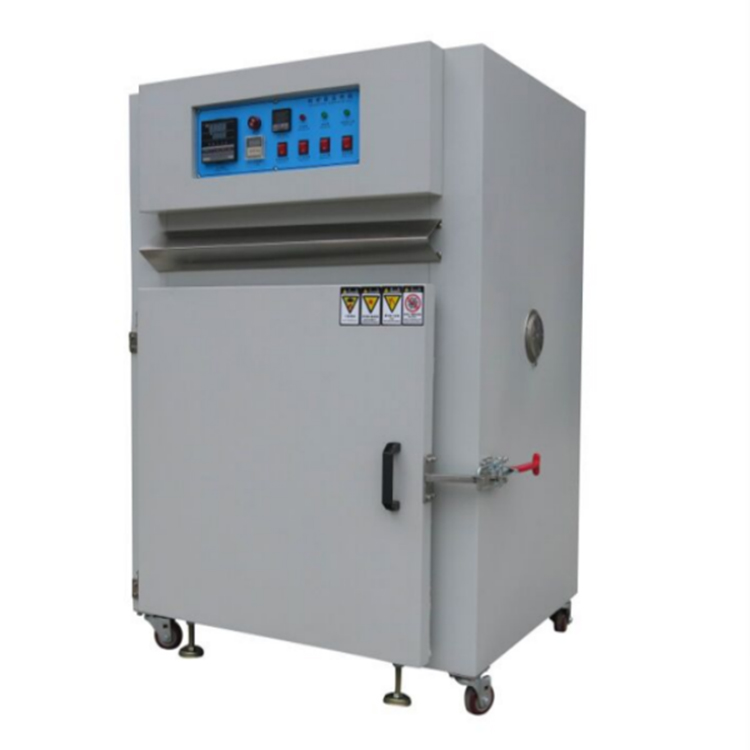

High-Temperature Test Chamber Product Application Scope: Industries

Guangdong Hongjun Instrument Equipment Co., Ltd.'s HJ/CQ series testing equipment is used for testing the heat, cold, high-temperature, and moisture resistance of various products and materials. Suitable for factories producing electronics, silicon chips, batteries, photovoltaic components, electrical appliances, food, vehicles, metals, chemicals, laptops, LEDs, 5G, mobile phones, communications, aerospace, aviation, semiconductors, chips, diodes, transistors, auto parts, new energy, lithium batteries, building materials, etc., as well as for production workshops, laboratories, and research institutions. It is used to test finished and semi-finished products for temperature and humidity environmental tests.

II. High-Temperature Test Chamber Specifications:

1. Internal dimensions: 600mm (width) × 600mm (depth) × 600mm (height); (Custom made for non-standard specifications!)

2. External dimensions approx.: 900 (width) × 830 (depth) × 1520 (height) mm; actual item measurement applies.

3. Case Structure: Integrated design, vacuum pump located at the bottom of the machine.

4. Interlayer: Internally divided into two layers, with two stainless steel mesh plates, which can be moved and removed.

5. Panel Installation: The control panel is installed beneath the machine.

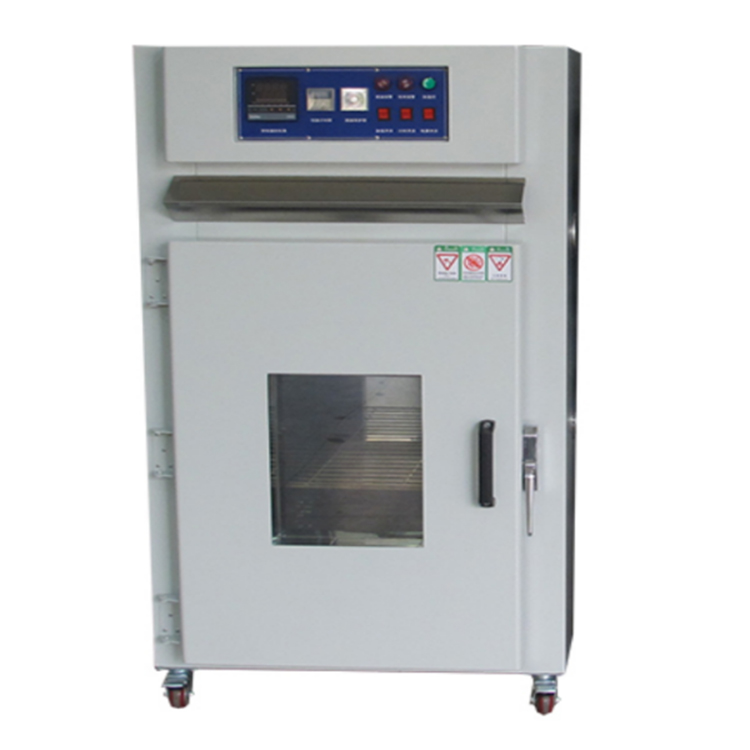

6. Door Opening: Single, opens from right to left; door features a viewable window, W300 x H350mm.

7. The inner material is made of stainless steel plate, thickness 5.0mm; reinforced inner box treatment, vacuum-sealed without deformation.

8. Material: Cold-rolled steel plate, thickness 1.2mm, powder-coated finish (Mi white)

9. Insulation material: high-temperature-resistant rock wool, excellent thermal insulation performance.

10. Equipped with brake casters for easy maneuverability.

Section 3: High-Temperature Test Chamber Temperature Control System

1. The temperature controller is a digital display gauge, featuring single-point temperature control, automatic calculation, simultaneous display of PV/SV, and key setting.

2. Timer Function: Equipped with an Omron timer, heating and vacuum extraction will stop upon completion, along with an alarm alert.

3. Temperature-sensing wire, Type K.

4. Output: 3-32V

5. The current controller is a PID + SSR solid-state relay.

6. Heating Method: Utilizes three-sided radiant heating (left, right, and bottom sides).

7. Heat materials include: high-temperature stainless steel heating tubes.

8. Temperature Range: room temperature to +250℃ (adjustable and controllable within the range).

9. Control Accuracy: ±0.5℃

10. Display Accuracy: 0.1℃

11. Internal Temperature Deviation: ±5.0℃ (no vacuum, unloaded test)

4. High-Temperature Test Chamber Vacuum System:

1. Door sealing method: The machine door uses a high-density silicone sealing strip for sealing.

2. Vacuum Display Method: Vacuum gauge for vacuum level indication.

3. The vacuum control method is: automatic control. The vacuum pump stops working when the vacuum reaches the set value, automatically replenishes vacuum when it falls below the upper limit, and operates in this cycle to maintain a constant vacuum state.

4. Pressure relief method: After testing, manually initiate the pressure relief function for pressure release, controlled by an electromagnetic valve.

5. Machine vacuum range: ≤1.0×10^5 ~ 1.0×10^1 (Pa), [i.e., 10 Pa]

6. Vacuum Preservation Pressure Leak Rate: 0.01 Pa/L per second

7. Vacuum Tube: Made with stainless steel vacuum corrugated tube.

8. Vacuum Sensor: Utilizing KF16 vacuum resistance gauge tube.

9. Vacuum Setting Method: The vacuum level can be freely set according to requirements, such as for a vacuum of (100Pa), the gauge setting is (1.0 E 2), for a vacuum of (10Pa), the gauge setting is (1.0 E 1), and so on. The vacuum and stop vacuum processes are controlled using upper and lower limits.

10. Vacuum Control Valve: Equipped with KF40 connection, high vacuum with pressure difference valve for filling gas.

11. Vacuum Pump Configuration: Double-stage direct-connected oil pump used.

12. Vacuum Degree Display: Utilizes a resistance vacuum gauge to display the vacuum level, with the display in scientific notation.

V. Nitrogen Filling Device for High-Temperature Test Chamber

1. Pressure Regulator: Controls nitrogen pressure, typically set to 2-3 kg under normal operation.

Flowmeter: Controls the amount of nitrogen entering the box, ranging from 10L/min to 60L/min.

3. Nitrogen Filling Pipeline: Nitrogen pipeline enters just behind the box, with an external 2-meter long 8mm air tube.

4. Nitrogen filling port: One nitrogen port fills into the box.

5. Nitrogen Source: The buyer's company will provide the nitrogen source.

Six, High-Temperature Test Chamber Power Rating:

Voltage: AC 380V/50Hz, three-phase five-wire system

2. Current: 14A

3. Power: 9.5 kW

Section 7: High-Temperature Test Chamber Protection System

1. Over-temperature Protection System: Automatically stops heating and power supply when the temperature exceeds the set over-temperature protection limit, ensuring the safety of both the product and the machine.

2. Circuit Protection Systems: Grounding protection, quick-disconnect insurance, phase loss protection, overload protection, circuit breakers, etc.
