CL-SD-NW-（01-12）

Product Description

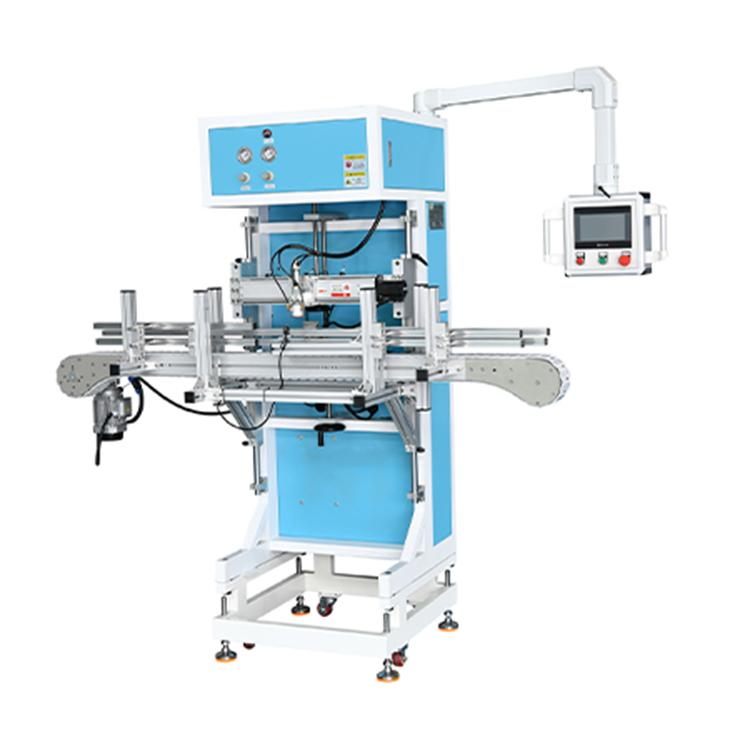

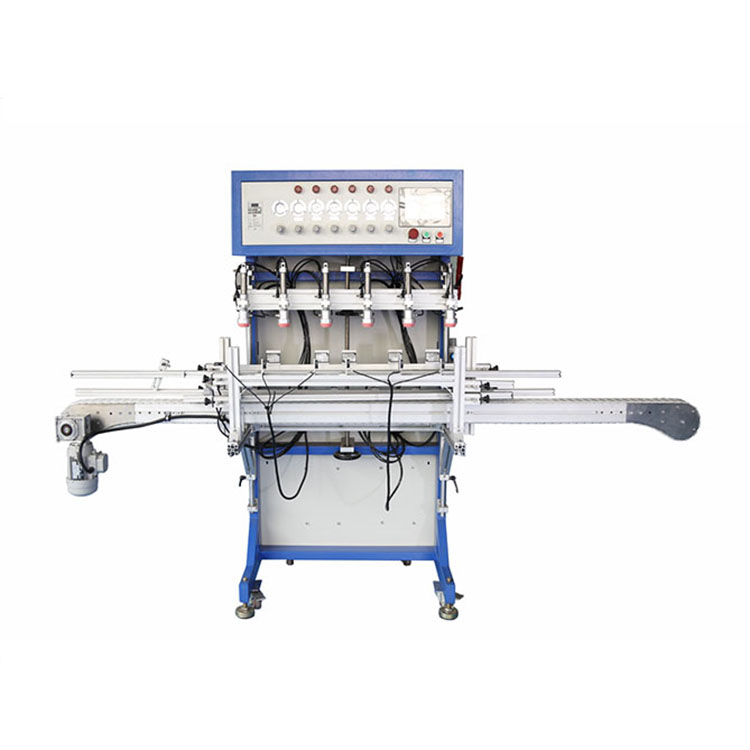

Leak Detection Machine Series

CL-SD-□□-□□

Product Line: SD

Product Function: NW (Not Weighted)

Product Models: 01/02/04/06/08/10/12

Core Features

Achieve airtightness testing for containers under inspection according to specifications. After leak testing, separate the qualified products from the non-qualified ones. Non-qualified bottles will trigger an alarm at the corresponding station during testing and be removed to be separated from the qualified bottles.

Key Product Features

1. Utilizing the U.S. testing system, each workstation features a dual independent leak detection system, offering high precision and reliability, with accuracy up to 0.01.

2. Storage Function: The system can store parameters for 6 product groups (memory can be customized for special requirements), record the total number of inspections and the number of leaks, and can set a total inspection limit. The machine will automatically stop leak detection when it reaches the set number of inspections.

3. Conveyor Belt: Equipped with Danfoss variable-frequency drive (power 200W), capable of independent leak detection and can be integrated into the production line for automated leak detection; compatible with blowing machines, filling machines, labeling machines, etc. for full automatic online leak detection; automatic reporting and belt adjustment for leaky bottles; features dual high-alarm and automatic rejection functions.

4. Stability Testing: Utilizing German Siemens PLC control, American Motorola detection panels, and FESTO (Germany) solenoid valves for control; stability exceeds 100,000 hours.

5. Machine Durability: The machine's cylinders are equipped with Aircelle cylinders and controlled by imported solenoid valve sets; the gas source treatment features two Aircelle oil mist maintenance units, which remove impurities and moisture from the gas. This not only meets the environmental protection and GMP regulatory requirements of the food industry, but also ensures the machine's longevity and extends its service life.

6. Easy Machine Operation: Equipped with a 7-inch Weilin touch screen from Taiwan, featuring a user-friendly interface, the display is large and clear, making it even easier to operate.

7. Machine Sealing: Utilizes moldable silicone sealing at the bottle mouth, durable and not easily damaged, not classified as fragile items.

8. No interference, suitable for irregular bottles, easy switching with adjustable convenience.

Product Application Scenarios

Plastic bottles, iron drums/containers

Product Size Parameters ★ Customizable Unit: MM

Product Function Parameters: ◉Yes - No

Product Selection and Technical Specifications Sheet

Core component brand
