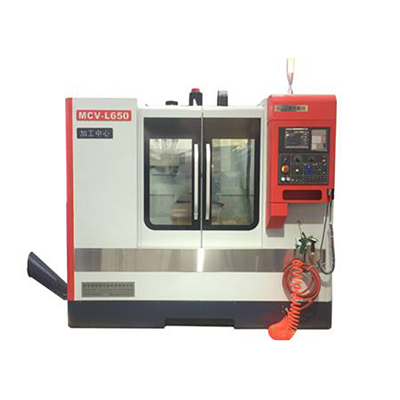

The MCV-L650 Machining Center/XK-L650 CNC Milling Machine is a new generation of high-precision, high-rigidity, and high-reliability production-type CNC machine tool, co-produced by our company and the machine tool manufacturer. The main machine structure is rational and reliable, with exquisite craftsmanship.
Automatically performs various operations such as drilling, milling, boring, tapping, and thread cutting, supports CAD/CAM functions, and completes the processing of complex plate-like and box-like parts, especially molds.
Standard Configuration
Original, High-Torque Spindle Head with Automatic Lubrication System
Numerical Control System Quartz Worklight
Communication Servo Spindle Motor Cooling System
Three-axis AC Servo Motor with Suspended Electronic Handwheel
16-slot tool magazine, fully enclosed guard shield
Pneumatic Knife Release Device & Tool Box & Tools
Three-axis Ball Screw Operation Manual and Complete Set of Documents
Key Technical Parameters
| Specs/Model | MCV-L650 Vertical Machining Center | XK-L650 CNC Milling Machine | |
| Spindle | RPM | 60—8000rpm | |
| Spindle Taper | BT40 | ||
| Spindle Motor | 5.5 kW AC Servo Motor | 5.5 kW AC Servo Motor/Variable Frequency Drive Motor, Your Choice | |
| Spindle center to column slide surface | 550mm | ||
| Spindle nose to worktable surface | 80—580mm | ||
| Workbench | Dimensions (Length x Width) | 800×420mm | |
| High load | 500kgs | ||
| T-slot size/quantity | 18H8x3 | ||
| Three-axis travel | X, Y, Z Axes | 600x420x550mm | |
| Feeding Rate | X/Y/Z axis rapid displacement | 21000mm/min | |
| Cutting Feed Rate | 1—8000mm/min | ||
| Location Accuracy | Positioning Accuracy | 0.008mm | |
| Repeatability accuracy | 0.005mm | ||
| Automatic Tool Changer System | Tool Magazine/Tool Specifications | Buckler-Type Tool Changer / BT-40 | N/A |
| Total number of knives | 16 | No content provided. | |
| Large knife diameter | φ100mm | ||
| Change Tool Time/Tool Change Method | 7 sec / quick changeover for any blade | N/A | |
| Cutting Cooling System | Cooling Motor | 125W | |
| Pump Discharge Volume | 50L/min | ||
| Chip eliminator | Automatic Spiral Chip Conveyor | ||
| Dimensions | Dimensions: Length x Width x Height | 2300×2500×2200mm | |
Key Features and Performance
1. The optical machine is produced by the enterprise. Castings use resin sand molding, with aging treatment for stable performance and good rigidity.
2. The three-axis features imported linear guide rails, enhancing the friction performance of the guides.
3. Three-axis stainless steel guide rail protective cover.
4. The spindle is equipped with high-precision NSK spindle bearings and imported lubricating grease, offering high speed, precision, and long lifespan.
5. Original main shaft components, AC servo spindle motor, capable of rigid tapping.
6. Gas-Producing Liquid Pressure Boost Cylinder
7. Triple-axis high-precision ball screw drive and locking nut.
8. All three axes are checked and compensated with a laser interferometer prior to shipment.
9. Synchronous齿形皮带 and synchronous belt pulleys with arc-toothed shafts.
10. Automatic centralized lubrication system, pneumatic system, with cleaning air gun.
11. Original 16-slot tool magazine, reliable and fast.
12. Portable cooling box, automatic spiral chip conveyor
13. Machining equipment's precision meets all relevant standards.
14. Full-enclosed protective hood to prevent chip splatter; dual-opening, viewable sliding doors for chip protection; the arched sliding doors move easily and flexibly.
15. Large electrical cabinet with excellent heat dissipation and dust prevention. Equipped with electrical components and a suspended electronic handwheel.
16. Offer compatible programming simulation software, with programs transmitted directly to the machine tool via RS232 interface for processing.
Numerical Control System Configuration
Configurable Systems: Siemens, Fanuc, Mitsubishi,华中, Guangshu, KND, Huaxing
802C/828D/810D/840D Oi mate/0i
