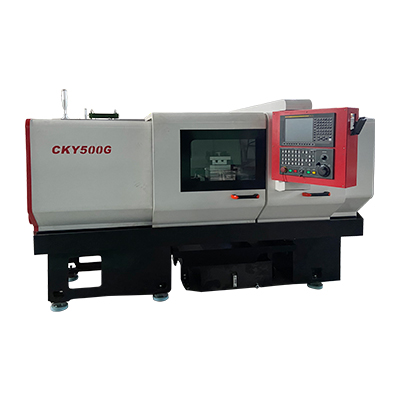

The CKY500G CNC lathe boasts high precision, rigidity, and reliability, produced in collaboration with domestic machine tool companies. This machine is feature-rich, performs well, has an optimized structure, and is meticulously crafted.

The CKY500G can automatically complete processing of inner and outer circles, end faces, steps, slots, conical surfaces, spherical surfaces, non-spherical surfaces, and threads, making it an ideal production equipment for processing various multi-specification complex parts.

The machine tool comes with programming simulation software, making it an essential equipment for schools' CNC teaching and practical training, fulfilling the needs of integrating production, study, and research, as well as the combination of engineering and technology.

1. Key Performance and Features

Yunnan Optics, high quality, precise, with resin sand precision casting.

Bed rail with ultra-audio quenching, high hardness, thick quenching layer, and good rigidity. Widened track. Both base and bed body are made of resin sand casting and aging treatment.

Spindle with three-point support, rigid; uses foreign ball bearings for high-speed, high-precision, and long life; spindle variable speed from low to high, with stepless speed adjustment within the gear range, ensuring high torque at low speeds and constant power at high speeds; the exposed gearshift handle is easy to use.

Utilizing high-precision double nut pre-tension ball screw drive, both the X and Z axis screws feature two-point support structures.

The交流servo motor and screw are connected seamlessly with an elastic coupling, eliminating transmission errors and providing semi-closed-loop transmission accuracy.

The three-jaw chuck features a high-stiffness connection structure, produced by the domestic Huhhot Machine Tool Accessories Co., Ltd. (Global brand).

Changzhou Yaxing 4-axis electric knife holder, stable and reliable.

Full-enclosed housing, dual-door structure, easy to operate, dust-proof; sliding door with a full-length linear guide rail, flexible and easy; main shaft housing equipped with hinges for easy maintenance; aesthetically pleasing appearance.

The CNC system box is rotatable for more user-friendly operation.

Centralized lubrication system; machine tools can centrally lubricate all sliding and rolling components.

Programmable control automatic cooling unit with a flexible spray hose that can be rotated freely for optimal cooling effect.

Before shipment, the machine tool is inspected using a foreign RENISHOW laser interferometer, and accordingly, compensation is made for the lead screw pitch error and backlash, ensuring the machine tool has a significant precision reserve upon delivery.
