Key Features and Configurations

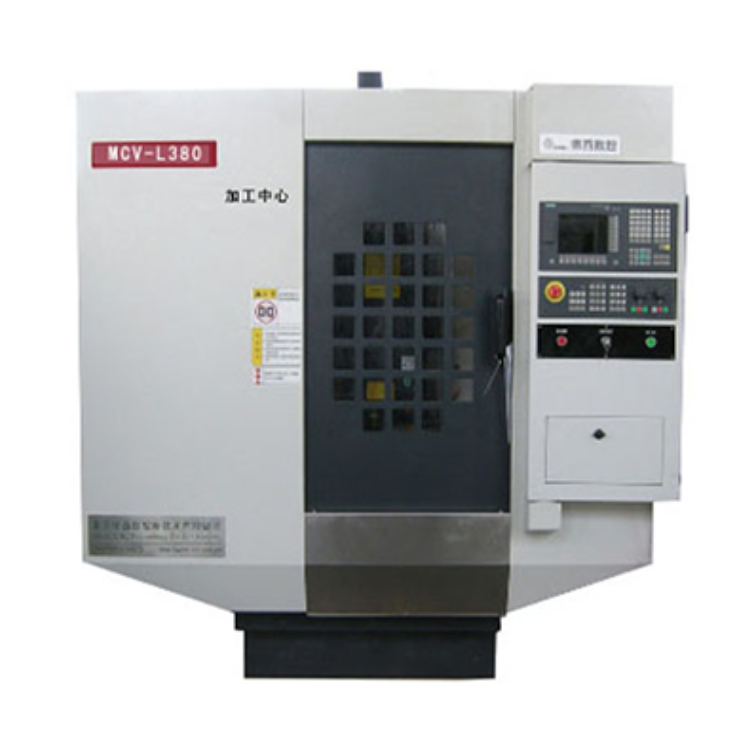

Model Type | Unit | MCV-L380 | ||
Mechanical Structure | Workbench dimensions | mm | 540×270 | |
X/Y axis travel | mm | 380x300 | ||
Z-axis travel | mm | 400 | ||
Spindle to table distance | mm | 50-450 | ||
Spindle to column distance | mm | 350 | ||
Workbench High Load Capacity | kg | 180 | ||
Workbench T-slot | 3-12H8-80 | |||
Machine tool weight | kg | 1200 | ||
外形尺寸: External Dimensions | mm | 60-10000 | ||
Spindle Configuration | Spindle Speed | rpm | 50-8000 | |
Spindle Taper | BT30 | |||
Spindle Power | KW | 3.7 | ||
Main shaft oil cooler | No content provided. | |||
Servo Drive | Fast Move Speed X/Y/Z | m/min | 24 | |
Feeding speed | mm/min | 1-10000 | ||
Positioning Accuracy | mm | 0.01 | ||
Repeatability positioning accuracy | mm | 0.006 | ||
Auxiliary Equipment | Tool Magazine | Form | Bowl hat style | |
Knife position | 12 | |||
Cutting Coolant | Three-nozzle setup (compressed air, cutting fluid x2) | |||
Lubrication System | Automatic centralized lubrication | |||
Deburring Tool | Standard Spiral Chip Conveyor, Optional Chain Plate Chip Conveyor | |||
