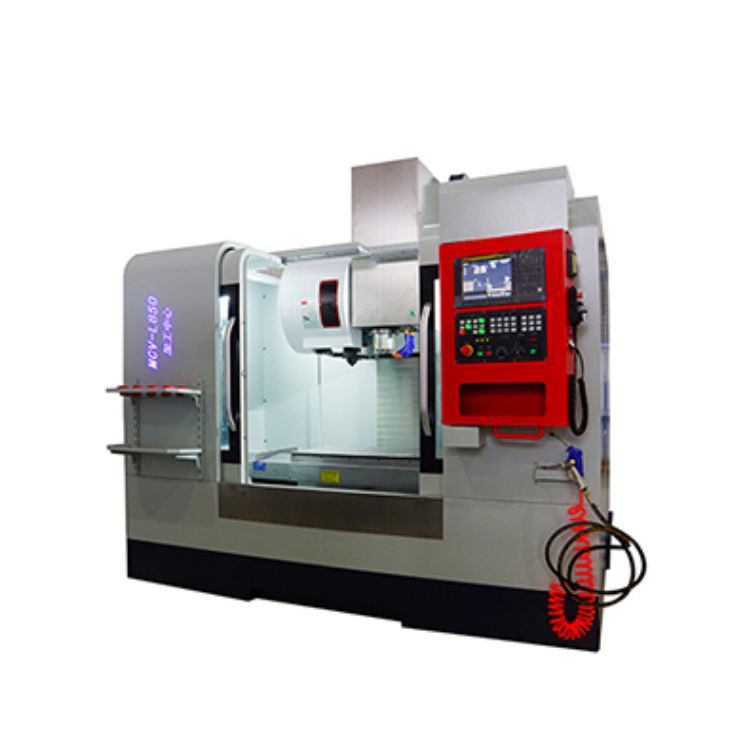

The MCV850 machining center/XK850 CNC milling machine is a new generation of high-precision, high-efficiency, reliable, and cost-effective production CNC machine tool, jointly produced by our company and machine tool manufacturers. The main structure is rational and reliable, with fine craftsmanship. It can automatically perform various processes such as drilling, milling, boring, tapping, and threading. It supports CAD/CAM functions and is capable of processing complex plate-like, box-like parts, especially molds.
Select items
1. CNC Rotary Table (4th Axis)
2. Drum-Type Tool Magazine (24 Positions with Robot Arm)
3. Linear Rails
Numerical Control System Configuration
| Configurable System | Siemens | Fanuc | Mitsubishi | Central China | Guangshu | KND | Huaxing |
| 802C/828D/810D/840D | Oi mate/0i |
Primary Technical Specifications
| Specs | MCV850 Vertical Machining Center | XK850 CNC Milling Machine | |
| Spindle | RPM | 40—8000rpm（10000rpm、12000rpm） | |
| Spindle Taper | BT40 | ||
| Spindle Motor | 7.5 Kw, AC Servo Motor | 7.5 Kw AC Servo Motor/Variable Frequency Drive Motor Available | |
| Spindle center to column slide surface | 620mm | ||
| Spindle nose to worktable surface | 150—750mm | ||
| Workbench | Dimensions (Length x Width) | 1050×500mm | |
| High load | 600kgs | ||
| T-slot size/quantity | 18H8 x5 | ||
| Three-axis stroke | XYZ | 800x500x600mm | |
| Feed Rate | X/Y/Z axis rapid traverse speed | 18000mm/min（42000mm/min） | |
| Cutting Feed Rate | 1—10000mm/min | ||
| Automatic Tool Changer System | Tool magazine | Buckler-type刀库 / Disc-type | No content provided. |
| Total number of knives | 16、24、32 | N/A | |
| Large Knife Diameter | φ100mm | ||
| Change Blade Time | ７ / 2.9 sec | No content provided. | |
| Position Accuracy | Positioning Accuracy | ±0.005mm | |
| Repetitive Positioning Accuracy | ±0.003mm | ||
| Cutting Cooling System | Pump Discharge Volume | 100L/min | |
| Cutting Water Tank Capacity | 120L | ||
| Packaging Dimensions | Dimensions: Length x Width x Height mm | 2800×2500×2800 | |
| Machine Weight | Net Weight | 5800kg | 5500kg |
Key Features and Performance
Castings with resin sand molding, aging treatment, stable performance, and good rigidity.
2. Three-axis rectangular guide rail, hardened guide rail with imported plastic-coated sliding plate, enhancing the guide rail's friction performance.
3. Features high-precision NSK spindle bearings, imported lubricant, with high speed, high precision, and long service life.
4. Original main shaft components, AC servo main shaft motor, capable of rigid tapping
5. Butterfly spring clamp for cutting tools, pneumatic-hydraulic pressure cylinder for releasing blade
6. Triple-axis C3 precision double-nut pre-tensioned ball screw, supported by P4 grade 60° ball screw bearings and pre-stretched. Imported BK3 type bellows elastic coupling.
7. Synchronous Belt with Hub Arc Tooth Profile and Synchronous Belt Wheel
8. Automatic centralized lubrication system, pneumatic system
9. 16-position tool magazine, reliable and fast (MCV850).
10. Stainless Steel Telescopic Guide Rail Protective Cover
11. Full-enclosed protective hood to prevent chips from flying out, double-swing visible door for chip protection, and the arched door moves easily and flexibly.
12. Rear removable cooling box with filtered coolant, easy chip ejection.
13. Large electrical cabinet with excellent heat dissipation and dust prevention. Equipped with brand-name electrical components such as Siemens AC contactors, Weidmüller terminal blocks, etc., paired with a suspended electronic handwheel.
14. The pneumatic system features functions such as blowing air to the spindle, pressure boosting cylinder to release tools, tool library shifting, and cleaning air gun.
15. All precision aspects of the machine tools comply with relevant standards.
16. Machine tools feature three-axis laser interferometry measurements and screw pitch error compensation, ensuring high positioning accuracy with reliability.
17. Offer compatible programming simulation software, with the program directly transmitted to the machine tool for processing via RS232 interface.
17. Offer compatible programming simulation software that can be directly transmitted to the machine tool via the RS232 interface for processing.
