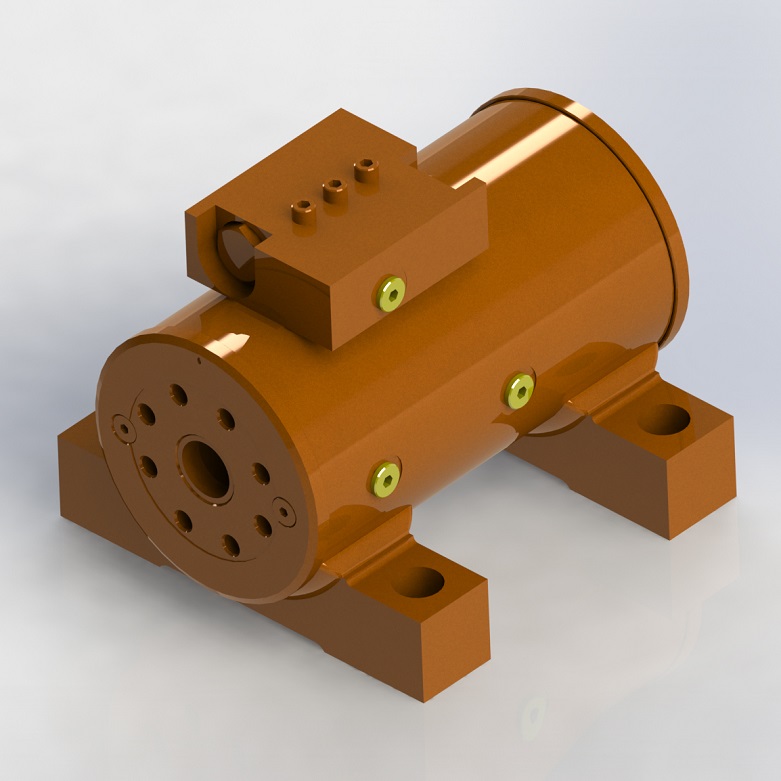

Product Advantages:
The product design is compact, every millimeter counts.
Diverse installation options, simplifying the structure of rotational motion, making your design more compact.
This product can withstand high axial and radial loads.
Optional rotation angles from 90° to 360°, catering to your diverse needs.
The balancing valve can act as a protective measure against excessive reverse load, preventing mechanical damage.
The product is meticulously crafted with zero internal leakage.
The balancing valve allows the product to stop at a fixed position during travel and maintains torque.
The helical oscillating cylinder is currently a product with a high output torque per unit volume.
A swing hydraulic cylinder is a compact component that, in a small space, utilizes hydraulics to generate a high torque. It employs a combined helical gear structure, allowing the entire swing hydraulic cylinder to produce a greater torque within a smaller space. Despite the high power, they can still be easily controlled. Swing hydraulic cylinders have been successfully applied in almost all fields that require limited rotational motion and high torque.
A helical oscillating cylinder is a structure that converts linear motion into rotational motion through the relative movement of the spiral pair, featuring a single...Spiral and double helix types.
For example, with the double helix structure:
Assuming the housingStationary. As hydraulic oil passes throughP2The mouthpiece is applied to the piston sleeve ③, piston sleeve③It will move axially to the right. Due to the meshing of the spiral bevel gears with the piston sleeve.③With shaft②Simultaneous rotation. shaft②The rotation will be clockwise as indicated by the arrow in the diagram. Please note the axis.②No axial movement, piston sleeve③Rotating while moving axially. Housing①Fixed with the tooth ring, no relative motion.
Assuming the housingStationary. As hydraulic oil passes throughP1Orifice applied to piston sleeve ③, piston sleeve③It will move axially to the left. Because the spiral bevel gears mesh with the piston sleeve.③With shaft②Simultaneously rotate. Axle②The rotation will be counterclockwise as indicated by the arrows in the diagram. Please note the shaft.②No axial movement, piston sleeve③Rotating and axially moving. Housing①Mounted with the gear ring, no relative motion.
