Product Advantages:
Product design is compact, with minimal...OneMillimeters less, moreOneMillimeters then more。
Versatile installation options simplify the structure of rotational motion, making your design more compact.
This product can withstand high axial and radial loads.
Rotational Angle90"To360"Optional, catering to your diverse needs.
The balancing valve serves as a protective mechanism against excessive reverse load, preventing mechanical damage.
The product is meticulously crafted with zero internal leakage.
Balanced valve allows the product to stop at a specific point in its stroke.OneMaintain a fixed position and torque.
The helical oscillating cylinder is currently a product with a high output torque per unit volume.

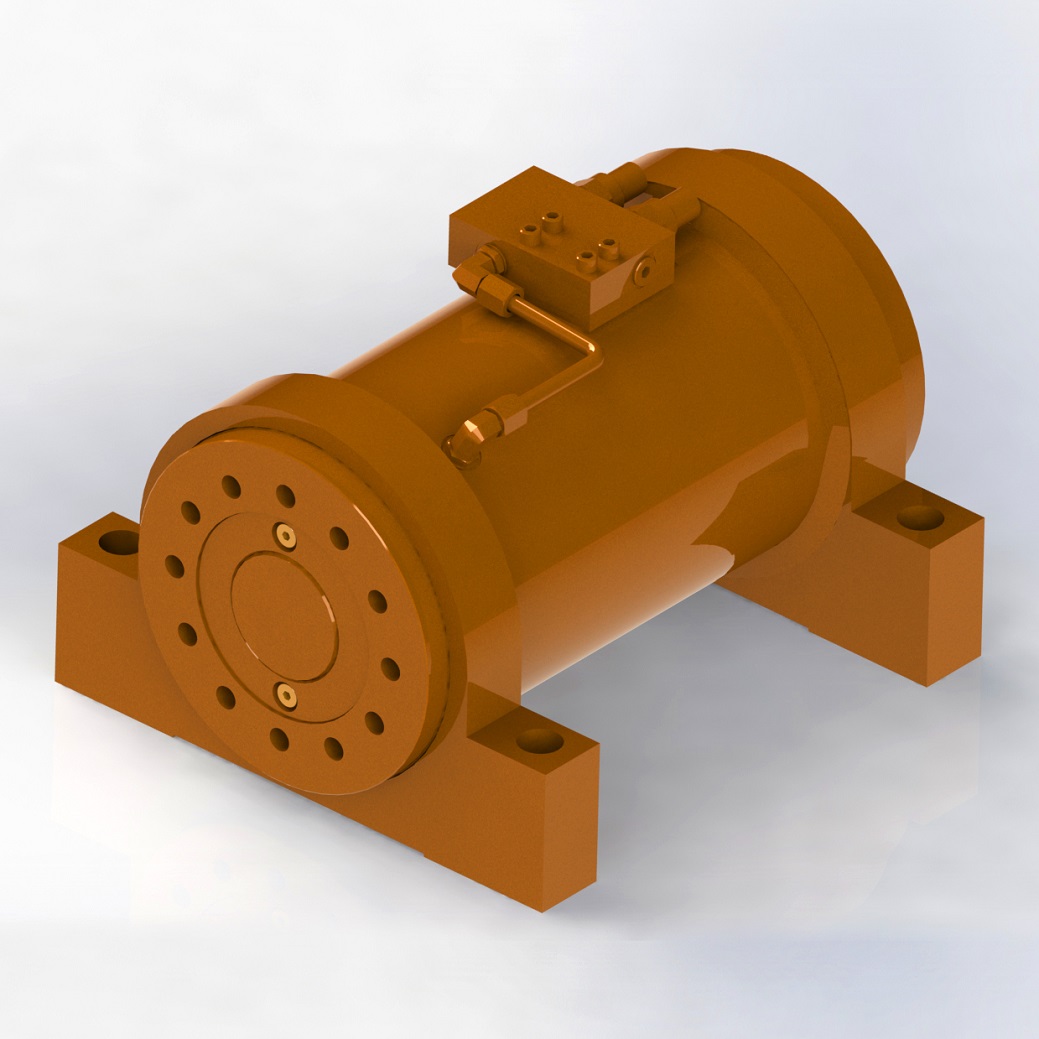

A swing hydraulic cylinder is a tightly assembled component that utilizes hydraulics to generate a high torque in a compact space. It features a combined helical gear structure, allowing the entire swing hydraulic cylinder to produce a significant torque within a smaller space. Despite the high power, they can still be easily controlled. The swing hydraulic cylinder has been successfully applied in almost all fields requiring limited rotational movement and high torque.
A helical oscillating cylinder is a structure that converts linear motion into rotational motion through the relative movement of the spiral pair, featuring a single...Spiral and double-helix types.
For example, with the double helix structure:
Assuming the housingStationary. When hydraulic oil passes throughP2The mouthpiece exerts pressure on the piston sleeve ③.③It will move axially to the right. Because the spiral bevel gears mesh with the piston sleeve.③With shaft②Simultaneous rotation. Axle②The rotation will be clockwise as indicated by the arrows in the diagram. Please note the axis.②No axial movement, piston sleeve③Rotating while axially moving. Housing①Fixed together with the gear ring, no relative movement.
Assuming the housingStationary. As hydraulic oil passes throughP1The mouthpiece exerts pressure on the piston sleeve ③.③Will move axially to the left. Due to the meshing of the helical gears with the piston sleeve③With shaft②Simultaneous rotation. shaft②The rotation will be counterclockwise as indicated by the arrow in the diagram. Please note the axis.②No axial movement, piston sleeve③Rotating and axially moving. Housing①The tooth ring is fixed together, without relative motion.
