Product Advantages:
The product design is compact, with minimal...OneLess in millimeters.OneMillimeters more。
Diverse installation methods, simplifying the structure of rotational motion, allowing for a more compact design.
This product can withstand high axial and radial loads.
Rotation Angle90"To360"Optional, to meet your diverse needs.
The balancing valve can act as a protective measure against excessive reverse load, preventing mechanical damage.
The products are well-crafted with zero internal leakage.
Balanced valves allow products to stop at a specific point in their travel.OneMaintain a fixed position and torque.
The helical swing cylinder is currently a product with a high torque output per unit volume.

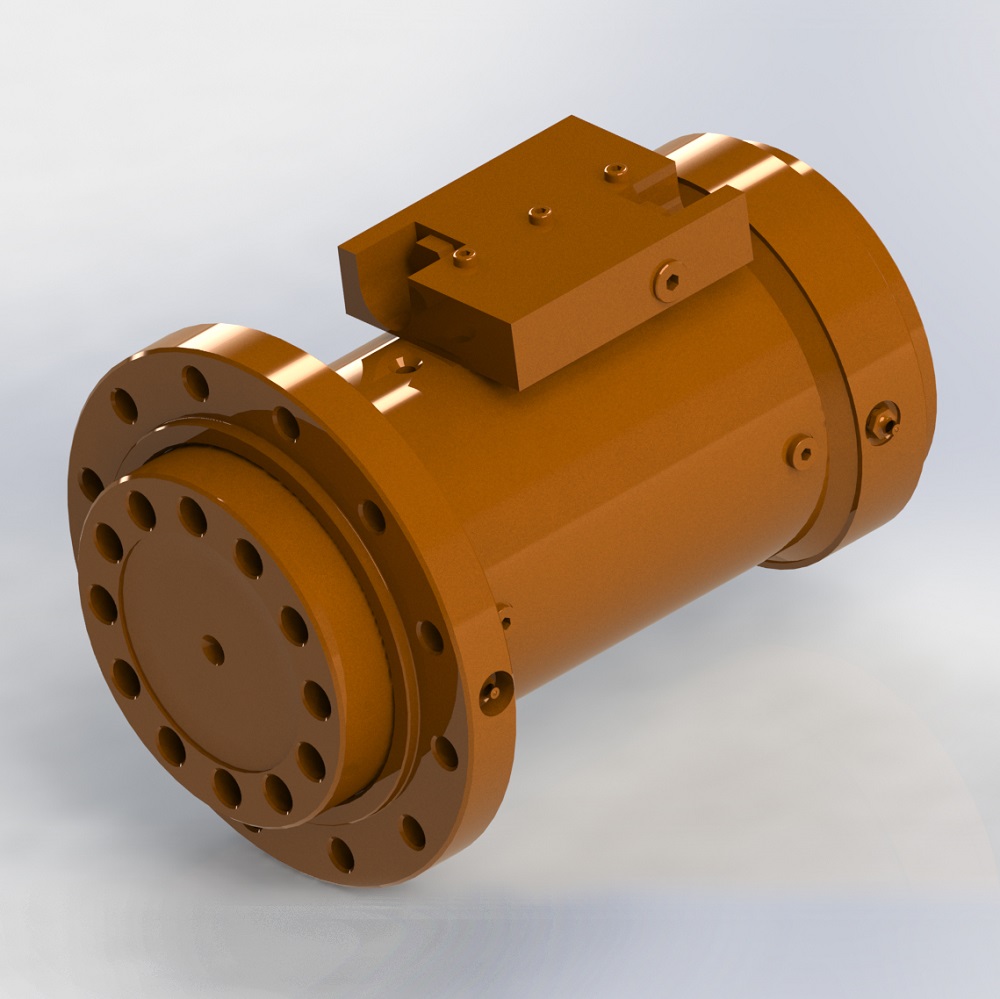

A swing hydraulic cylinder is a compact component that utilizes hydraulics to achieve a high torque in a minimal space. It employs a composite helical gear structure, allowing the entire cylinder to produce greater torque within a smaller space. Despite their high power output, they are still easy to control. Swing hydraulic cylinders have been successfully applied in almost all fields requiring limited rotational movement and high torque.
The helical oscillating cylinder is a structure that converts linear motion into rotational motion through the relative movement of the spiral pair, and it is available in a single...Spiral and double helix types.
For example, with a double helix structure:
Assuming the housingStationary. As hydraulic oil passes throughP2The mouthpiece exerts pressure on the piston sleeve ③.③It will move axially to the right. Because the spiral bevel gears mesh with the piston sleeve.③With shaft②Simultaneous rotation. Axle②The rotation will follow the clockwise direction as indicated by the arrow in the diagram. Please note the axis.②No axial movement, piston sleeve③Rotating and axially moving. Housing①Mounted with the gear ring, no relative motion.
Assuming the housing①Stationary. As hydraulic oil passes throughP1The mouthpiece exerts pressure on the piston sleeve ③.③It will move axially to the left. Due to the meshing of the spiral gears with the piston sleeve.③With shaft②Simultaneously rotating. shaft②The rotation will be counterclockwise as indicated by the arrow in the diagram. Please note the axis.②No axial movement, piston sleeve③Axial movement while rotating. Housing①Mounted with the tooth ring, no relative motion.
