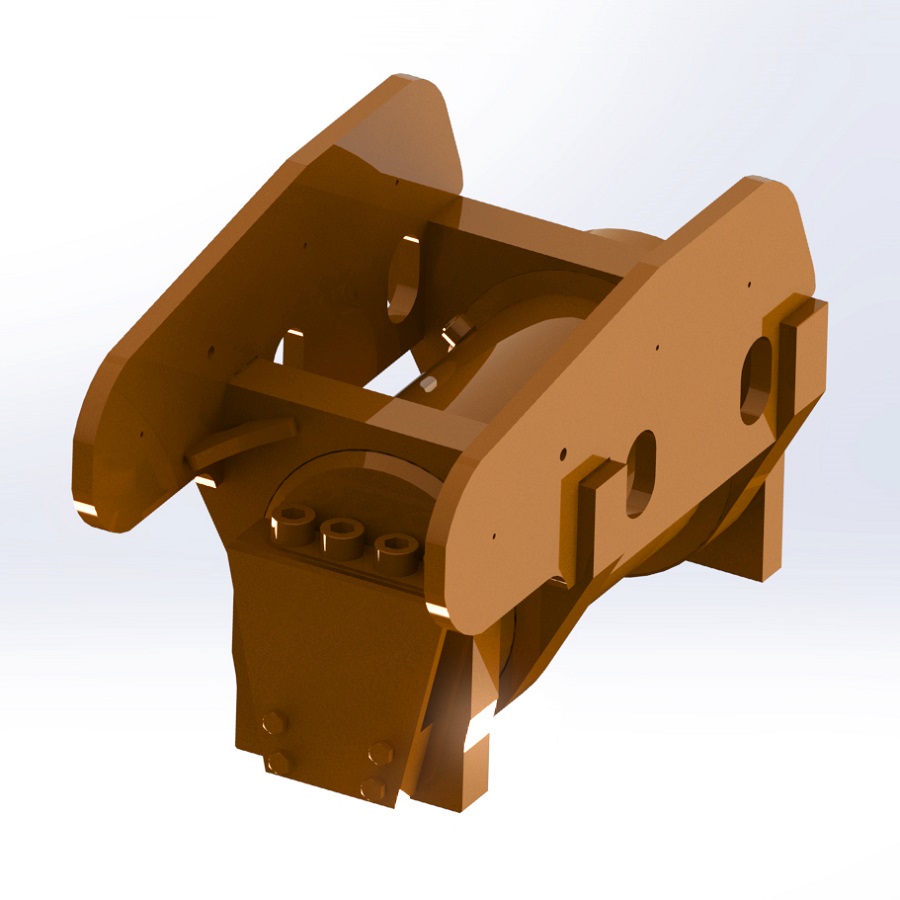

Product Advantages:
The product design is compact, with minimal...Please provide the Chinese content to be translated.Less in millimeters.OneMm then more。
Diverse installation options, simplifying the structure of rotational movement, making your design more compact.
This product can withstand high axial and radial loads.
Rotation Angle90"To360"Optional, to meet your diverse needs.
The balancing valve can act as a protective measure against excessive reverse load, preventing mechanical damage.
The product is meticulously crafted with zero internal leakage.
Balanced valves allow products to remain at a specific point in their travel.OneLock in position and maintain torque.
The helical oscillating cylinder is currently a product with a high output torque per unit volume.
A swing hydraulic cylinder is a tightly assembled component that utilizes hydraulics to generate a high torque in a minimal space. It employs a compound helical gear structure, allowing the entire cylinder to produce greater torque within a smaller space. Despite the high power, they are still easily controllable. Swing hydraulic cylinders have been successfully applied in almost all fields that require limited rotational movement and high torque.
A helical oscillating cylinder is a structure that converts linear motion into rotational motion through the relative movement of a helical pair, and it features a single...Spiral and double helix styles.
For example, with the double helix structure:
Assuming the housing① Stationary. When hydraulic oil passes throughP2The mouthpiece is applied to the piston sleeve ③, piston sleeve③It will move axially to the right. Because the spiral bevel gears mesh with the piston sleeve.③With shaft②Simultaneously rotating. shaft②The rotation will follow the clockwise direction as indicated by the arrow in the diagram. Please note the axis.②No axial movement, piston sleeve③Rotating and axially moving. Housing①Coupled with the spline ring, no relative motion.
Assuming the housing① Stationary. When hydraulic oil passes throughP1Orifice applied to sleeve ③, piston sleeve③It will move axially to the left. Because the spiral gear engages with the piston sleeve.③With shaft②Simultaneous rotation. Axle②The rotation will be counterclockwise as indicated by the arrows in the diagram. Please note the shaft.②No axial movement, piston sleeve③Rotating while axially moving. Housing①Mounted with the tooth ring, no relative motion.
