Product Advantages:
Compact design, minimalPlease provide the Chinese content that needs to be translated.Millimeters less, moreOneMillimeters more。
Multiple installation options, simplifying the structure of rotational motion, making your design more compact.
This product can withstand high axial and radial loads.
Rotation Angle90"To360"Optional, to meet your diverse needs.
The balance valve can act as a protective measure against excessive reverse load, preventing mechanical damage.
The product is meticulously crafted with zero internal leakage.
Balanced valve allows the product to stop at a certain point in its travel.OneMaintain a fixed position and torque.
The helical swing cylinder is currently a product with a high output torque per unit volume.

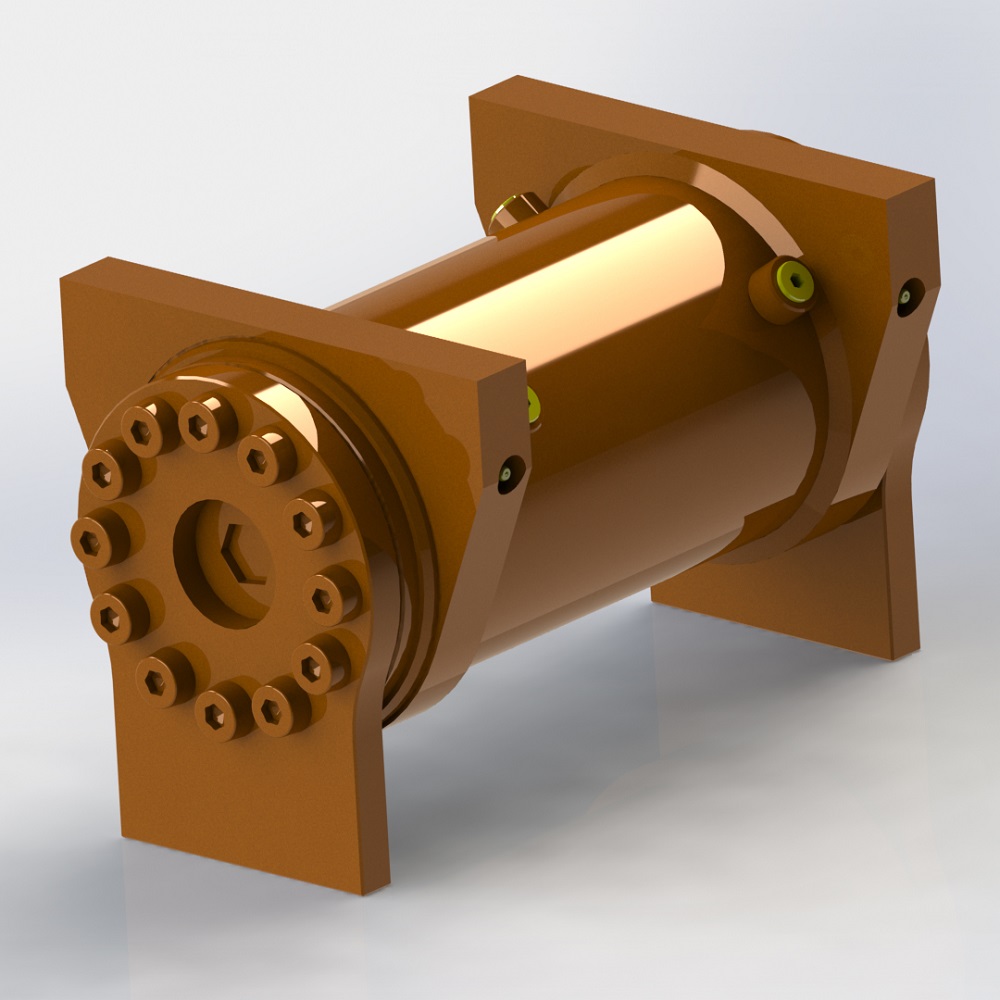

The oscillating hydraulic cylinder is a tightly assembled component that utilizes hydraulics in a small space to achieve a high torque. It employs a composite helical gear structure, allowing the oscillating hydraulic cylinder to generate a significant torque within a compact area. Despite their high power, they can still be easily controlled. The oscillating hydraulic cylinder has successfully been applied in nearly all fields that require limited rotational movement and a high torque.
The helical oscillating cylinder is a structure that converts linear motion into rotational motion through the relative movement of the helical pair, and is available in single...Spiral and double-helix types.
For example, with the double helix structure:
Assuming the housingStationary. As hydraulic oil passes throughP2The mouthpiece exerts pressure on the piston sleeve ③.③Will move axially to the right. Due to the meshing of the spiral bevel gears with the piston sleeve.③With shaft②Simultaneously rotating. shaft②The rotation will be clockwise as indicated by the arrow in the diagram. Please note the axis.②No axial movement, piston sleeve③Rotating while moving axially. Housing①Fixed with the tooth ring, no relative motion.
Assuming the housingStationary. As hydraulic oil passes throughP1Oral action applied to piston sleeve ③, piston sleeve③The shaft will move to the left. Because the helical gears mesh with the piston sleeve.③With shaft②Simultaneous rotation. Shaft②The rotation will be counterclockwise as indicated by the arrows in the diagram. Please note the axis.②No axial movement, piston sleeve③Rotating while moving axially. Housing①Secured with the gear ring, no relative movement.
