Product Advantages:
Compact design, minimalOneLess in millimeters.OneMillimeters, then more。
Diverse installation methods, simplifying the structure of rotational motion, making your design more compact.
This product can withstand high axial and radial loads.
Rotation Angle90"To360"Optional, to meet your diverse needs.
The balancing valve can act as a protective measure against excessive reverse load, preventing mechanical damage.
The product is meticulously crafted with zero internal leakage.
Balanced valves allow products to stop at a specific point in their travel.OneProvide fixed position and maintain torque.
The helical swing cylinder is currently a product with a high torque output per unit volume.

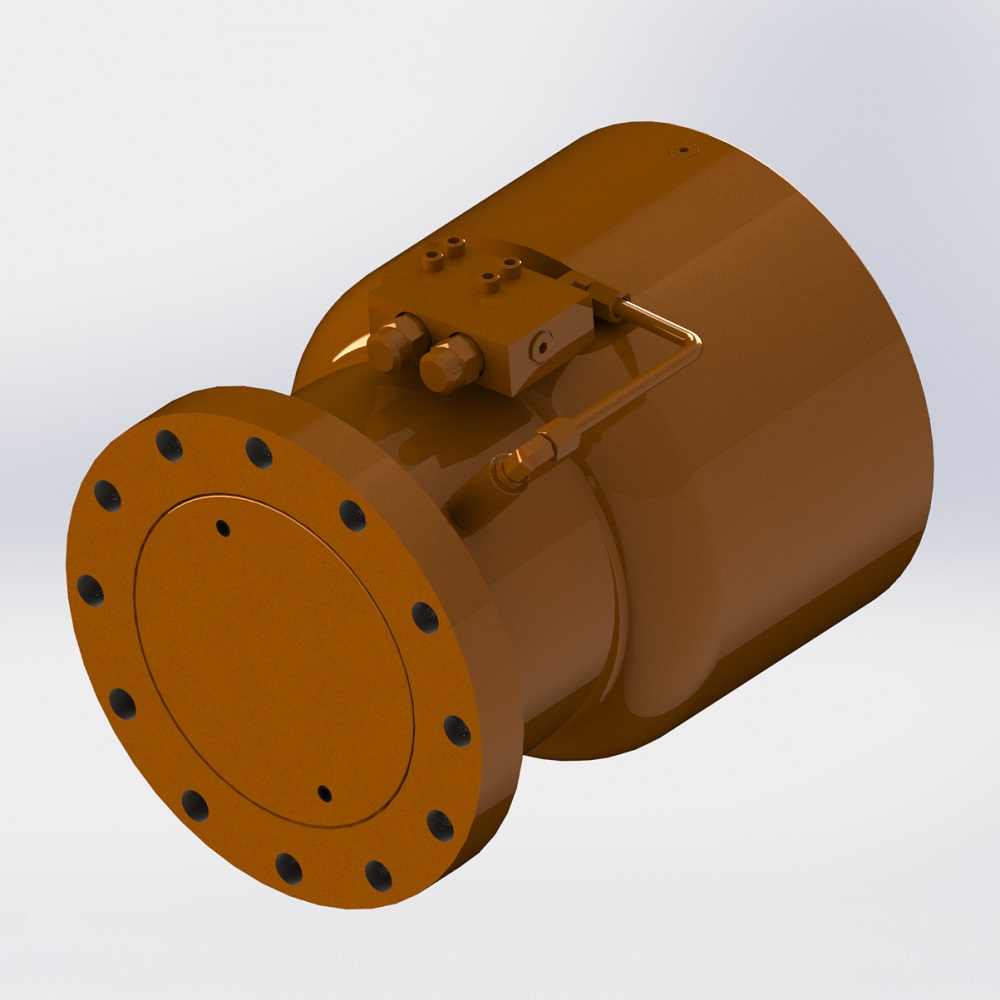

A swing hydraulic cylinder is a tightly assembled component that, in a compact space, utilizes hydraulics to generate a high torque. It features a combined helical gear structure, allowing the entire swing hydraulic cylinder to produce a larger torque within a smaller space. Despite the high power, they can still be easily controlled. Swing hydraulic cylinders have been successfully applied in almost all fields that require limited rotational motion and a high torque.
A helical oscillating cylinder is a structure that transforms linear motion into rotary motion through the relative movement of a spiral pair, featuring a single...Spiral and double-helix styles.
For example, with the double helix structure:
Assuming the housingStationary. As hydraulic oil passes throughP2The mouthpiece is applied to the piston sleeve ③, piston sleeve③It will move axially to the right. Because the spiral bevel gears mesh with the piston sleeve.③With shaft②Simultaneously rotating. shaft②The rotation will be clockwise as indicated by the arrow in the diagram. Please note the axis.②No axial movement, piston sleeve③Rotating while axially moving. Housing①Fixed with the spline ring, no relative movement.
Assuming the housingStationary. As hydraulic oil passes throughP1Oral action on sleeve ③, piston sleeve③The shaft will move to the left. Due to the meshing of the helical gears with the piston sleeve.③With shaft②Simultaneously rotating. shaft②The rotation will be counterclockwise as indicated by the arrow in the diagram. Please note the axis.②No axial movement, piston sleeve③Rotating while axially moving. Housing①Fixed with the tooth ring, no relative motion.
