Product Advantages:
The product design is compact, with minimal...OneFewer millimeters.OneMillimeters then more。
Installation options are versatile, simplifying the structure of rotational motion, making your design more compact.
This product can withstand high axial and radial loads.
Rotation Angle90"To360"Optional, to meet your diverse needs.
The balancing valve can act as a protective measure against excessive reverse load, preventing mechanical damage.
The product is meticulously crafted with zero internal leakage.
Balanced valve allows the product to stop at a certain point in its travel.Please provide the Chinese content to be translated.Securely position and maintain torque.
The helical oscillating cylinder is currently a product with a high torque output per unit volume.

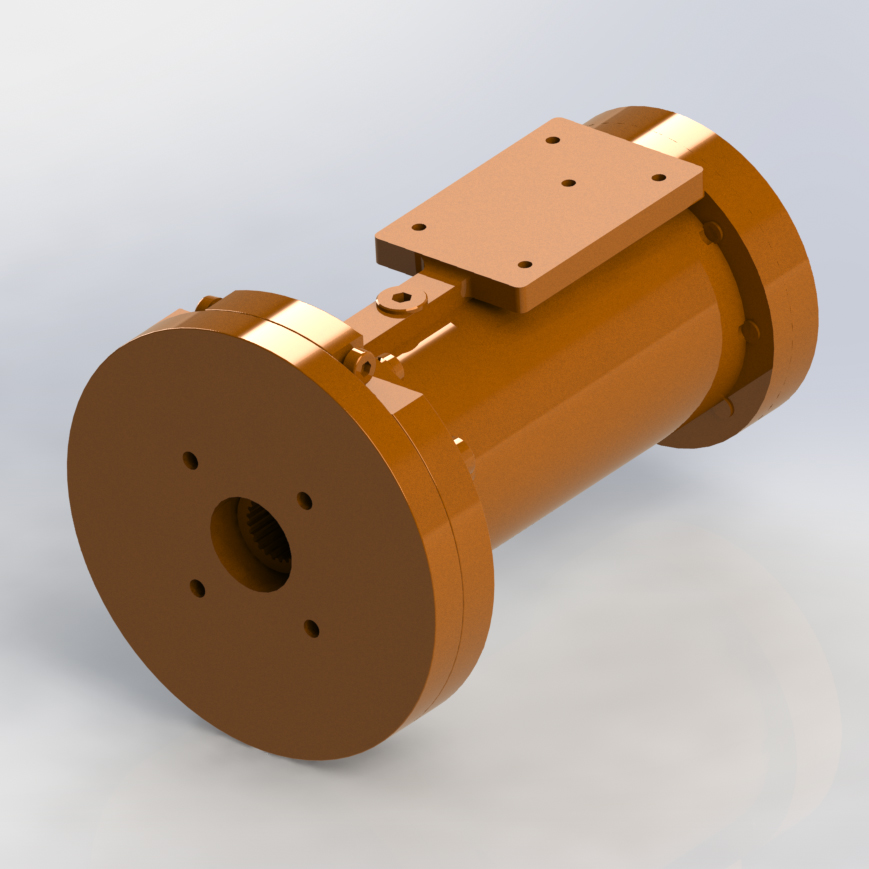

The swing hydraulic cylinder is a tightly assembled component that utilizes hydraulic power to achieve a high torque in a very small space. It features a combined helical gear structure, allowing the entire swing hydraulic cylinder to produce a large torque within a compact space. Despite their high power, they are still easy to control. The swing hydraulic cylinder has been successfully applied in almost all fields that require limited rotational motion and a high torque.
The helical oscillating cylinder is a structure that converts linear motion into rotational motion through the relative movement of the spiral pair, and it is available in single...Spiral and double helix types.
For example, with the double helix structure:
Assuming the housingStationary. As hydraulic oil passes throughP2The mouthpiece is applied to the piston sleeve ③.③Will move axially to the right. Because the spiral bevel gears mesh with the piston sleeve.③With shaft②Simultaneous rotation. Axle②The rotation will be clockwise as indicated by the arrow in the diagram. Please note the axis.②No axial movement, piston sleeve③Rotating and axially moving. Housing①Fixed with the tooth ring, no relative movement.
Assuming the housingStationary. As hydraulic oil passes throughP1The mouthpiece acts on the piston sleeve ③.③It will move axially to the left. Because the spiral bevel gears mesh with the piston sleeve.③With shaft②Simultaneously rotating. Axle②The rotation will be counterclockwise as indicated by the arrow in the diagram. Please note the axis.②No axial movement, piston sleeve③Rotating while moving axially. Housing①The gear ring is fixed together, with no relative motion.
