Product Advantages:
Product design is compact, with minimal...Please provide the Chinese content to be translated.Millimeters less, moreOneMillimeters then more。
Installation methods are versatile, simplifying the structure of rotational movement for a more compact design.
This product can withstand high axial and radial loads.
Rotational Angle90"Please provide the Chinese content you would like translated.360"Optional, to meet your diverse needs.
The balancing valve can act as a protective measure against excessive reverse load, preventing mechanical damage.
The product is well-crafted with zero internal leakage.
Balanced valves allow products to remain at a specific point in their travel.OneProvide fixed position and maintain torque.
The helical swing cylinder is currently a product with a high torque output per unit volume.

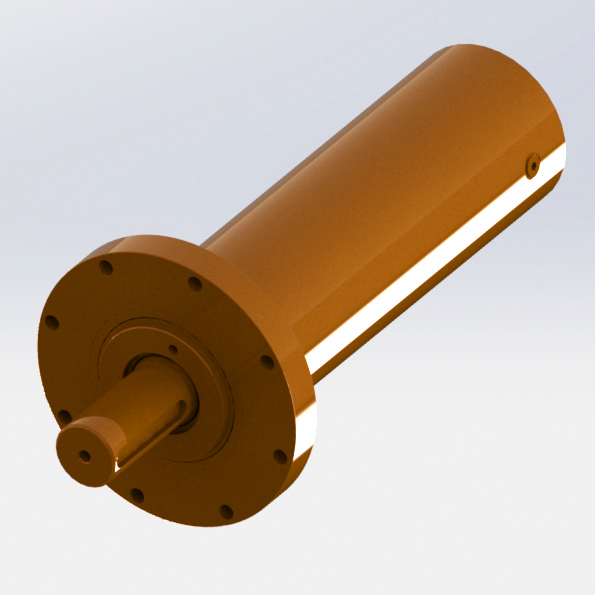

A swing hydraulic cylinder is a tightly assembled component that, in a compact space, utilizes hydraulics to generate a high torque. It employs a combined helical gear structure, allowing the entire swing hydraulic cylinder to produce a greater torque within a smaller space. Despite their high power, they can still be easily controlled. Swing hydraulic cylinders have been successfully applied in almost all fields that require limited rotational movement and a high torque.
The helical oscillating cylinder is a structure that converts linear motion into rotational motion through the relative movement of the helical pair, featuring a single...Spiral and double helix types.
For example, with a double helix structure:
Assuming the housingStationary. As hydraulic oil passes throughP2The mouthpiece exerts pressure on the piston sleeve ③.③Will move axially to the right. Due to the meshing of the helical gears with the piston sleeve.③With shaft②Simultaneously rotate. Axle②The rotation will be clockwise as indicated by the arrow in the diagram. Please note the axis.②No axial movement, piston sleeve③Rotating and axially moving. Housing①Fixed together with the gear ring, no relative movement.
Assuming the housingStationary. As hydraulic oil passes throughP1The mouthpiece exerts pressure on the piston sleeve ③.③Will move axially to the left. Due to the meshing of the spiral bevel gears with the piston sleeve.③With shaft②Simultaneous rotation. Axle②The rotation will be counterclockwise as indicated by the arrows in the diagram. Please note the axis.②No axial movement, piston sleeve③Rotating and axially moving. Housing①Mounted with the gear ring, no relative motion.
