Product Advantages:

The product design is compact, with minimal...OneLess in millimeters.OneMillimeters then more。

Variety of installation methods, simplifies the structure of rotational movement, making your design more compact.

This product can withstand high axial and radial loads.

Rotational Angle90"To360"Optional, to meet your varied needs.

The balancing valve can act as a protective measure against excessive reverse load, preventing mechanical damage.

The product is meticulously crafted with zero internal leakage.

Balanced valve allows the product to stop at a certain point in its travel.OneMaintain a fixed position and torque.

The helical oscillating cylinder is currently a product with a high torque output per unit volume.

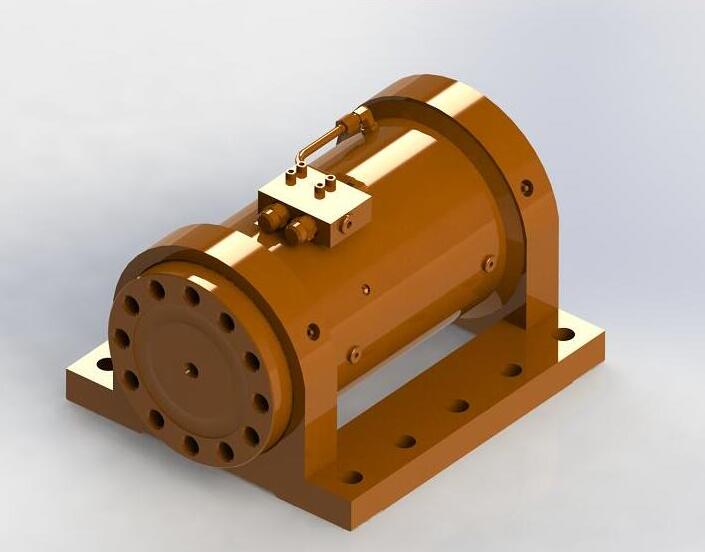

A swing hydraulic cylinder is a tightly assembled component that utilizes hydraulics to achieve a high torque in a very small space. It features a combined helical gear structure, allowing the entire swing hydraulic cylinder to produce a greater torque within a smaller space. Despite the high power, they can still be easily controlled. Swing hydraulic cylinders have been successfully applied in almost all fields that require limited rotational motion and a high torque.

A helical oscillating cylinder is a structure that converts linear motion into rotational motion through the relative movement of the helical gears, featuring a single...Spiral and double helix types.

For example, with the double helix structure:

Assuming the housing① Stationary. When hydraulic oil passes throughP2Oral action on piston sleeve ③, piston sleeve③Will move axially to the right. Due to the engagement of the spiral bevel gears with the piston sleeve.③With shaft②Simultaneously rotate. shaft②The rotation will follow the clockwise direction as indicated by the arrow in the diagram. Please note the axis.②No axial movement, piston sleeve③Rotating and axially moving. Housing①Mounted with the gear ring, no relative motion.

Assuming the housingStationary. As hydraulic oil passes throughP1Oral force applied to piston sleeve ③③It will move axially to the left. Due to the meshing of the spiral bevel gears with the piston sleeve.③With shaft②Simultaneously rotating. shaft②The rotation will be counterclockwise as indicated by the arrow in the diagram. Please note the axis.②No axial movement, piston sleeve③Rotating while axially moving. Housing①Fixed with the gear ring, no relative movement.

For detailed product specifications and technical requirements, please contact our company for confirmation!
