Product Advantages:
Product design is compact, with minimal...OneMillimeters less, moreOneMillimeters more。
Multiple installation options, simplifying the structure of rotational motion, making your design more compact.
This product can withstand high axial and radial loads.
Rotation Angle90"Please provide the Chinese content you would like translated into American English.360"Optional, to meet your diverse needs.
The balancing valve can act as a protective measure against excessive reverse load, preventing mechanical damage.
The product is meticulously crafted with zero internal leakage.
A balancing valve allows the product to stop at a certain point in its travel.OneSecurely position and maintain torque.
The helical oscillating cylinder is currently a product with a high torque output per unit volume.

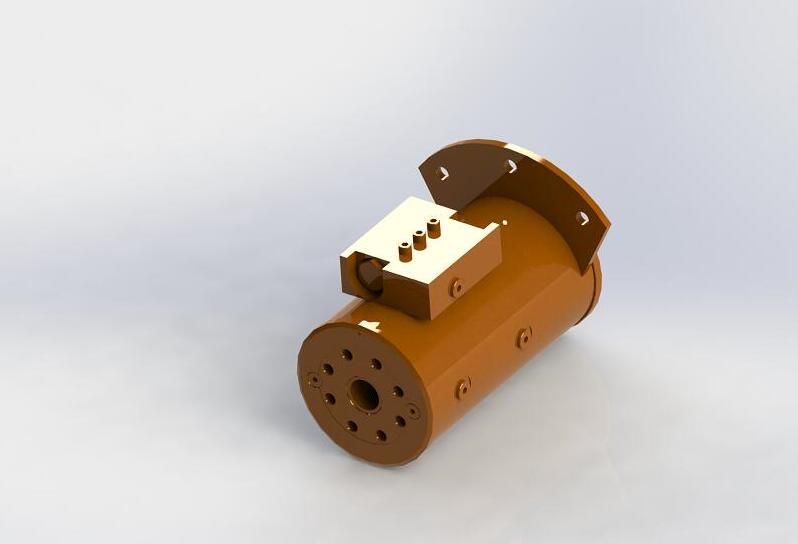

A swing hydraulic cylinder is a tightly assembled component that utilizes hydraulics to generate a high torque in a very small space. It employs a combined helical gear structure, allowing the entire swing hydraulic cylinder to produce greater torque within a compact area. Despite their high power, they are still easily controllable. Swing hydraulic cylinders have been successfully applied in almost all fields requiring limited rotational motion and high torque.
The helical oscillating cylinder is a structure that, through the relative motion of the helical pair, converts linear motion into rotational motion. It features a single...Spiral and double helix types.
For example, with the double helix structure:
Assuming the housing① Stationary. When hydraulic oil flows throughP2The mouthpiece is applied to the piston sleeve ③, piston sleeve③Will move axially to the right. Because the spiral bevel gear engages the piston sleeve③With shaft②Simultaneous rotation. Shafts②The rotation will be clockwise as indicated by the arrow in the diagram. Please note the axis.②No axial movement, piston sleeve③Rotating while moving axially. Housing①Fixed together with the gear ring, no relative movement.
Assuming the housingStationary. As hydraulic oil passes throughP1The mouthpiece exerts pressure on the piston sleeve ③.③It will move axially to the left. Due to the meshing of the spiral gears with the piston sleeve.③With shaft②Simultaneously rotating. shaft②The rotation will be counterclockwise as indicated by the arrow in the diagram. Please note the axis.②No axial movement, piston sleeve③Rotating while moving axially. Housing①Mounted with the tooth ring, no relative motion.
