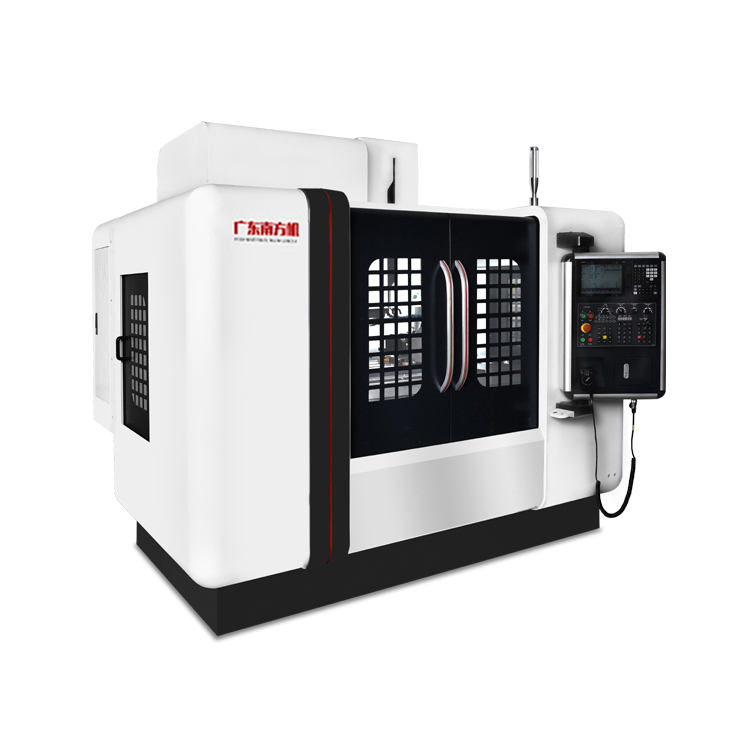

Machining Center Description:

The VL850 machining center is a series developed independently by our company. It is based on the extensive absorption and digestion of CNC machine tool manufacturing technologies from both domestically and internationally, combined with practical technical requirements of users. This advanced equipment offers high efficiency, high precision, and high performance. Equipped with数控 systems from Fanuc Japan or Mitsubishi, Siemens Germany, or Neway Taiwan, it can achieve any three-axis simultaneous processing, thereby enhancing the dynamic quality and control precision of the processed products. Its favorable performance-to-price ratio makes it a great choice for customers worldwide.

The VL850 machining center is widely applicable in the precision CNC machining of intricate parts in various industries such as automotive, shipbuilding, locomotive, aerospace, machine tools, and mold manufacturing. The machine features high precision and high speed, enabling rapid cutting, and allows for a single setup to complete multiple operations such as milling, boring, drilling, reaming, and tapping.

Machining Center Features:

All machine tool base castings are made of resin sand castings, featuring a strong and rigid rib layout that is well-designed. They have undergone two artificial aging treatments, ensuring high load-bearing capacity, stability, and strength. The precision is stable and reliable, and the stress is relieved to prevent deformation over time.

2. Utilizing imported P4 grade spindle-specific bearings, which have been computer-balanced and run-in tested, ensuring high axial and radial rigidity and machining accuracy. This guarantees the spindle's high reliability, long lifespan, low noise, low vibration, and high precision. Features a quick tool change with a pressurized cutting cylinder.

3. All three axes are equipped with original Taiwan C3 precision ball screw and P4 grade bearings, ensuring both positioning accuracy and repeat positioning accuracy. Additionally, the three axes use original servo motors and spindle motors with direct drive transmission, guaranteeing feeding precision under strong load-bearing capacity.

3. Linear guides are imported rolling linear guides, featuring low sliding friction resistance, fast movement speed, and quick feeding at微量. They eliminate crawling at low speeds and vibration at high speeds, enhancing the machine tool's motion accuracy and response speed.

4. Systems are all servo-driven, ensuring high stability, speed, smooth surface, and high precision in the control system. They possess the necessary functions for mold manufacturing and are the preferred choice for mold production.

Machine Tool Parameters:

Machine Tool Configuration:

Standard Configuration:

Numerical Control System

2. Belt-driven spindle

3. Spindle Blow-off System

4. Oil Cooler

5. Cutting Cooling Unit

6. Full Cover Sheet Metal

7. Electrical cabinet heat exchanger

8. Centralized Automatic Lubrication System

9. Janchun or Luo Yi shaft

10. Taiwan Sun Yat-sen Ball Screw Rails

11. Three-axis Enclosed Dust-proof Retractable Guard Cover

12. Three-axis screw tensioning device

13. Program Storage Function

14. Level screw and shims

Transformer

16. NSK Bearings from Japan

17. Pneumatic Knife Change Mechanism

18. Adjustment Tools and Toolboxes

19. Portable Handwheel

20. LED work lighting fixture

21. Rigid Tap

22. Operation and Programming Manual

Description: Due to continuous product improvements, the appearance and technical specifications of this machine tool are for reference only. The actual appearance and technical specifications are subject to the order at the time of purchase.
