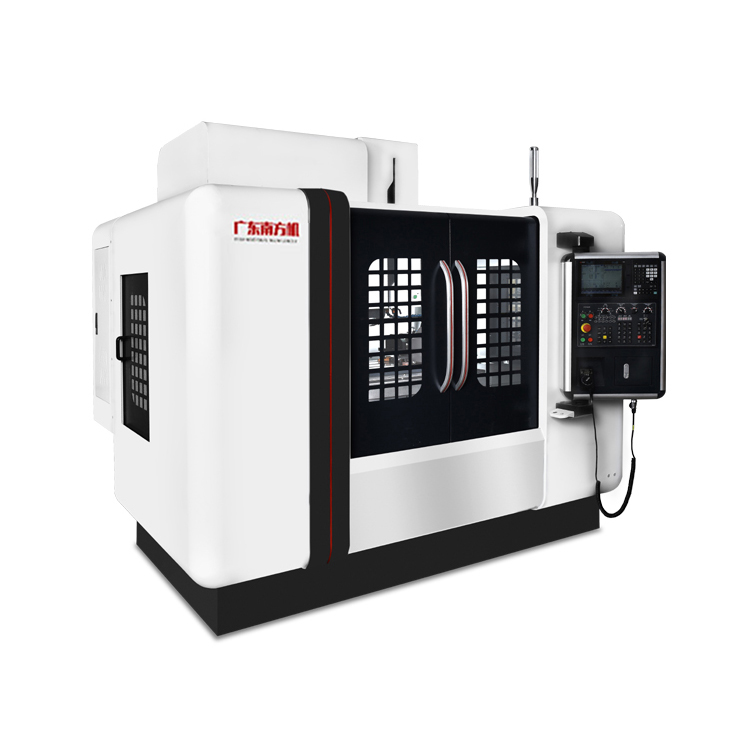

Machining Center Description:
The VL1580 machining center is a series developed independently by our company. It is a high-efficiency, high-precision, and high-performance advanced equipment developed by extensively absorbing and digesting domestic and international CNC machine tool manufacturing technologies, in combination with practical technical requirements from users. Equipped with a CNC system from Fanuc Japan or Mitsubishi, Siemens Germany, or Neway Taiwan, it can achieve any three-axis simultaneous machining, thereby enhancing the dynamic quality and control precision of the processed products. Its favorable performance-to-price ratio makes it an excellent choice for both domestic and international customers.
The VL1580 machining center is widely applicable in the precision CNC machining of parts for various industries such as automotive, shipbuilding, locomotive, aerospace, machine tools, and mold-making. It features high precision and high speed, enabling rapid cutting. A single setup can complete multiple processes like milling, boring, drilling, reaming, and tapping.
Machining Center Features:
All machine tool basic castings are made of resin sand castings, featuring a strong and rigid rib layout that is reasonably designed. They have undergone two artificial aging treatments, offering high load-bearing capacity, stability, and strength. The precision of all specifications is stable and reliable, and they are stress-relieved for long-lasting shape retention.
2. Utilizes imported brand P4 grade spindle-specific bearings, which have undergone computer balancing and磨合testing. This ensures high axial and radial rigidity, as well as precision in processing, guaranteeing the spindle's reliability, long lifespan, low noise, minimal vibration, and high accuracy. Features a pressurized cutting tool cylinder for quick tool change.
3. All three axes are equipped with genuine Taiwan C3 precision ball screws and installed with P4 grade bearings to ensure precise positioning and repeatable positioning accuracy. Additionally, the three axes utilize original servo motors and spindle motors with direct drive transmission, guaranteeing feeding precision under strong load-bearing capacity.
3. The linear guide rail uses imported rolling linear guide rail, featuring low sliding friction resistance, fast movement speed, and quick feed during微量进给. It eliminates crawling at low speeds and vibration at high speeds, enhancing the machine tool's movement accuracy and response speed.
4. Systems are all servo-driven, ensuring high stability, speed, smooth surface, and high precision. They possess the necessary functions for mold manufacturing and are the preferred choice for mold production.
Machine Tool Parameters:
Machine Tool Configuration:
1. CNC System
2. Belt-driven main shaft
3. Spindle Blowing System
4. Oil Cooler
5. Cutting Coolant Unit
6. Full-enclosure Sheet Metal
7. Electrical cabinet heat exchanger
8. Centralized Automatic Lubrication System
9. Jian Chun or Luo Yi shaft
10. Taiwan Hiwin Ball Screw Guide Rails
11. Three-axis full-coversheet屑 protector telescopic shield
12. Three-axis screw pre-tensioning device
13. Program Storage Function
14. Level screw and washer
Transformer
16. NSK Bearings from Japan
17. Pneumatic Knife Change Mechanism
18. Adjustment Tools and Toolboxes
19. Portable Handwheel
20. LED Work Lighting Lamp
21. Rigid Tapping
22. Operation and Programming Manual
Description: Due to continuous product improvements, the appearance and technical specifications of this machine tool are for reference only. The actual appearance and technical specifications are subject to the order at the time of purchase.
