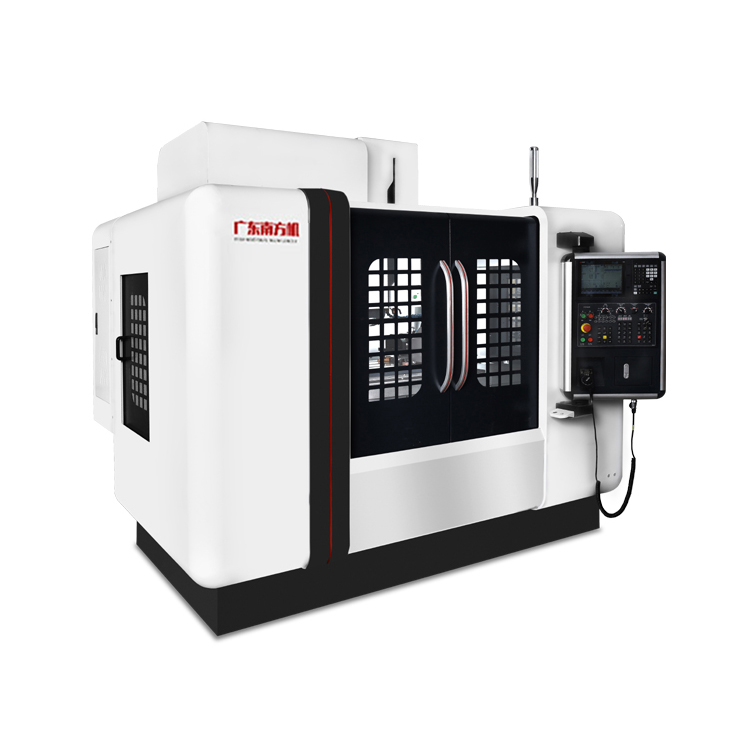

Machining Center Description:

The VL1690 machining center is a series of products independently developed by our company. Based on the extensive absorption and digestion of CNC machine tool manufacturing technologies both domestically and internationally, and in conjunction with the practical technical requirements of users, it is a highly efficient, high-precision, and high-performance advanced equipment. Equipped with CNC systems from Fanuc Japan or Mitsubishi, Siemens Germany, or Neway Taiwan, it can achieve any three-axis simultaneous processing, thereby enhancing the dynamic quality and control precision of the processed products. Its favorable performance-to-price ratio makes it an excellent choice for both domestic and international customers.

The VL1690 machining center is widely applicable in the precision CNC machining of parts for industries such as automotive, shipbuilding, locomotive, aerospace, machine tools, and mold-making. The machine tools feature high precision and high speed, enabling rapid cutting. A single clamping of the workpiece can complete various processes such as milling, boring, drilling, reaming, and tapping.

Features of Machining Centers:

1. All machine tool base castings are made of resin sand casting, featuring strong and rigid ribbing with rational layout. They have undergone two artificial aging treatments, ensuring high load-bearing capacity, stability, and strength. The precision is stable and reliable, and the stress is relieved to prevent deformation over time.

2. Utilizes imported P4 grade spindle bearings, which have been computer-balanced and run-in tested to ensure axial and radial rigidity and machining accuracy. This guarantees the spindle's high reliability, long lifespan, low noise, low vibration, and high precision. Features a quick tool change with a pressurized tool holder cylinder.

3. All three axes are equipped with genuine Taiwan C3 precision ball screws, installed with P4 grade bearings to ensure precise positioning and repeatable positioning accuracy. Additionally, the three axes use original servo motors and spindle motors with direct drive transmission, ensuring feeding precision under strong load-bearing capacity.

3. The linear guide rail utilizes imported rolling linear guide rails, featuring low sliding friction resistance, fast movement speed, and quick feed during微量进给. It eliminates crawling at low speeds and vibration at high speeds, enhancing the machine tool's motion accuracy and response speed.

4. Systems are all servo-driven, ensuring high stability, speed, smooth surface, and high precision in the control system. They possess the necessary functions for mold manufacturing and are the preferred choice for mold production.

Machine Tool Parameters:

Machine Tool Configuration:

Numerical Control System

2. Belt-driven spindle

3. Main shaft blowing system

4. Oil Cooler

5. Cutting Cooling Unit

6. Full Cover Sheet Metal

7. Electrical Cabinet Heat Exchanger

8. Centralized Automatic Lubrication System

9. Janchun or Luoyi Spindle

10. Taiwan Sunyuan Linear Guides

11. Three-axis full-coversheet屑extraction telescopic shield

12. Three-axis screw tensioning device

13. Program Storage Function

14. Level screw and washer

Transformer

16. NSK Bearings from Japan

17. Pneumatic Knife Change Device

18. Adjustment Tools and Toolboxes

19. Mobile Handwheel

20. LED Work Lighting Fixtures

21. Rigid thread cutting

22. Operation and Programming Manual

Description: Due to continuous product improvements, the appearance and technical specifications of this machine tool are for reference only. The actual appearance and technical specifications are subject to the order details.
