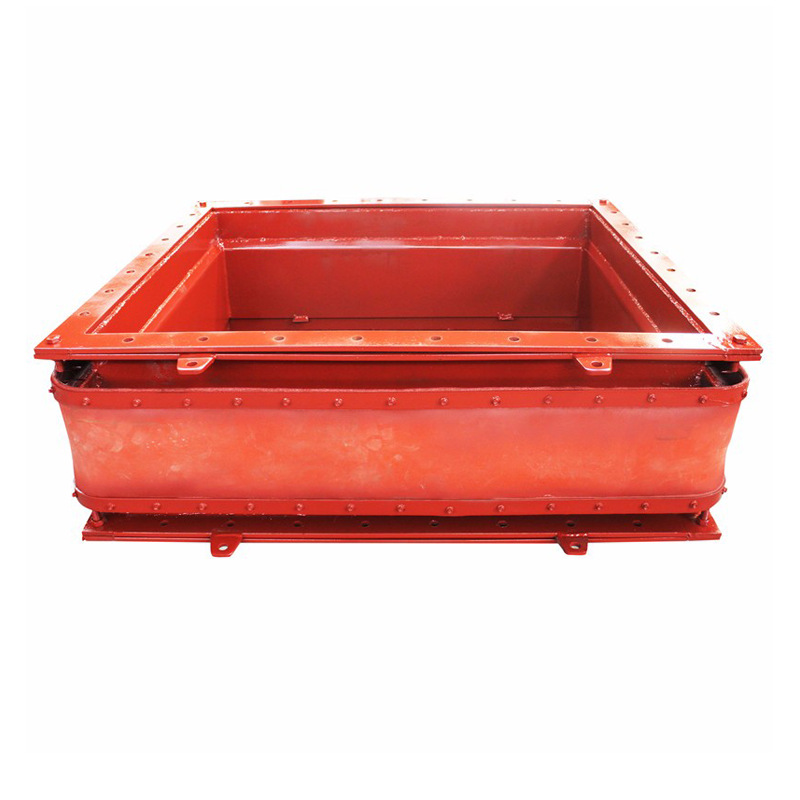

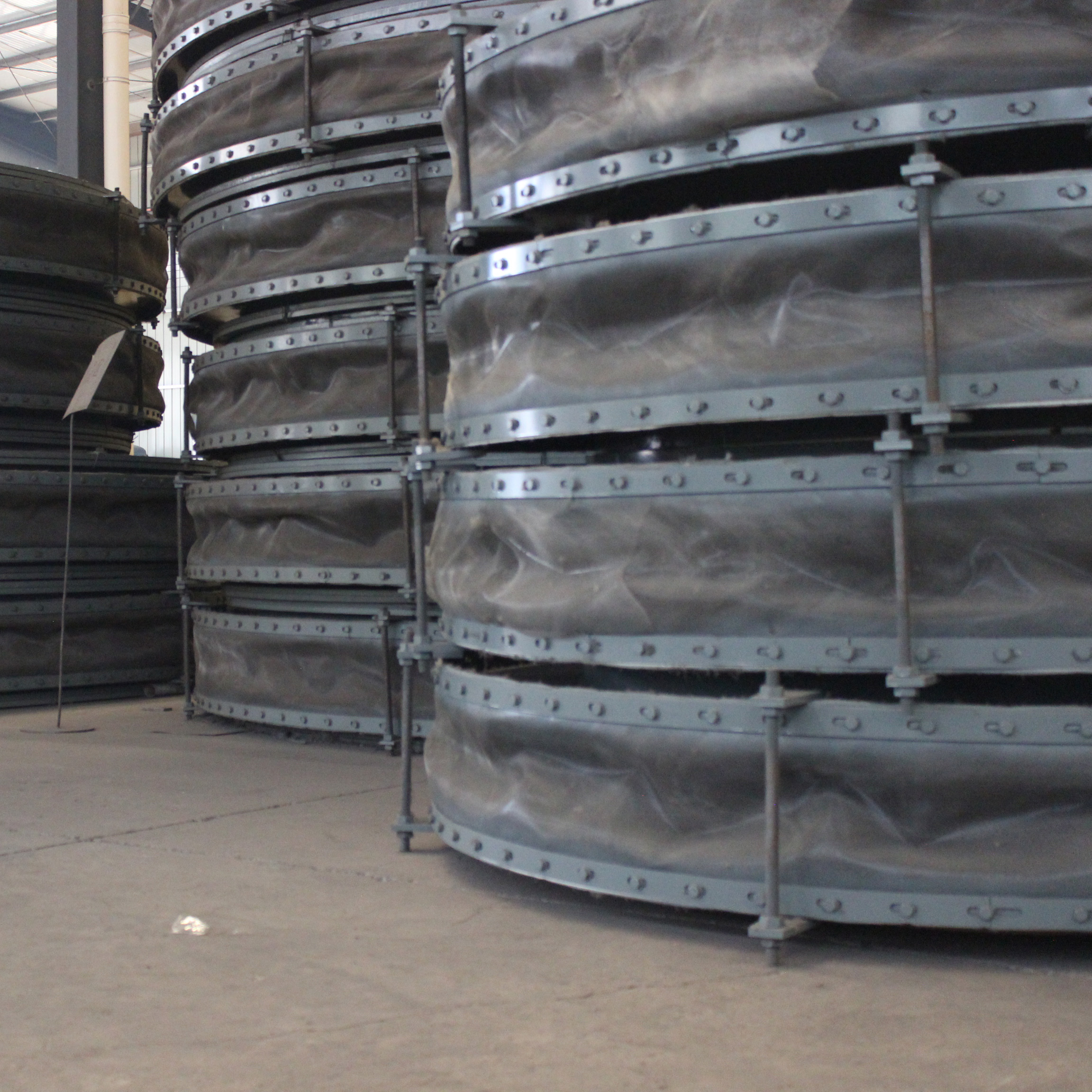

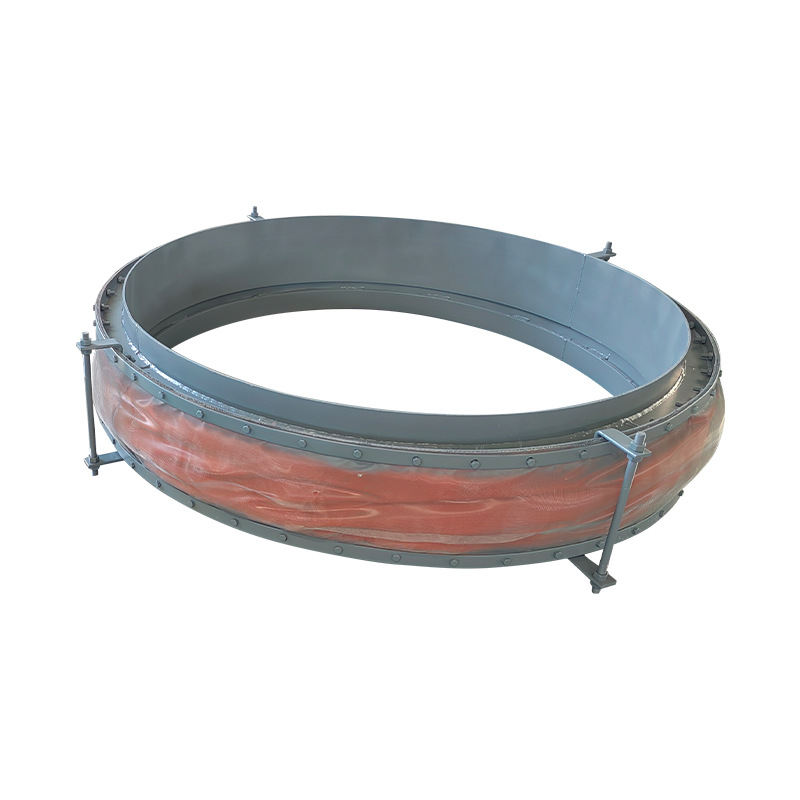

Non-metallic compensators are mainly composed of flexible compensating elements, flanges or connectors, thermal insulation materials, and bolts and rods. The flexible compensating elements are made of non-metallic materials such as fiber fabrics and rubber, offering excellent elasticity and corrosion resistance. Flanges or connectors are used for pipe connections, ensuring stable installation of the compensator. The thermal insulation materials effectively reduce heat loss and enhance the efficiency of the pipeline system.

II. Product Features

Multi-dimensional Compensation Capability: Non-metallic compensators can provide greater axial, angular, and lateral displacements within a smaller size range, effectively compensating for pipeline displacements caused by factors such as temperature changes, mechanical vibrations, and foundation settlement.

Simplified Design: The use of non-metallic compensators simplifies the design of the piping system, eliminates the need for large supports, and saves on material and labor costs.

Noise and Vibration Reduction: Fiber fabrics and thermal insulation cotton inherently possess sound absorption and vibration reduction properties, significantly reducing noise and vibration in systems such as boilers and fans.

High-temperature and corrosion-resistant: Non-metallic compensators are coated with high polymer materials like silicone and fluorine, offering excellent high-temperature and corrosion resistance, suitable for various harsh environments.

Excellent sealing performance: The non-metallic compensator is made with advanced production technology and a complete assembly system, ensuring no leakage and guaranteeing the safe operation of the pipeline system.

Easy installation and maintenance: The non-metallic compensator has a simple structure, making installation and maintenance convenient, thus reducing maintenance costs.

Section 3: Application Fields

Non-metallic compensators are widely used in industries such as petroleum, chemical, and food processing, particularly in high-temperature, high-pressure, and corrosive environments. Their excellent adaptability ensures the safe operation of pipeline systems. Additionally, they are suitable for scenarios like hot air ducts and dust exhaust pipes, effectively compensating for pipeline deformation and extending the service life of the pipelines.

Section 4: Selection Recommendations

When selecting a non-metallic compensator, consider the following factors:

Pipe Medium: Different mediums require different materials to accommodate their corrosiveness. Therefore, when selecting a non-metallic compensator, one should carefully consider the characteristics of the pipe medium and choose an appropriate material.

Operating Temperature: Non-metallic compensators have a wide range of operating temperatures, but their performance under high temperatures varies with different materials. Therefore, when selecting a non-metallic compensator, the appropriate material should be chosen based on the actual operating temperature.

Displacement Amount: The displacement amount of non-metallic compensators should be determined based on the actual conditions of the pipeline system. Either excessive or insufficient displacement can affect the service life and performance of the non-metallic compensators.

Pipe Diameter and Connection: The diameter and connection method of non-metallic compensators should match the pipeline system to ensure stable installation and normal operation.
