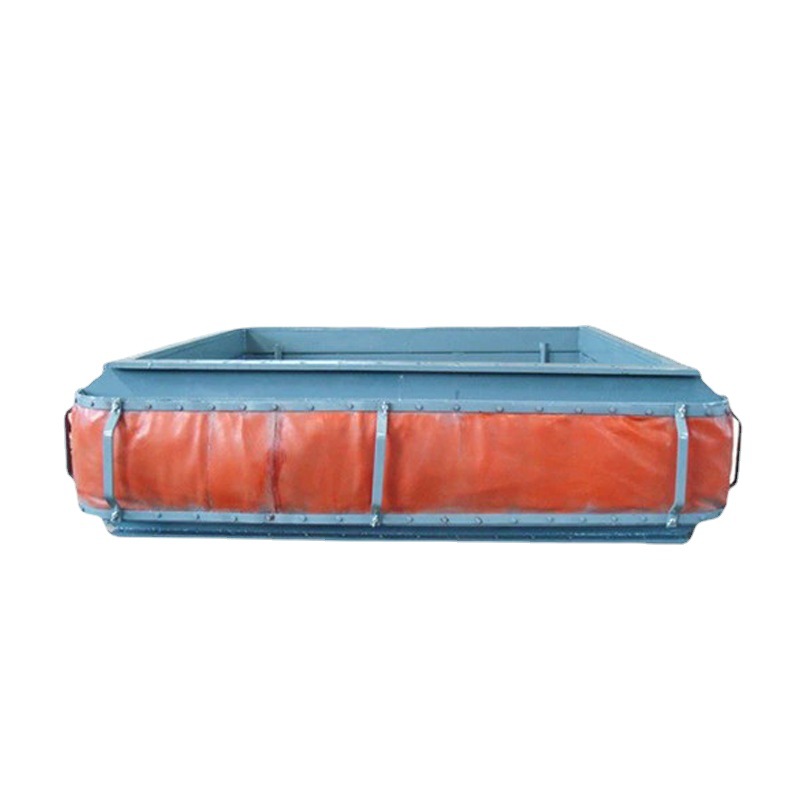

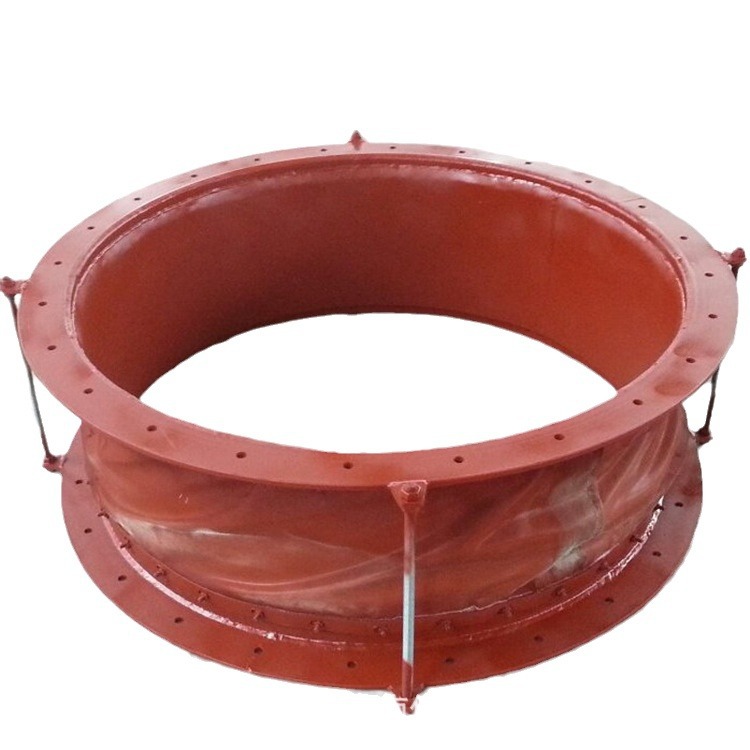

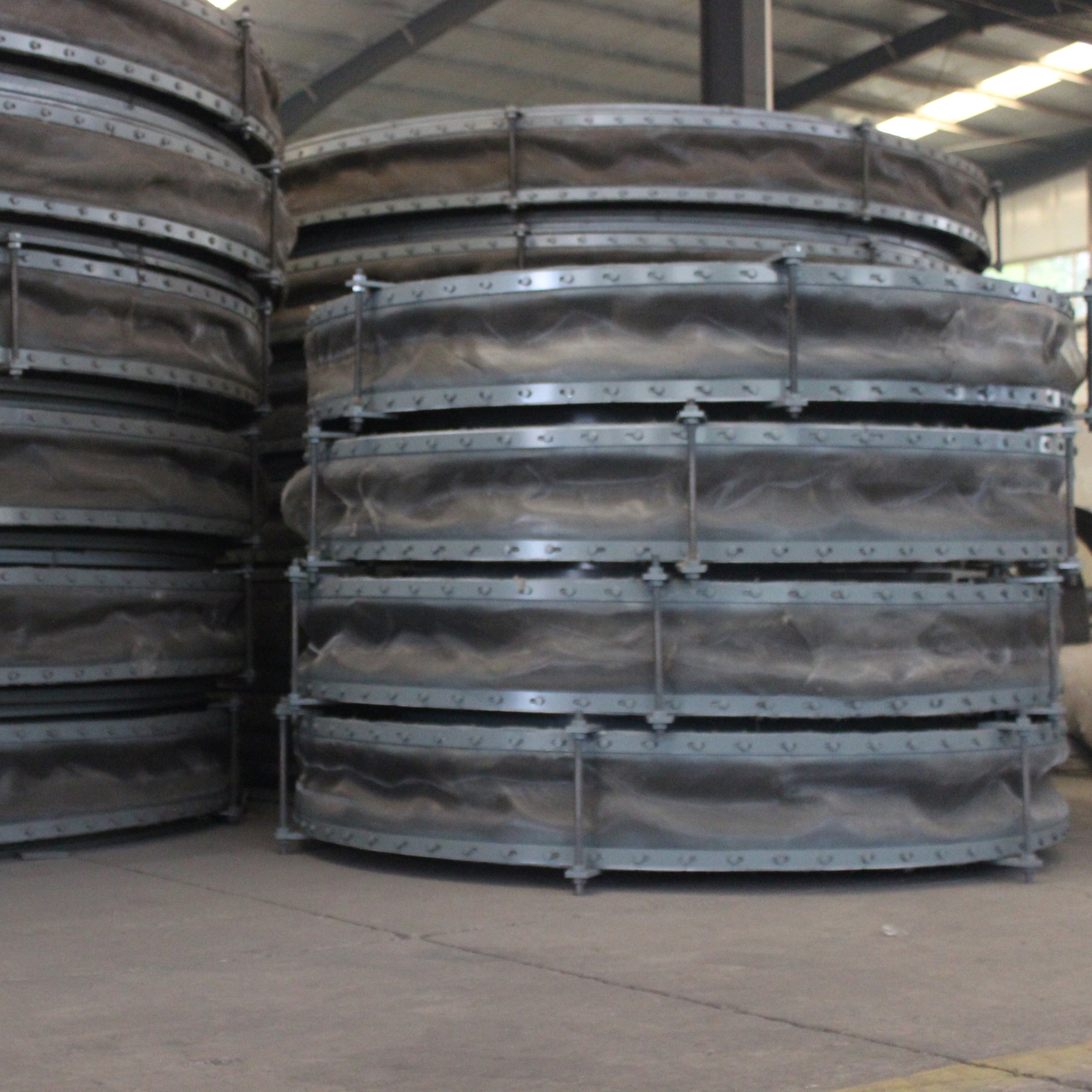

Non-metallic compensators are primarily composed of flexible compensating elements, flanges or outlets, thermal insulation materials, and bolts and rods. The flexible compensating elements are made of non-metallic materials such as fiber fabrics and rubber, offering excellent elasticity and corrosion resistance. Flanges or outlets are used for pipe connection, ensuring stable installation of the compensator. The thermal insulation materials effectively reduce heat loss and enhance the efficiency of the piping system.

Section II: Product Features

Multidimensional Compensation Capacity: Non-metallic compensators can offer significant axial, angular, and lateral displacements within a small size range, effectively compensating for pipeline displacements caused by factors such as temperature changes, mechanical vibrations, and foundation settling.

Simplified Design: The use of non-metallic compensators simplifies the design of the piping system, eliminating the need for large supports, and saves on material and labor costs.

Noise and Vibration Reduction: The fiber fabric and thermal insulation itself have sound absorption and vibration reduction properties, significantly reducing noise and vibration in systems such as boilers and fans.

High-temperature and corrosion-resistant: The non-metallic compensator is coated with high polymer materials such as silicone and fluorine, offering excellent high-temperature and corrosion-resistant properties, suitable for various harsh environments.

Excellent sealing performance: The non-metallic compensator is produced using advanced manufacturing techniques and a comprehensive assembly system, ensuring no leakage and guaranteeing the safe operation of the pipeline system.

Easy Installation and Maintenance: The non-metallic compensator features a simple structure, making it easy for installation and maintenance, thereby reducing maintenance costs.

Section 3: Application Fields

Non-metallic compensators are widely used in industries such as petrochemicals, food processing, and more, particularly in high-temperature, high-pressure, and corrosive environments. Their excellent adaptability ensures the safe operation of pipeline systems. Additionally, non-metallic compensators are suitable for scenarios like hot air ducts and dust pipelines, effectively compensating for pipeline deformation and extending the lifespan of the pipelines.

Section 4: Selection Recommendations

When selecting a non-metallic compensator, consider the following factors:

Pipe Medium: Different mediums require different materials to accommodate their corrosiveness. Therefore, when selecting a non-metallic compensator, the characteristics of the pipe medium should be fully considered to choose the appropriate material.

Operating Temperature: Non-metallic compensators have a wide range of operating temperatures, but their performance under high temperatures varies depending on the material. Therefore, when selecting a non-metallic compensator, the appropriate material should be chosen based on the actual operating temperature.

Displacement amount: The displacement amount of non-metallic compensators should be determined based on the actual conditions of the pipeline system. Both excessive and insufficient displacement amounts may affect the service life and performance of the non-metallic compensators.

Pipe Diameter and Connection: The diameter and connection of non-metallic compensators should match the pipeline system to ensure stable installation and normal operation.
