Compensators, also known as expansion joints or flexible connectors, are a crucial piece of equipment in modern industry. Their core function is to utilize their elastic deformation capabilities to compensate for axial, angular, lateral, and combined displacements in pipes, conduits, vessels, etc., caused by thermal expansion and contraction, mechanical deformation, or various mechanical vibrations. This unique compensating ability not only ensures the stable operation of the pipeline system but also significantly extends the service life of the pipeline and related equipment.

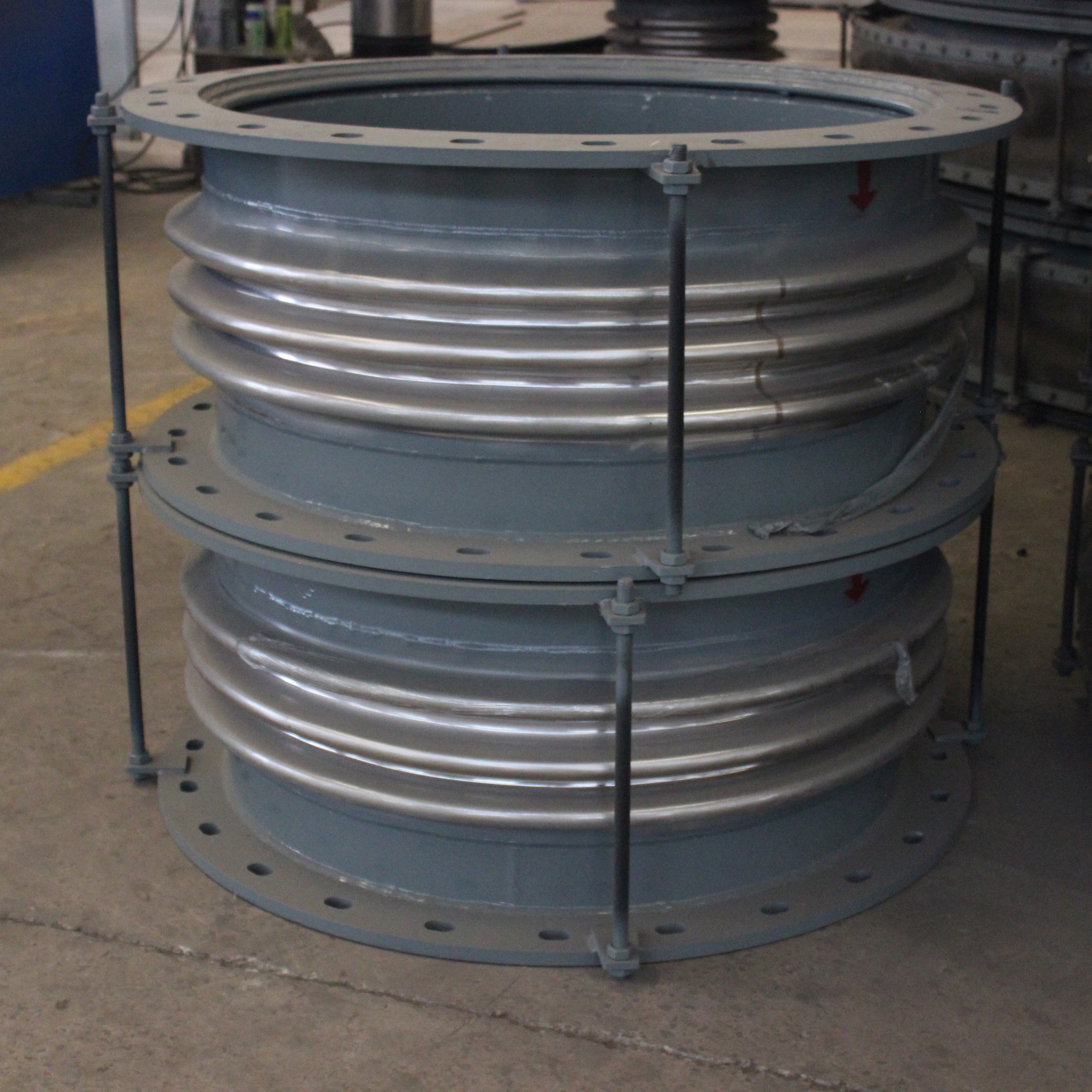

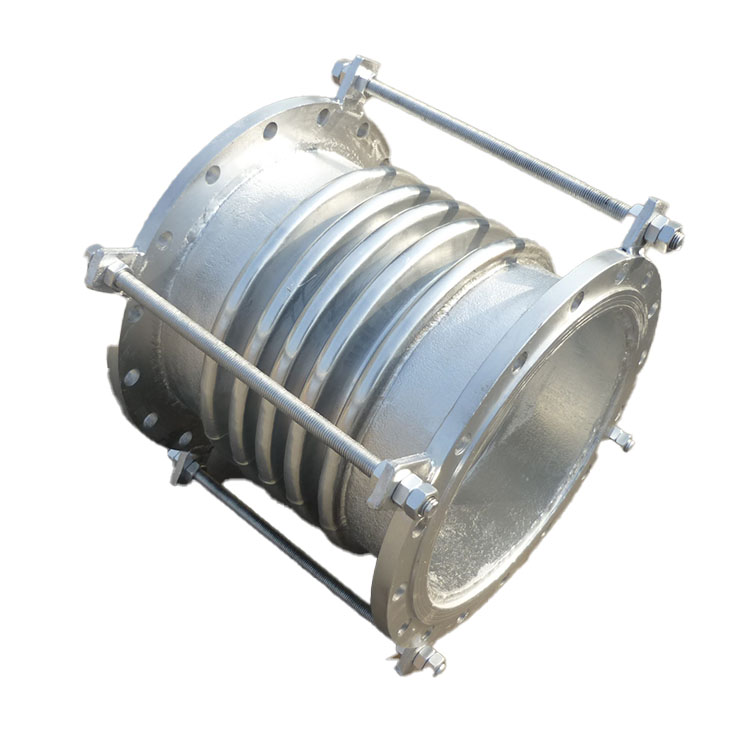

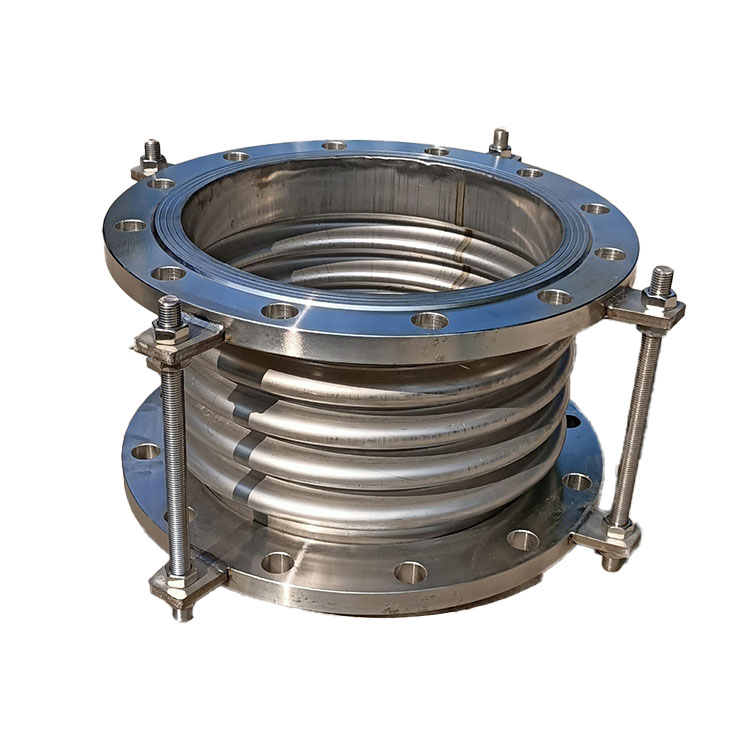

The compensator is mainly composed of bellows, end pipes, supports, flanges, conduits, and other accessories. Among them, the bellows, serving as the main body of the compensator, boasts excellent elasticity and extensibility, capable of quickly responding and absorbing various displacement changes. Meanwhile, the end pipes, supports, and other accessories ensure a firm and stable connection and operation of the compensator with the piping system.
The application range of compensators is extremely wide, covering the进出口 of various pumps, valves, and air compressors, as well as fire protection piping, air conditioning piping, steam piping, and general factory piping requiring flexible connections. Additionally, compensators are extensively used in fields such as domestic water piping, machinery and equipment piping, hot water and steam networks in thermal power plant areas. In these applications, compensators effectively reduce vibration and noise in the piping system, enhancing operational efficiency and stability.
A variety of compensators are available, including axial, lateral, hinged, coal powder three-way, rectangular, high-temperature corrosion-resistant non-metallic, and standard non-metallic bellows compensators. These different types of compensators each have unique features to meet the compensation needs of various pipeline systems. For instance, the axial compensator is primarily used to absorb the axial displacement of pipelines, while the lateral compensator is mainly for absorbing the lateral displacement of pipelines.
