Compensators, also known as expansion joints or flexible joints, are an indispensable key equipment in modern industry. Their core function is to utilize their own elastic deformation capability to compensate for axial, angular, lateral, and combined displacements in pipes, conduits, vessels, etc., caused by thermal expansion and contraction, mechanical deformation, or various mechanical vibrations. This unique compensating ability not only ensures the stable operation of the pipeline system but also significantly extends the service life of the pipelines and related equipment.

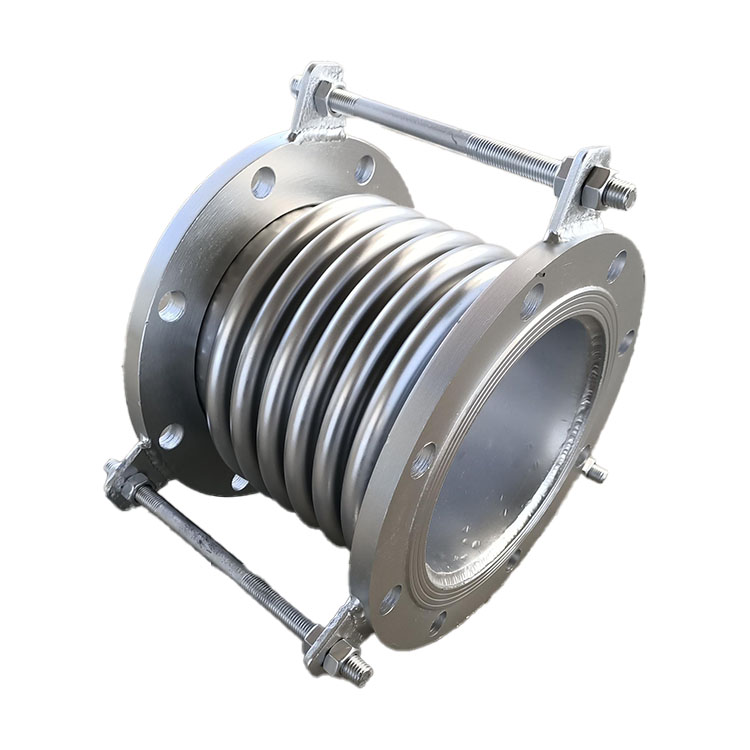

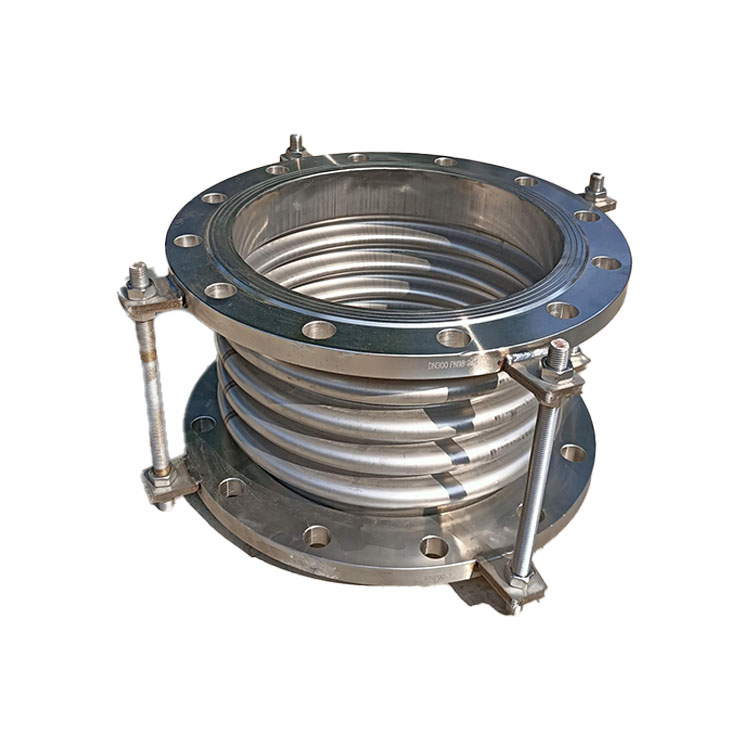

The compensator is mainly composed of bellows, end pipes, brackets, flanges, conduits, and other accessories. The bellows, serving as the main component of the compensator, boasts excellent elasticity and extensibility, capable of quickly responding and absorbing various displacement changes. Meanwhile, the end pipes, brackets, and other accessories ensure a firm and stable connection and operation of the compensator with the piping system.
The expansion joints have a wide range of applications, including the inlets and outlets of various pumps, valves, and air compressors, fire protection piping, air conditioning piping, steam piping, as well as general factory piping and flexible connections. Additionally, they are extensively used in domestic water supply piping, machinery equipment piping, hot water and steam networks in thermal power plant areas. In these applications, expansion joints effectively reduce pipeline system vibration and noise, enhancing operational efficiency and stability.

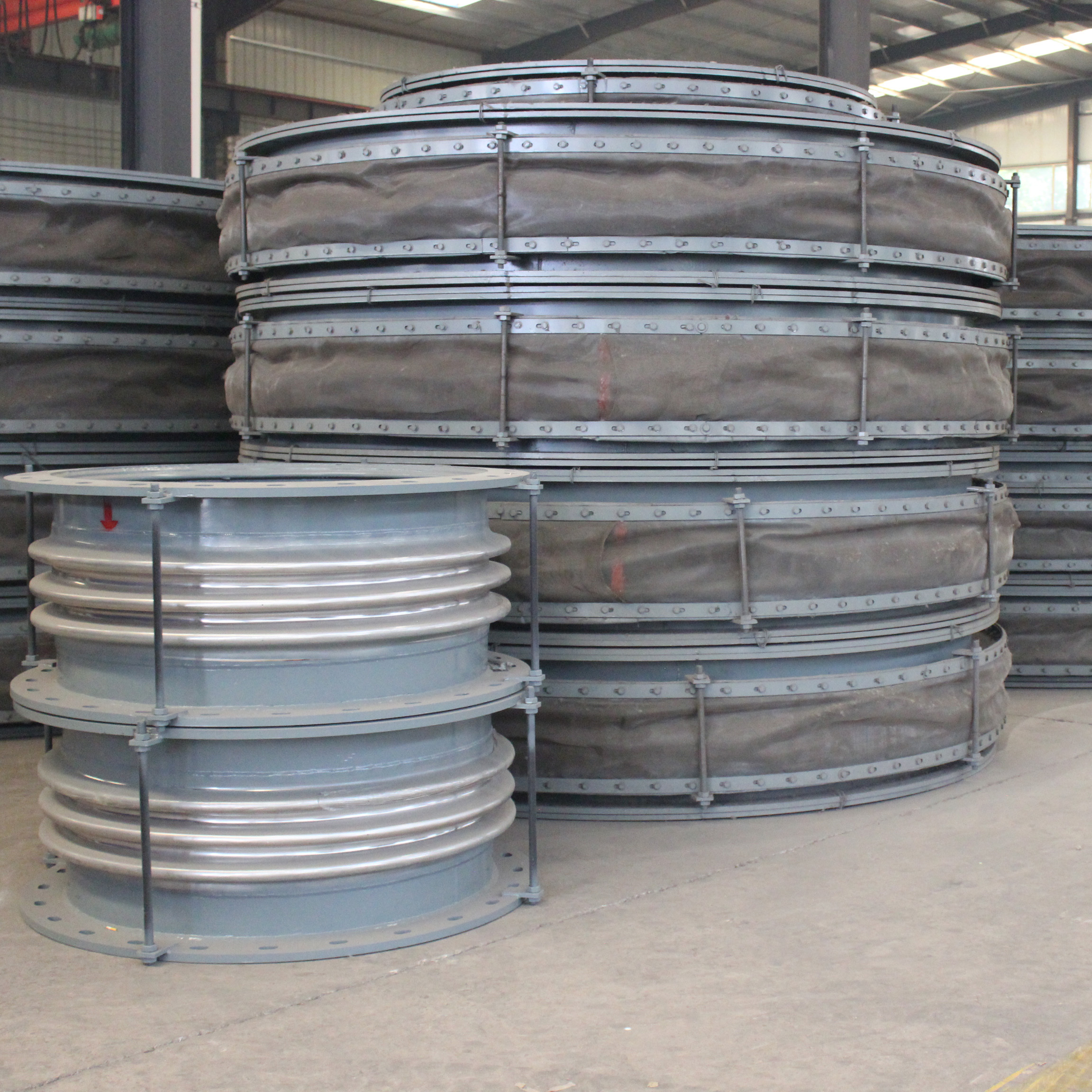

Types of compensators are diverse, including axial, lateral, hinge-type, coal powder three-way, rectangular, high-temperature corrosion-resistant non-metallic, and ordinary non-metallic bellows compensators. Each type of compensator has its unique features and can meet the compensation needs of different pipeline systems. For instance, the axial compensator is mainly used to absorb the axial displacement of the pipeline, while the lateral compensator is primarily used for absorbing the lateral displacement of the pipeline.
