Compensators, also known as expansion joints or bellows, are an indispensable key equipment in modern industry. Their core function is to utilize their own elastic deformation capabilities to compensate for the axial, angular, lateral, and combined displacements of pipes, conduits, vessels, etc., caused by thermal expansion and contraction, mechanical deformation, or various mechanical vibrations. This unique compensating ability not only ensures the stable operation of the pipeline system but also significantly extends the service life of the pipeline and related equipment.

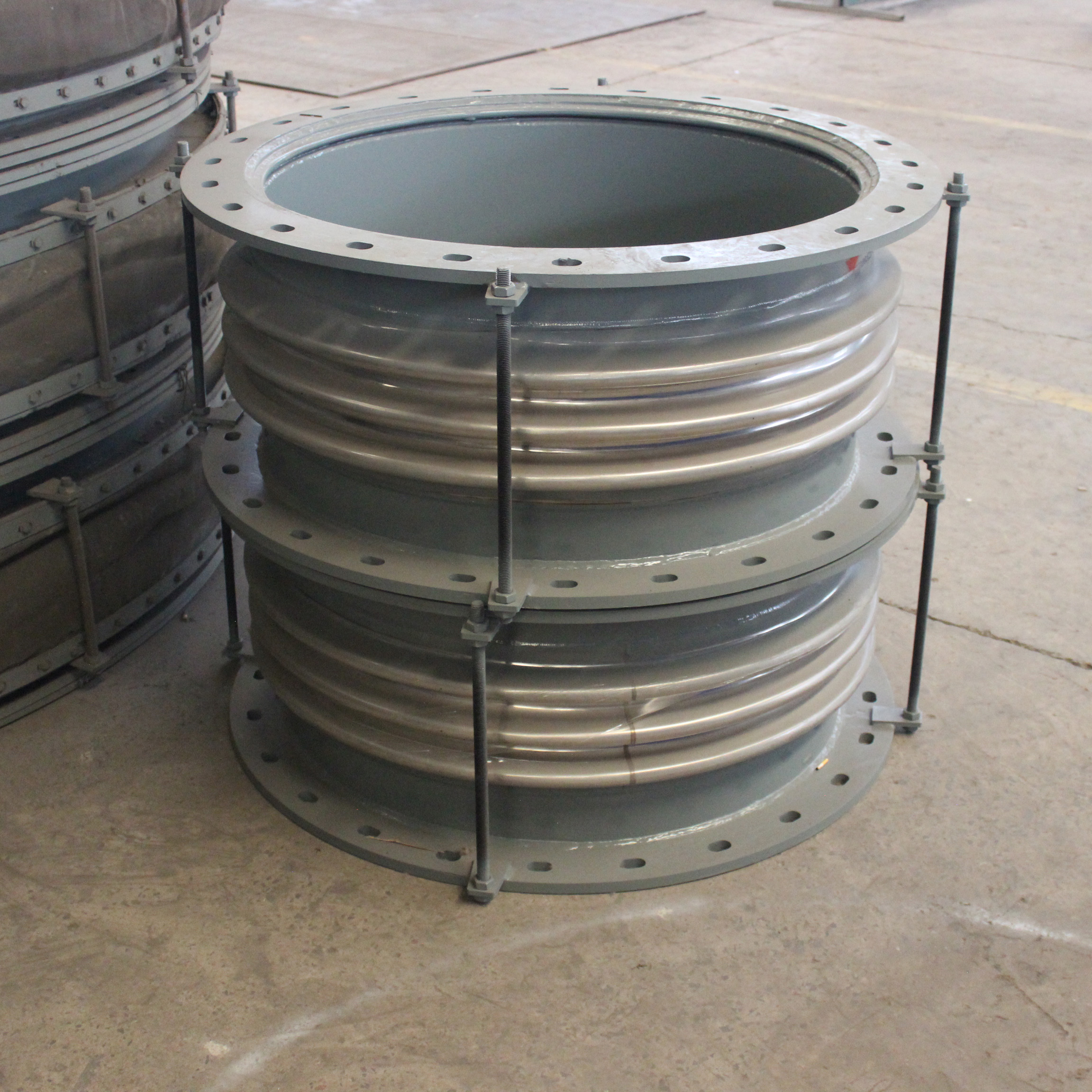

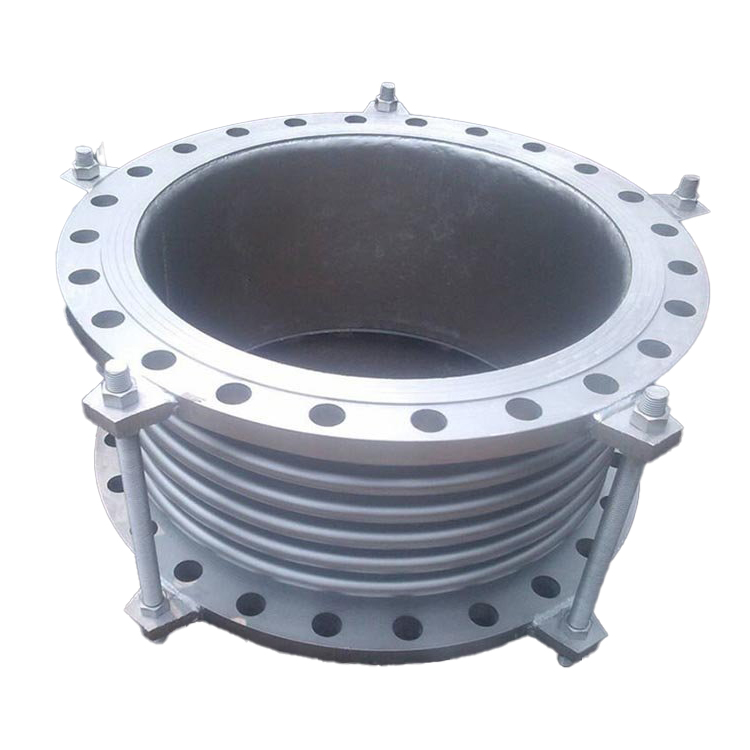

Compensators are mainly composed of bellows, end pipes, brackets, flanges, conduits, and other accessories. Among them, the bellows serve as the main component of the compensator, offering excellent elasticity and flexibility, capable of rapidly responding and absorbing various displacement changes. Meanwhile, the end pipes, brackets, and other accessories ensure a firm and stable connection and operation of the compensator with the piping system.
The compensator has a wide range of applications, including the inlet and outlet of various pumps, valves, and air compressors, fire protection piping, air conditioning piping, steam piping, as well as general factory piping and flexible connections. Additionally, compensators are extensively used in domestic water piping, machinery and equipment piping, hot water and steam networks in thermal power plant areas. In these applications, compensators effectively reduce pipeline system vibration and noise, enhancing operational efficiency and stability.
Types of compensators are diverse, including axial, lateral, hinge-type, coal powder three-way, rectangular, high-temperature corrosion-resistant non-metallic, and ordinary non-metallic bellows compensators. These different types of compensators each have unique features and can meet the compensation needs of various pipeline systems. For instance, the axial compensator is mainly used to absorb the axial displacement of pipelines, while the lateral compensator is primarily used to absorb the lateral displacement of pipelines.
