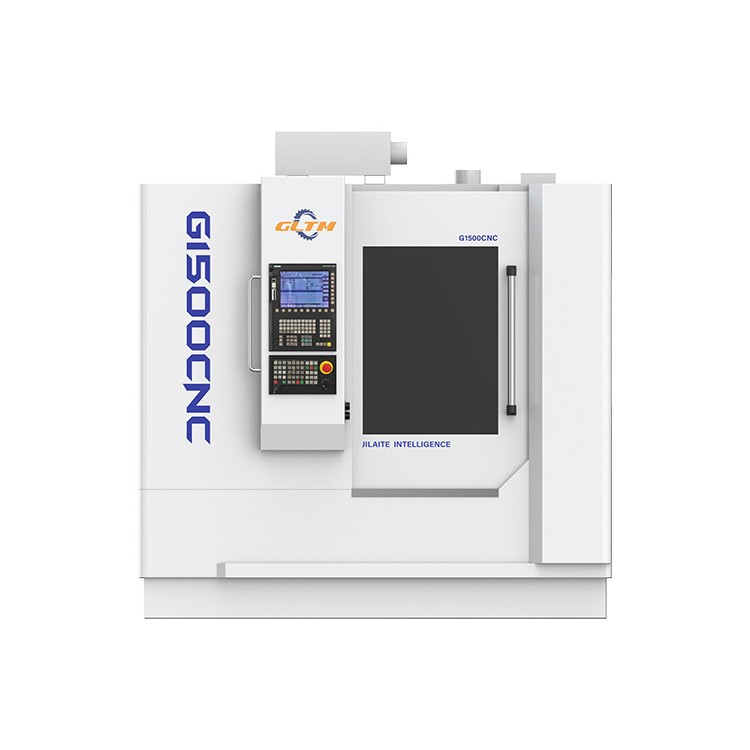

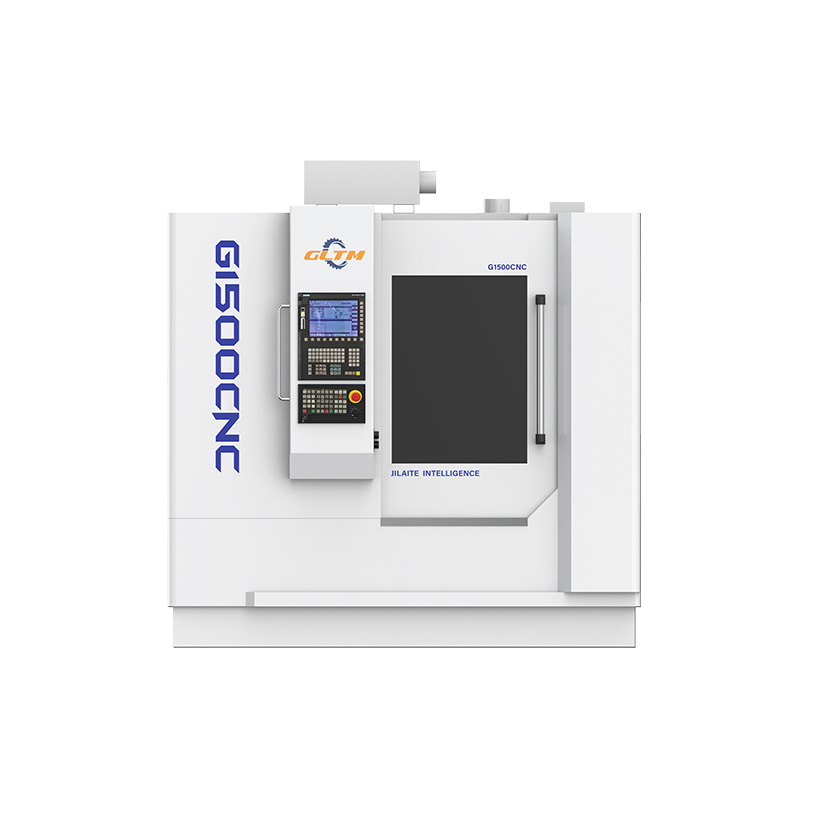

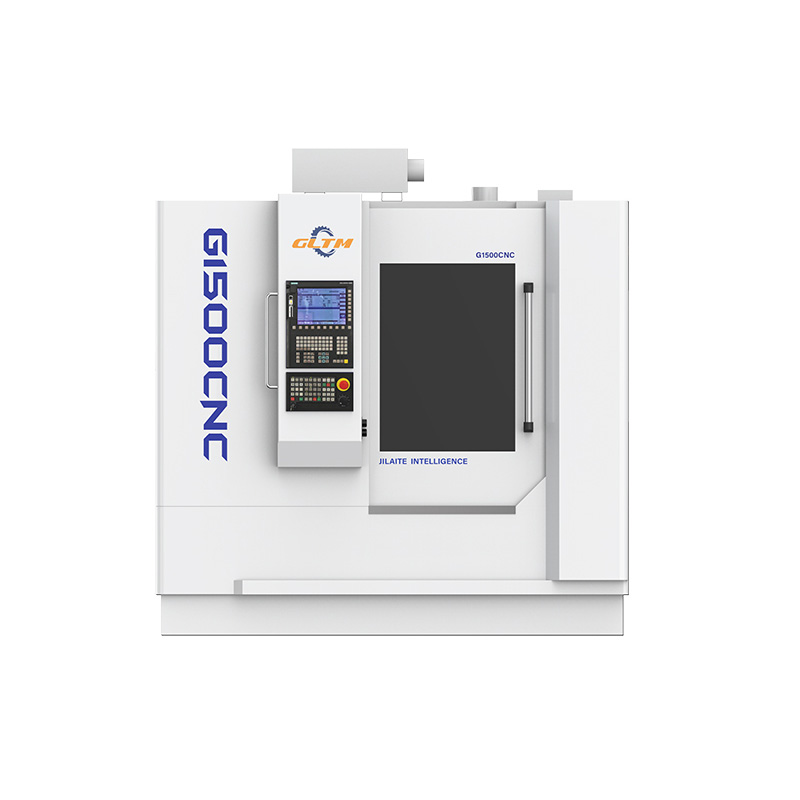

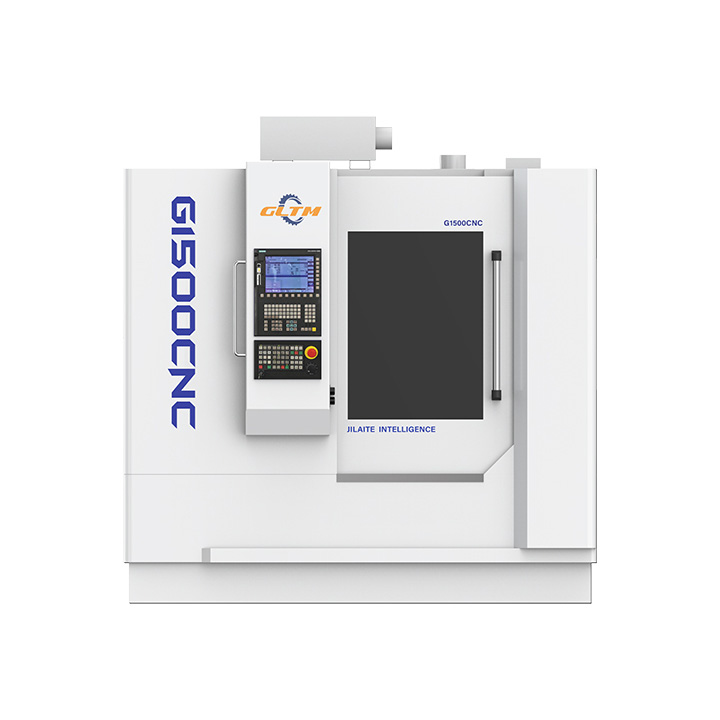

G1500 CNC High-Efficiency Gear Hobbing Machine

Product Features

This series of high-efficiency CNC hobbing machines processes cylindrical straight gears, cylindrical helical gears (shaft gears, disk gears), worm gears, small cone gears, drum gears, spline shafts, sprockets, synchronous belt pulleys, and other specialized gear types. The machine tools are primarily cast with double-walled, high-web design, and have been verified through finite element analysis, ensuring both overall rigidity and stability of the machine tools.

• Machining centers are available in three configurations: 5-axis, 6-axis, and 7-axis.

• The toolholder can be hydraulically automatically tensioned and relaxed, facilitating the user in changing tools and shortening the tool setting time.

• Both the X and Z axes are equipped with high-rigidity hard rail structures, ensuring the machine tool has exceptional rigidity.

• The C-axis is equipped with a high-precision torque motor direct drive or other transmission method, ensuring both the precision of the worktable indexing and the cutting torque.

• The Y-axis features a direct-drive system with a reducer and servo motor, ensuring precise tool feed and extending tool life, while also maintaining the overall rigidity of the machine tool.

• Guides are high-precision linear guides or rigid guides, powered by hydraulic cylinders to ensure precise movement of the guides and ease of machine adjustment.

• Equipped with a rotating feature to prevent wear on the center hole during use and enhance rotation accuracy.

• Optional for automatic loading/unloading and chamfering machine automation connection.

Technical Specifications

Standard Configuration

Optional

Note: The final parameters are as per the technical agreement
