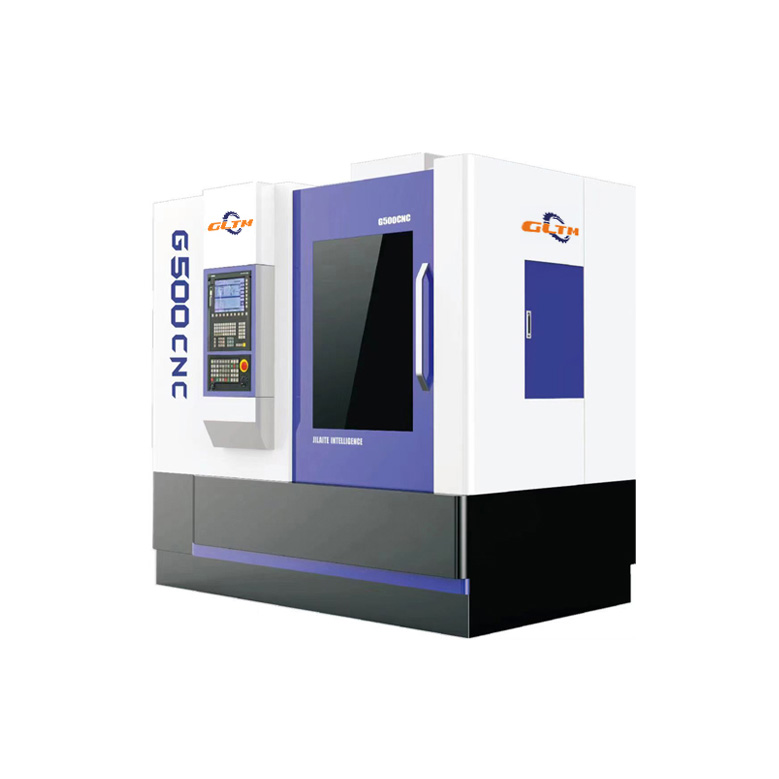

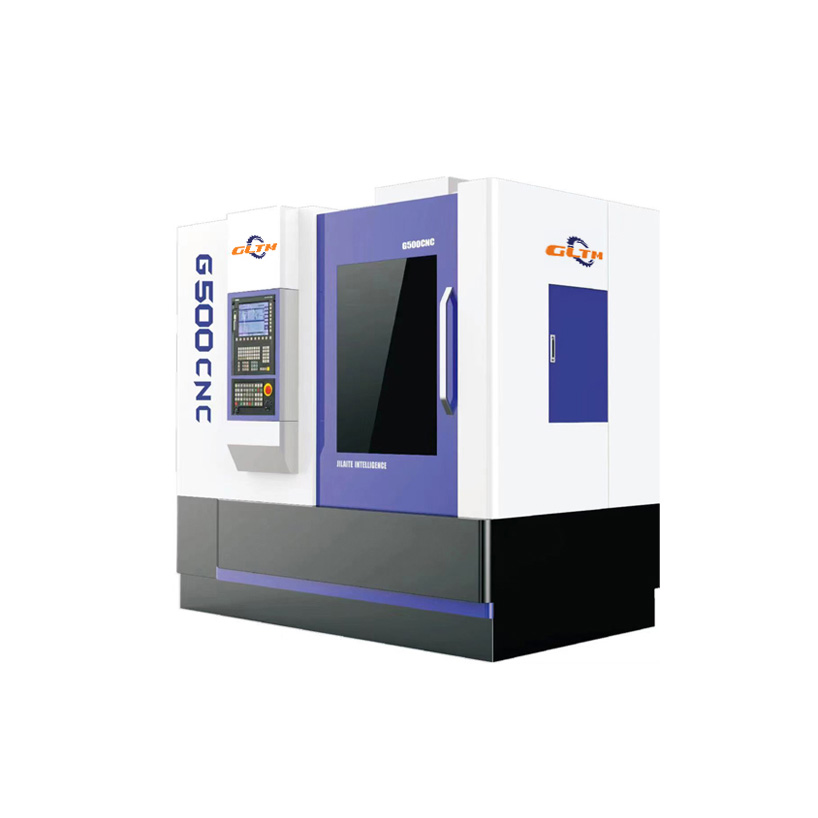

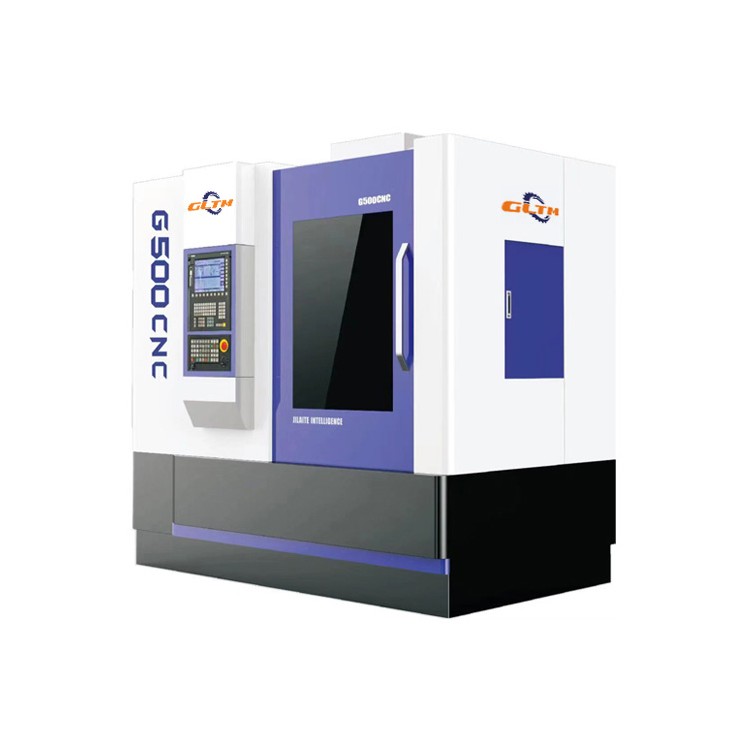

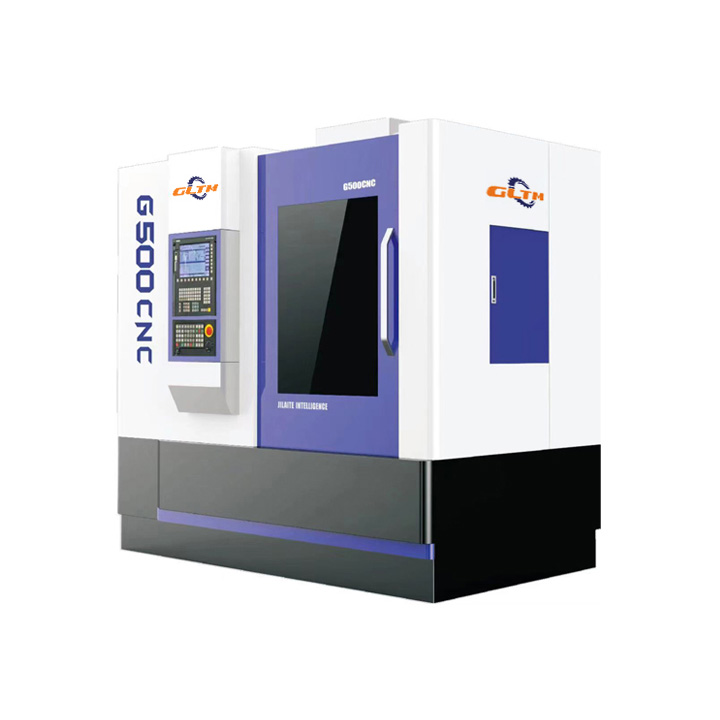

G500 CNC High-Efficiency Gear Shaping Machine

Product Features

This series of high-efficiency CNC hobbing machines processes cylindrical straight gears, cylindrical helical gears (spur gears, disk gears), worm gears, small bevel gears, drum gears, spline shafts, sprockets, synchronous belt pulleys, and other specific tooth shapes using the involute method. The machine tools are primarily cast with double-walled, high-web structure design, and have been verified through finite element analysis, ensuring both the overall rigidity and stability of the machine tools.

• Machining centers are available in three configurations: 5-axis, 6-axis, and 7-axis.

• The toolholder can be hydraulically automatically tensioned and relaxed, facilitating user tool changes and shortening the tool adjustment time.

• Both the X and Z axes feature high-rigidity hard rail structures, ensuring the machine tool has excellent rigidity.

• The C-axis employs a high-precision torque motor direct drive or other transmission methods, ensuring both the worktable indexing accuracy and the cutting torque.

• The Y-axis is driven directly by a decelerator and a servo motor, ensuring precise tool positioning and extending the tool life, while also maintaining the overall rigidity of the machine tool.

• Top-grade guide ways are high-precision linear ways or rigid ways, driven by oil cylinders to ensure the precision of the guide way movement and the ease of machine adjustment.

• Equipped with a rotating tip to prevent wear on the center hole when using a fixed tip, and enhances the rotation accuracy of the tip.

• Optional for automatic loading/unloading and chamfering machine automation connection.
