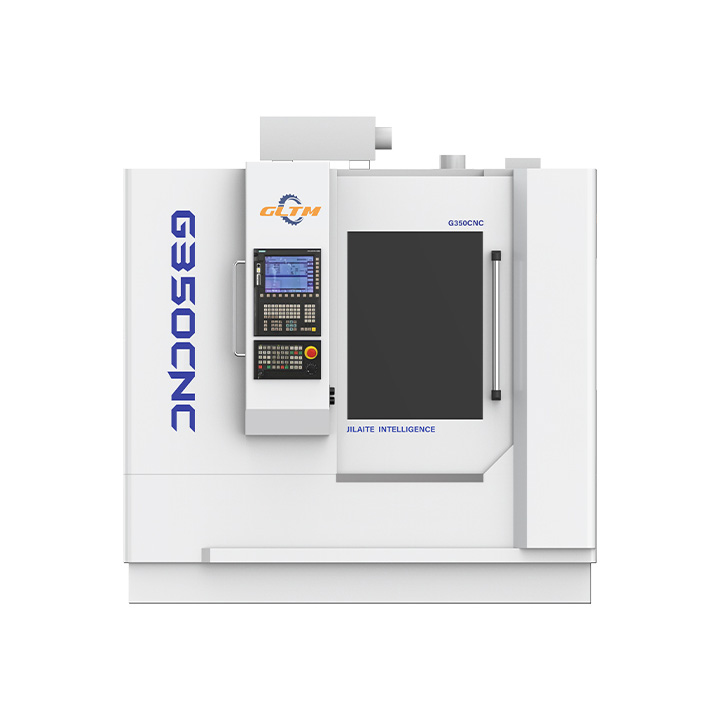

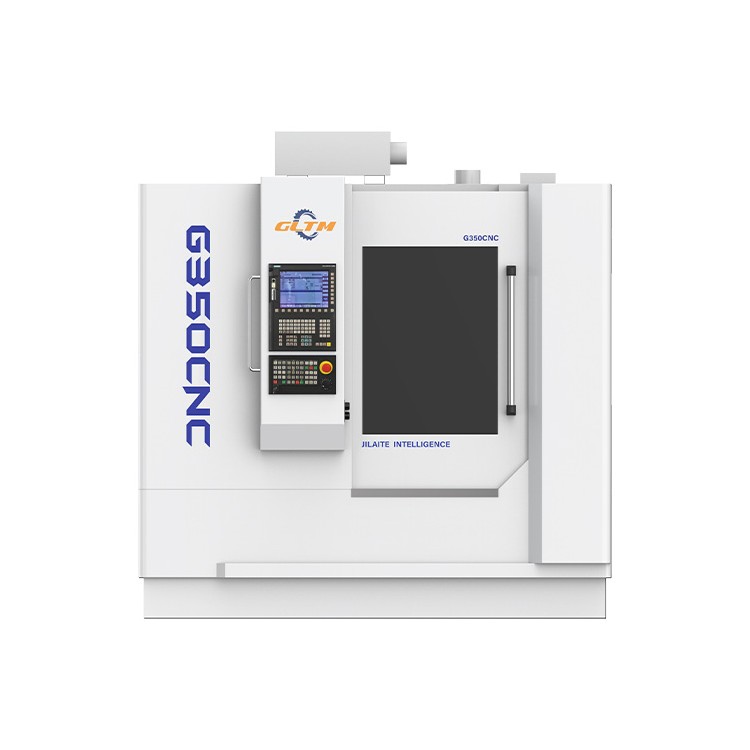

G350 CNC High-Speed Gear Hobbing Machine

Product Features

This series of high-speed and efficient CNC hobbing machines employs the involute method to process cylindrical straight gears, cylindrical helical gears (shaft gears, disc gears), worm gears, small bevel gears, drum gears, spline shafts, sprockets, synchronous belt pulleys, and other specific tooth profiles. The machine tools are primarily cast with double-walled, high-web structure design, which, after finite element analysis, ensures both the overall rigidity of the machine tool and its stability.

• Machining centers are available in three configurations: 5-axis, 6-axis, and 7-axis.

• The tool holder can be hydraulically automatically tensioned and relaxed, facilitating the user's tool change and shortening the knife adjustment time.

• Both the X and Z axes are equipped with high-rigidity hard rail structures, ensuring the machine tool has exceptional rigidity.

• The C-axis utilizes a high-precision torque motor for direct drive or another transmission method, ensuring both the precision of the worktable indexing and the cutting torque.

• The Y-axis is driven directly by a decelerator and a servo motor, ensuring precise tool positioning and extending tool life, while also maintaining the overall rigidity of the machine tool.

• Top-tier guideways are precision linear guides or hard guides, powered by hydraulic cylinders to drive the point movement, ensuring the motion accuracy of the guideways and ease of machine adjustment.

• Equipped with a rotating tip to prevent wear on the central hole when using a fixed tip, and enhances the precision of the tip rotation.

• Optional for automatic loading and unloading and chamfering machine automated connection.

Technical Specifications

Standard Configuration

Optional

Note: The final parameters are governed by the technical agreement
