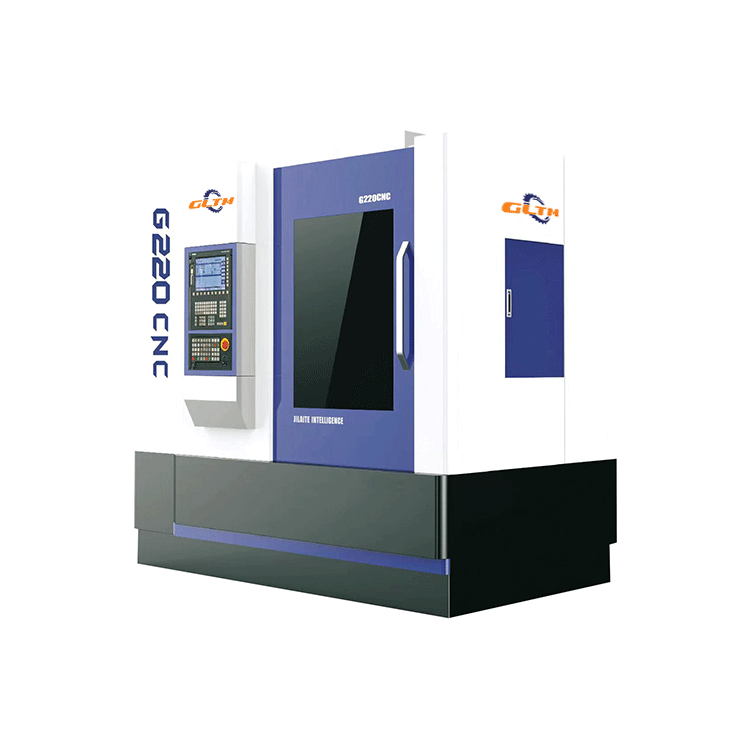

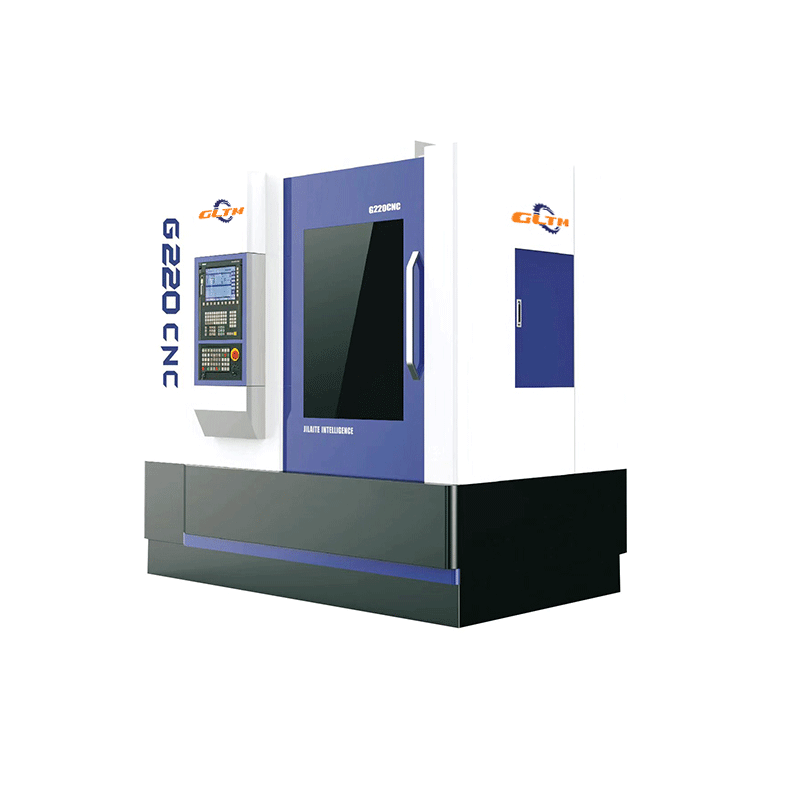

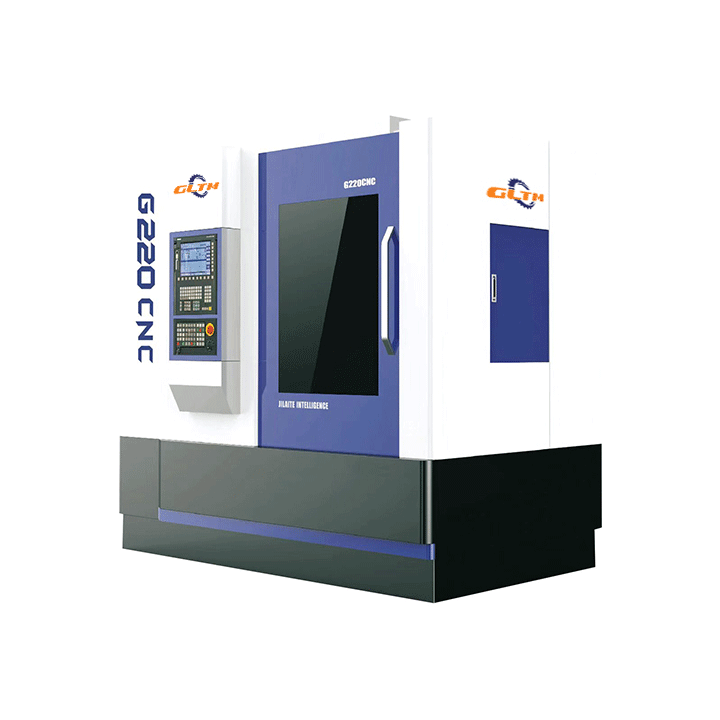

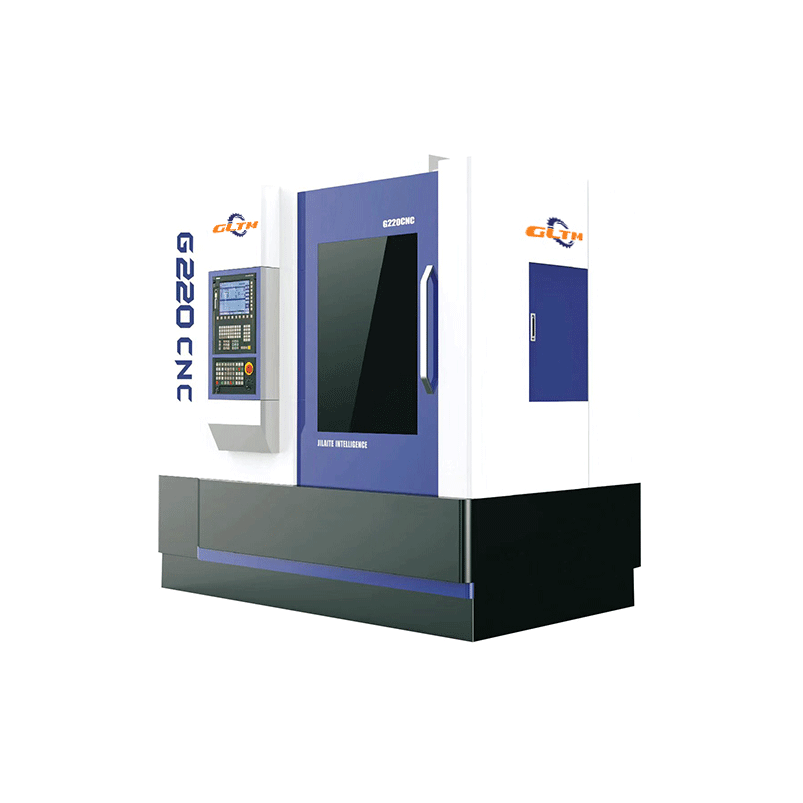

G220CNC High-Speed CNC Gear Shaping Machine

Product Features

This series of high-speed, high-efficiency CNC hobbing machines employs the involute method to process cylindrical straight gears, cylindrical helical gears (shaft gears, disc gears), worm gears, small bevel gears, drum gears, splines, chain gears, synchronous belt pulleys, and other specific tooth shapes. The machine tools are primarily cast in a double-walled, high-web design, and have been optimized through finite element analysis, ensuring both overall rigidity and stability of the machine tool.

• Machining centers are available in three configurations: 5-axis, 6-axis, and 7-axis.

• The tool holder features hydraulic automatic tensioning and relaxation, making it convenient for users to change tools and reducing the time required for tool adjustment.

• The X and Z axes feature a high-rigidity hard rail structure, offering exceptional precision and rigidity.

• The C-axis features a high-precision torque motor direct drive, ensuring the precision of the worktable indexing while allowing users to freely select high-precision models or high-efficiency models based on the process and working condition requirements.

• The Y-axis is driven directly by a servo motor, ensuring precise tool feed and extending tool life, while also maintaining the overall rigidity of the machine tool.

• The top guide rail features high-precision linear rail, powered by an oil cylinder to drive the top movement, ensuring the accuracy of the top guide rail and the ease of machine adjustment.

• The processing area is equipped with stainless steel inner protection, completely separating the processing area for easy chip removal.

• Optional precision secondary tool setting device for precise secondary hard scraping of hard gears.

• Equipped with a rotating tip to prevent wear on the center hole when using a fixed tip, and improves the rotation accuracy of the tip.

• Optional automatic loading/unloading and chamfering machine automation connection.
