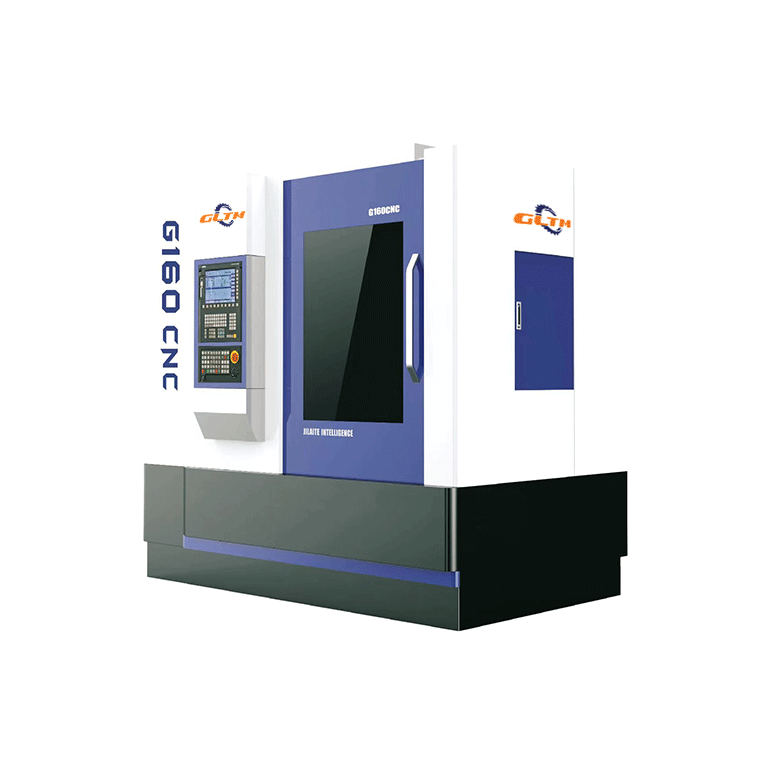

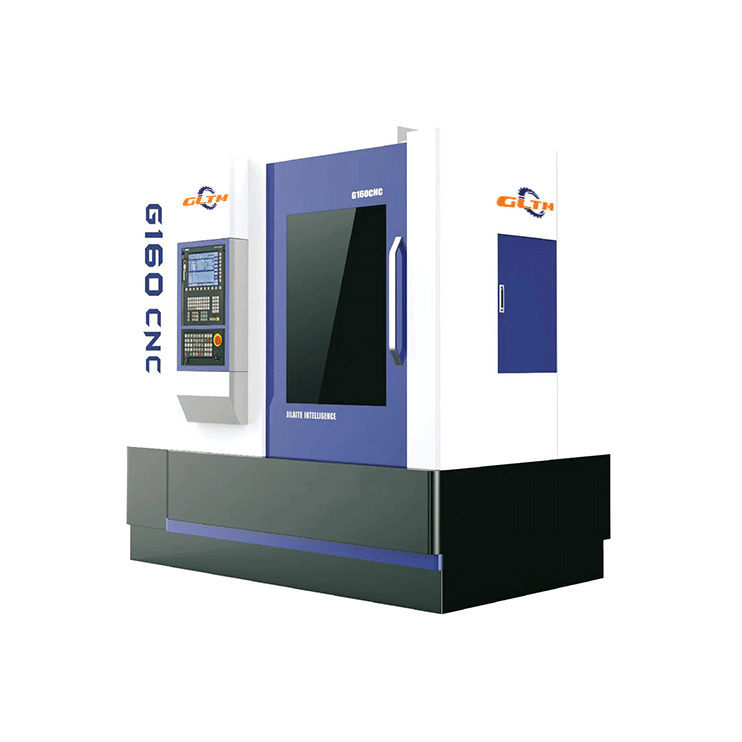

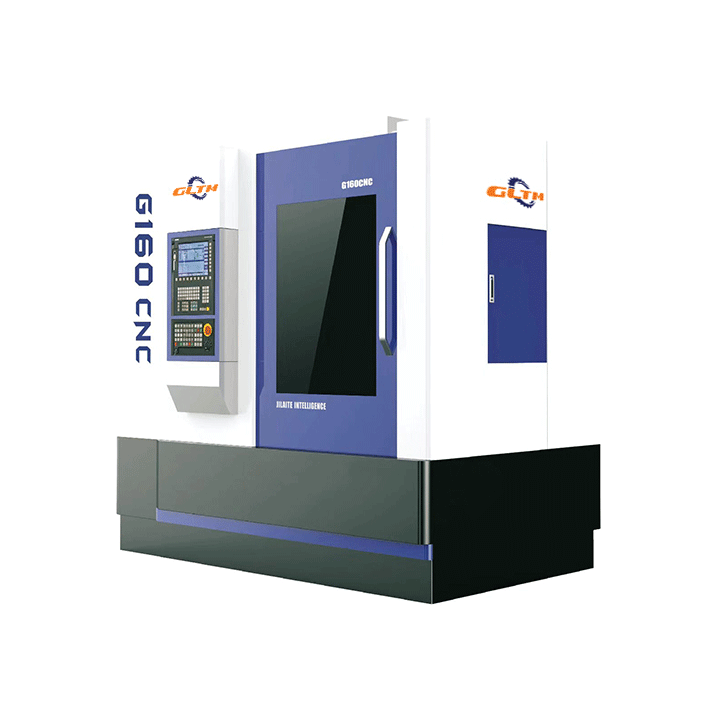

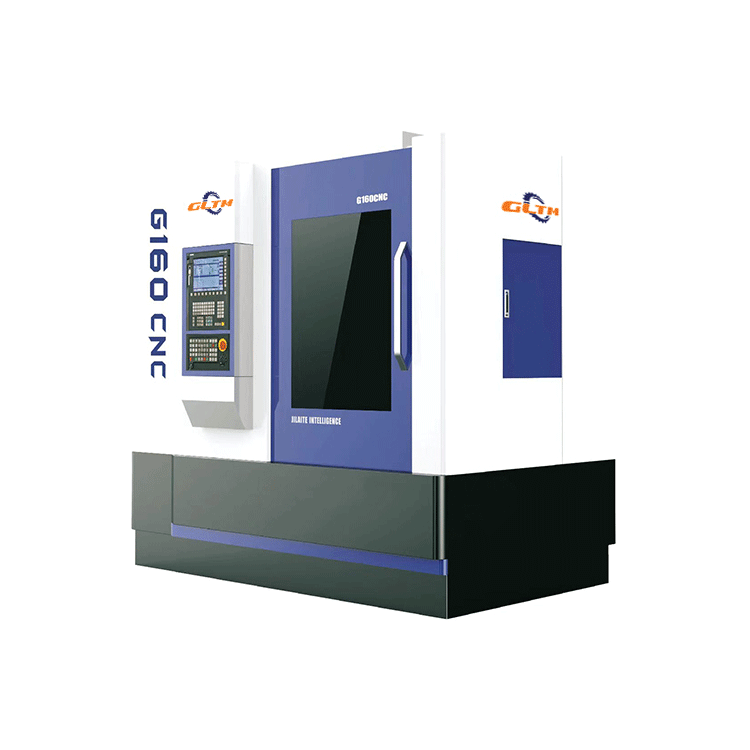

G160 CNC High-Speed Gear Shaping Machine

Product Features

This series of high-speed, high-efficiency CNC hobbing machines utilizes the involute method to process cylindrical straight gears, cylindrical helical gears (shaft gears, disk gears), worm gears, small bevel gears, drum gears, spline shafts, sprockets, timing belt pulleys, and other specific gear types. The machine tools are primarily cast with double-walled, high-web structure design, and have been verified through finite element analysis, ensuring both the overall rigidity and stability of the machine tools.

• Machining centers are available in three configurations: 5-axis, 6-axis, and 7-axis.

• The toolholder features hydraulic automatic tensioning and release, making it convenient for users to change tools and reducing the time required for tool adjustment.

• The X and Z axes feature a high-rigidity hard rail structure, offering exceptional precision and rigidity.

• The C-axis features a high-precision torque motor direct-drive type, ensuring the precision of the worktable indexing while allowing users to freely choose between high-precision models or high-efficiency models based on process and working condition requirements.

• The Y-axis is directly driven by a servo motor, ensuring precise tool shifting and extending the tool life, while also maintaining the overall rigidity of the machine tool.

• Top-grade guide ways are high-precision linear guides, powered by hydraulic cylinders to drive the tip movement, ensuring the precision of the guide way's motion and the ease of machine adjustment.

• The processing area is equipped with stainless steel inner protection, completely separating the processing area for easy chip removal.

• Optional precision secondary knife setting for precise secondary hard scraping of hard teeth.

• Equipped with a rotating tip to prevent wear on the center hole when using a fixed tip, and enhances the rotational accuracy of the tip.

• Optional automatic loading/unloading and chamfering machine automation integration.

Technical Specifications

Standard Configuration

Optional

Note: The final parameters are as per the technical agreement.
