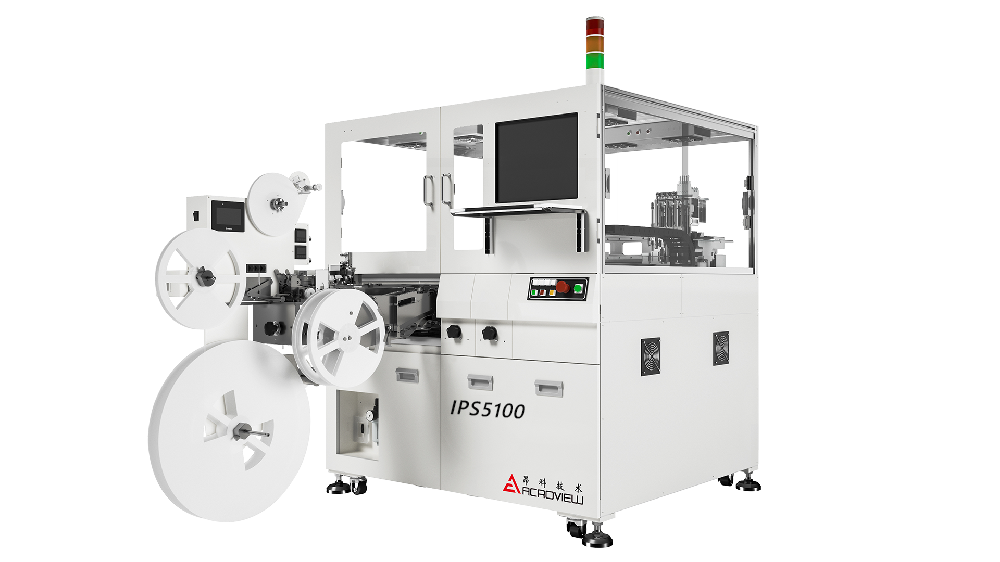

Equipped with 8 newly developed program burners, the verification speed is 40% faster than the existing equipment.
Recorder can be directly connected via LAN for easy wiring. Original program can be downloaded at high speed through the network port.
The recorder is equipped with 8 8-port burning stations, and their reasonable interaction and operation achieve high-speed production efficiency.
Standard with an overhead camera, it can flexibly be used for various data center coordinate registrations while correcting images during the automatic production process. This feature allows for quick and easy slot coordinate alignment, and chip misalignment caused by tray reset can be automatically corrected during operation.
Standard with a bottom-mounted camera, enabling more convenient features such as automatic plug coordinate correction, tray disk coordinate registration, and IC/module QR code reading.
Easily switch between models without any special tools.
Equipped with a large-size LCD touch screen, a high-capacity AutoTray, and unique features such as MES compatibility and superior production status logging management, all characteristic of the PH series.
The compact and rational design makes a device with the capability of burning 72 chips appear to be compactly constructed and well-arranged.
Flexible to accommodate various flat chips (TSOP, CSP, QFP, TQFP, μBGA, etc.).
The transport tray can accommodate 20 JEDEC trays.
Optional Tape In/Tape Out, Tube In/Tube Out, allowing for flexible conversion between Tray, Tape, and Tube packaging.
XYZ1Z2Z3Z4θ5 high-precision servo stepping hybrid control, achieving high-speed, high-precision, and stable product handling.
The PPZ features a four-head design for enhanced conveying efficiency and speed.
The PPZ four-axis can achieve the same pick and place inside the socket with fixture positioning, further enhancing the transportation efficiency.
Optional Stamp agencies available to meet Tray/Tape/Tube stamping and dotting requirements.
Programmer Burner
Recorder: A8000 (Acroview) - 8 units
Corresponding Chips: Flash Storage Chips, Single-Chip Internal Memory Storage
Programming Sequence: Data Erase (Erase), Blank Check (Blank), Program Write (Program), Verification (Verity); can be reprogrammed according to different requirements.
External Interface: LAN
Processor
Corresponding Types: TSOP, BGA, QFP, TQFP, SOP, etc. Chip Packaging
Corresponding Slot: Open-top Slot Exclusive
Processing Capacity: MAX 3000
(At 8 units with 8 ports, burning time within 170 seconds does not affect UPH when IC is not affected)
Chip Transfer: 7-axis, four-head high-speed P&P servo stepper motor hybrid drive
Decomposition capability: 0.004mm
Reset Accuracy: ±0.02mm
θ-axis resolution: 0.18°
Fully Automatic Coordinate Logging: Optional
Pallet Loader: Corresponds to JEDEC, EIAJ pallets
20 discs loaded prior to program burning
20 good lots of programmed burn load disks
Defective items storage capacity: 1 tray
Marking Printing: Standard Equipment: Printing Machines Using Pigment Inks for Market Sale
Choose from: Semiconductor-Specific Inkjet Printer with Fade-Resistant Printing
Dot marking, text marking may
Operating System: FA PC OS: Windows 10
Input Device: LCD touch screen, keyboard, barcode reader (optional)
Supported Network: Ethernet
Model conversion time: Less than 10 minutes (excluding ROM data transfer time)
Air Usage: 0.4-0.5 Mpa, 50 l/min
Power: 100-220V AC, 50/60Hz, 15A, approx. 1300VA
Dimensions and Weight: (D) 1140, (W) 1300, (H) 1500 (mm) - Approx. 1000 Kg
