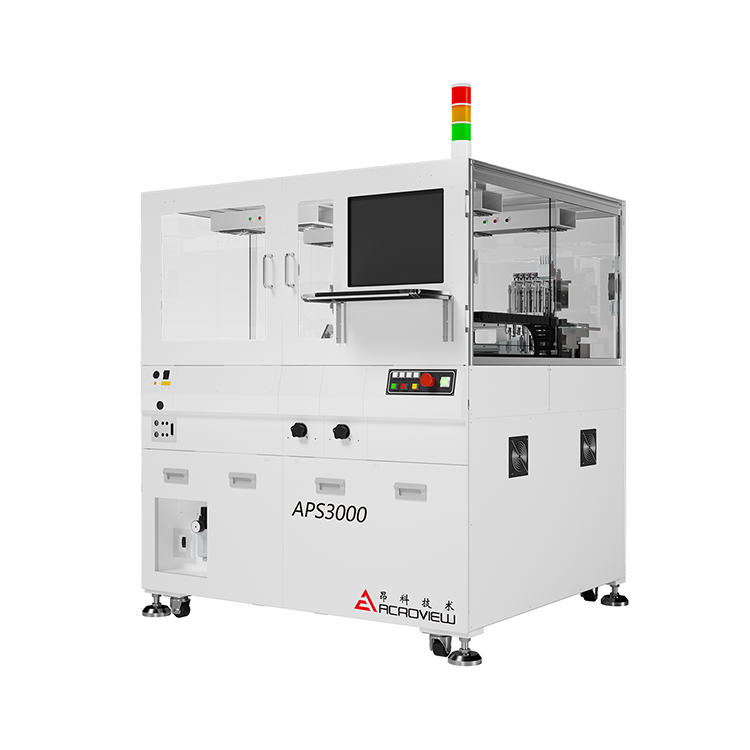

Equipped with 8 newly developed program burners, the verification speed is 40% faster than the existing equipment.
■ The burner can be directly connected via LAN for easy wiring. The original program can be downloaded quickly through the network port.
Equipped with 8 recorders featuring 8-port recording stations, the efficient interaction between them achieves rapid production speed.
Standard with an overhead camera, it allows for flexible use in various data center coordinate logins while correcting images during the automatic production process. This feature not only completes the cumbersome slot coordinate positioning with a single click but also automatically corrects chip misalignment caused by tray reset during operation.
Standard with a downward-facing camera, facilitating advanced functions such as automatic correction of socket coordinates, automatic logging of Tray disk coordinates, and reading of IC/module QR codes.
■ The machine type conversion can be easily done without any special tools.
■ Equipped with a large-sized LCD touch screen, high-capacity AutoTray, and unique features of the PH series such as MES compatibility and superior production status logging management.

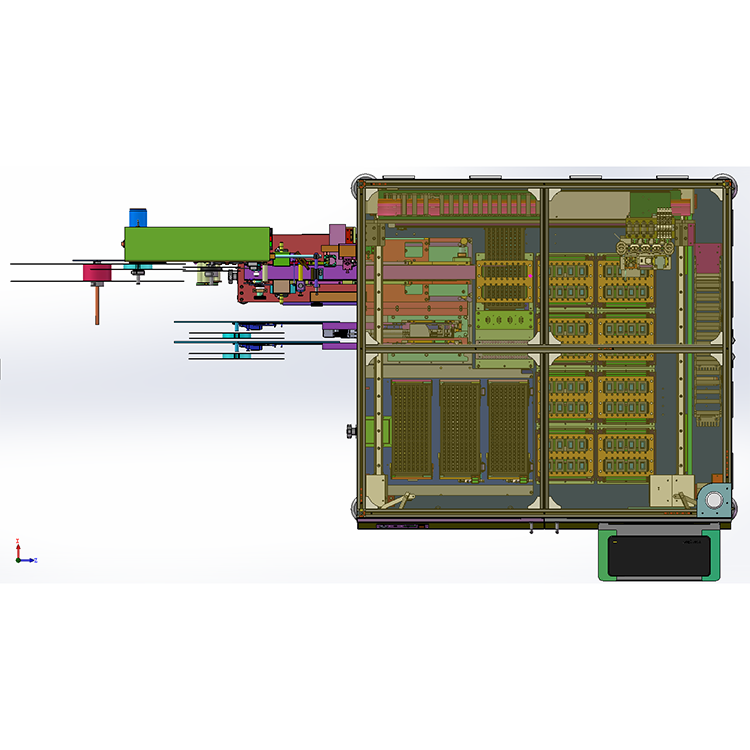

The compact and reasonable design ensures that a device with the capability to burn 72 chips appears to be well-constructed and logically arranged.
■ Flexible to accommodate various flat package chips (TSOP, CSP, QFP, TQFP, μBGA, etc.).
The pallet carrier can accommodate 20 JEDEC-type trays.
Optional Tape In/Tape Out, Tube In/Tube Out, allowing for flexible packaging conversions between Tray, Tape, and Tube.
XYZ1Z2Z3Z4θ5 high-precision servo stepping hybrid control, achieving high-speed and high-precision stable product handling.
The PPZ features a four-head design for enhanced conveying efficiency and faster speed.
The PPZ four-axis can achieve the same pick and place inside the socket with fixture positioning, further enhancing the transportation efficiency.
■ Optional Stamp Agencies available to meet Tray/Tape/Tube stamping and marking requirements.
Programmer Burner
Recorder: A8000 (Acroview) - 8 units
Corresponding Chips: Flash Storage Chips, Single Chip Internal Memory Storage
Programming Sequence: Data Erase, Blank Check, Program Write, Verification; reprogramming available as per different requirements.
External Interface: LAN
Processor
Corresponding Types: TSOP, BGA, QFP, TQFP, SOP, etc. Chip Packages
Corresponding Slot: Top-Open Slot Exclusive
Processing Capacity: MAX 3000
(At 8 units with 8 ports, IC recording time within 170 seconds does not affect UPH)
Chip Handling: 7-axis, 4-head high-speed P&P servo stepping motor hybrid drive
Decomposition capability: 0.004 mm
Reset Accuracy: ±0.02 mm
θ-axis decomposition capability: 0.18°
Fully Automatic Coordinate Logging: Optional
Tote Loader: Corresponds to JEDEC, EIAJ trays
20 disks loaded prior to programming burn
Programmed good disk loads: 20 disks
Defective items storage capacity: 1 bin
Marking Printing: Standard Equipment: Printing Machines Using Pigment Inks for Market Sale
Choose from: Semi-conductor dedicated inkjet printers with fade-resistant print technology
Dot marking, text marking may
Operating System: FA PC, OS: Windows 10
Input Device: LCD touch screen, keyboard, barcode reader (optional)
Network Support: Ethernet
Model conversion time: Less than 10 minutes (excluding ROM data transfer time)
Air Usage: 0.4Mpa - 0.5Mpa, 50 l/min
Power: 100-220V AC, 50/60Hz, 15A, approx. 1300VA
Dimensions and Weight: (D) 1140, (W) 1300, (H) 1500 mm, approximately 1000 Kg
