Stainless Steel Wavy SpringA thin annular elastic metal element composed of several peaks and valleys. The product is made by spring steel 65Mn through special heat treatment methods. The hardness is generally controlled between HRC 44-55 according to specific conditions, with a blackened surface and good elasticity. Wave springs are widely used in industries such as motors, textile machinery, hydraulic equipment, and automobiles. They are mainly installed in bearing chambers or holes of suitable specifications (nominal dimensions), featuring a small installation space and special noise reduction and vibration reduction functions.

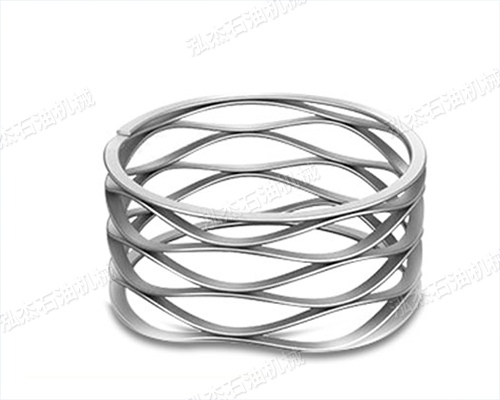

Multi-loop wave springs are made of thin spring strips, particularly suitable for applications requiring weight reduction and limited installation space. Whether in free height or working height, multi-loop wave springs are significantly lower than conventional circular helical springs; to achieve the same spring force, wave springs can save up to 50% of installation space and 70% of spring weight. Wave springs are especially suitable for applications that need weight reduction and are limited by smaller installation spaces. Typical application fields include aerospace, precision machinery, hydraulic sealing, and motors.
