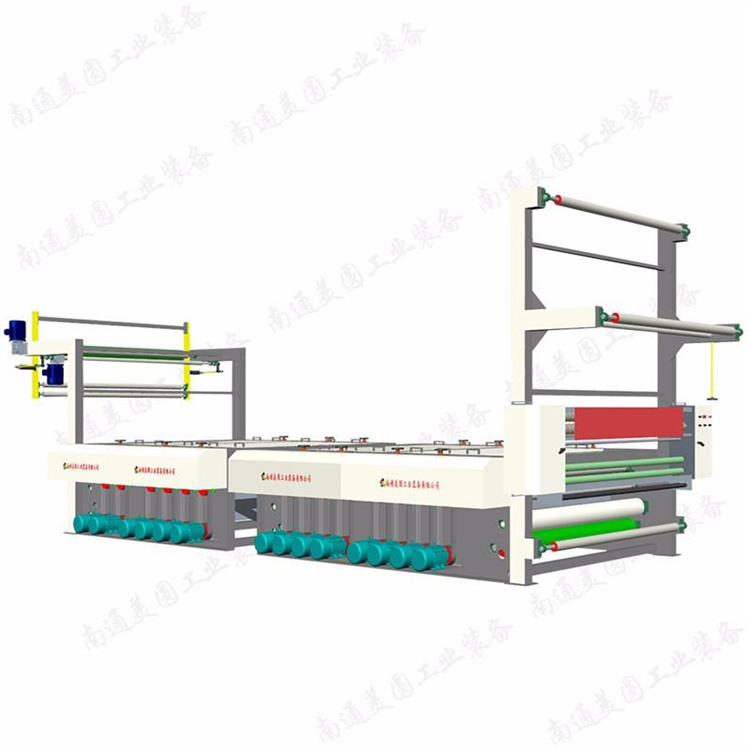

To Grind Series——Double-sided plush finishing machine
The "To Grind" series of abrading machines features the following characteristics:
A：This series of napped machineLarge area, stable operation.
The series of abraded machines is highly adaptable to fabrics, capable of both dry and wet grinding.
C: The carded cloth machine is versatile, allowing for easy modification to change the weaving lines for double-sided napping.
Key Technical ParametersTechnical Date:） | |
Nominal WidthWork width） | 1600~3200（mm） |
Rated PowerInstalled power） | ≈76~116（KW） |
Mechanical speedProduction Speed ） | 5-80（m/min） |
Grinding Roller DiameterBrush Roll Diameter） | Φ215、Φ288（mm） |
Air PressureCompressed air value） | 0.6（Mpa） |
Mechanical WeightMachine weight） | ≈10~20（T） |
DimensionsShape size） | ≈11800X5200X3800（mm） |
Standard Configuration | Select Configurationnal configuration） |
Φ215Sandpaper roller | Grinding Roller Abrasive MaterialOptional ImportedOriginalCarbon rollers, Imported ceramic rollers |
Domestic branded motors and reducers | Carded rollerQuantities can be customized within the allowable structure. |
Domestic Brand Electrical Accessories | ElectricityGases, mechanical parts, and other main components availableChoose SIEMENS and othersLargeBrand |
Photoelectric Centering | Choose edge guides for fabric entry. |
Manual Pressing Fabric | Optional Electric Ironing Press |
Electrical cabinetIntegratedTouchscreen | OptionalIndividual modular electric control cabinet |
4 vacuum cleaners | |
