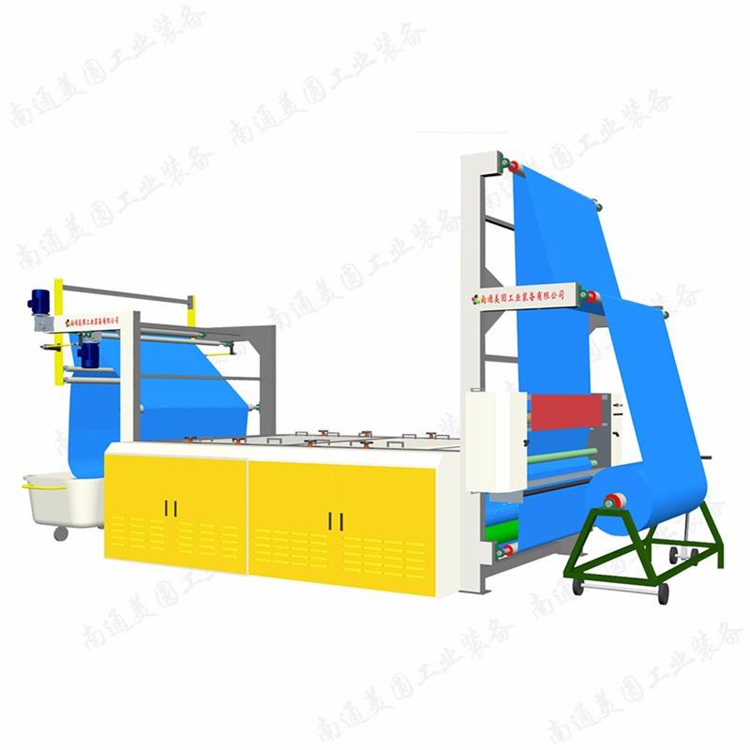

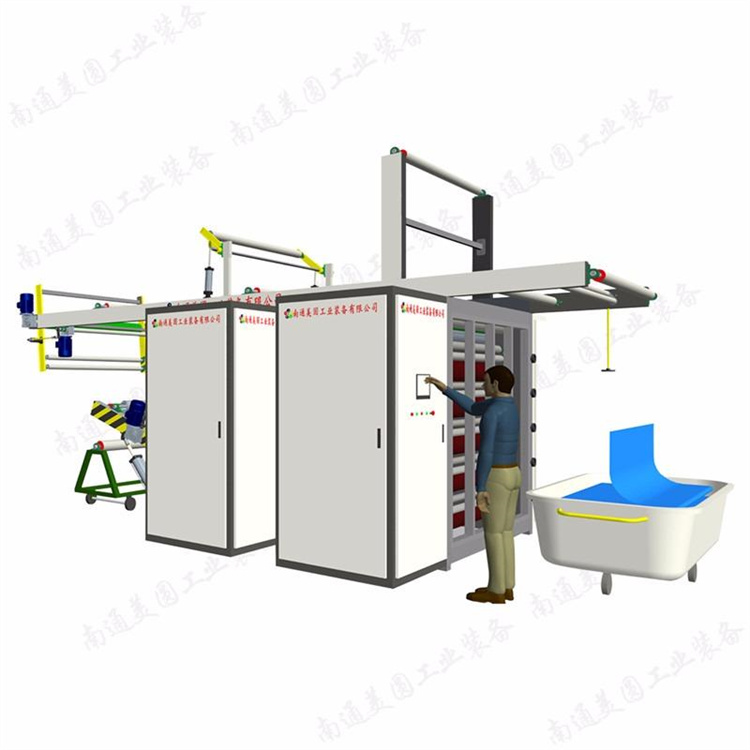

I-Mill Series Single-Sided Brushed Machine
This series of napped machine features the following:Features：
Small footprint, wide application range.
B：This seriesThe abrader can be used for both weaving and knitting.
Key Technical ParametersTechnical Date:） | |
Nominal WidthWork width） | 1600~3200（mm） |
Installed Power RatingInstalled power） | ≈53~65（KW） |
Mechanical SpeedProduction Speed ） | 5~70（m/min） |
Grinding Roller DiameterBrush Roll Diameter） | ≈Φ215（mm） |
Air PressureCompressed air value） | 0.6（Mpa） |
Mechanical WeightMachine weight） | ≈4~8（T） |
Dimensions (Shape size） | ≈5500X6580X3000（mm） |
Standard Configuration | Select Configurationnal configuration） |
Inbound fabric racks | The number of Rolla units can be customized, subject to the limitations of the structure. |
A setSandpaper abraded plushMain Unit | Abrasive options availableImported originalCarbon FiberRollerCeramic FiberRoller |
Swag Drop Fabric | 可选 abrasive outer diameter |
Manual Pressing Fabric | Mechanical and electrical components availableSIEMENSPending |
Electrical cabinetIntegrated electrical control cabinetTouchscreen | Optional independent electrical cabinet +Split-typeControl Box |
OneBaghouse Dust Collection System | The fabric section can be optionally selected in large roll sizes. |
BrandedElectrical and mechanical components | Electric Pressing Cloth Optional |
Optional knitting machinery structure | |
