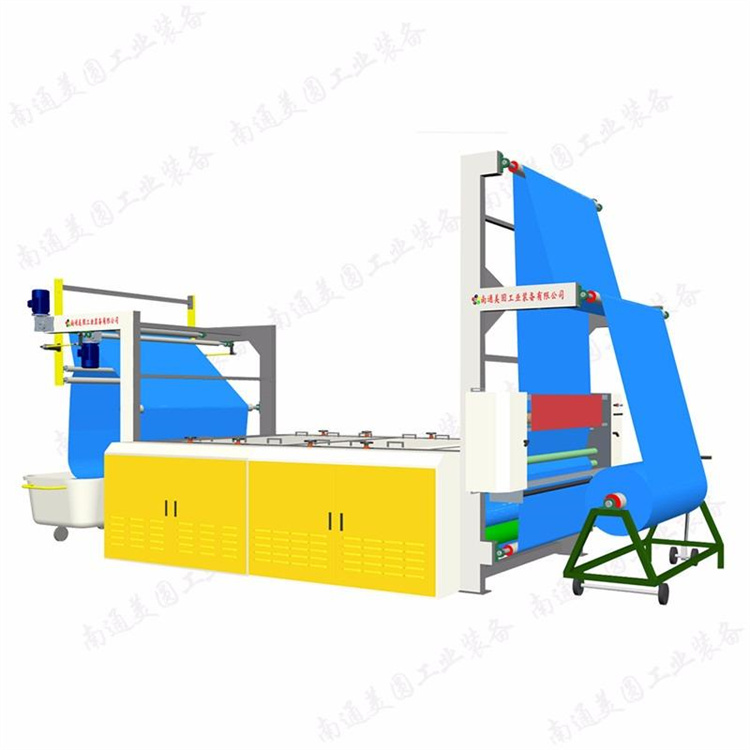

To Grind Series Single-Sided
Key Technical ParametersTechnical Date:) | |
Nominal WidthWork width) | 1800~3200(mm) |
Rated PowerInstalled power) | ≈40~80(KW) |
Mechanical SpeedProduction Speed ) | 5~60(m/min) |
Grinding Roll DiameterBrush Roll Diameter) | ≈Φ215(mm) |
Air PressureCompressed air value) | 0.6(Mpa) |
Mechanical WeightMachine weight) | ≈5~10(T) |
DimensionsShape size) | ≈7000X5200X3800(mm) |
Standard Configuration | Select Configurationnal configuration) |
High-position fabric intake | Carded roller abrasiveOptional Carbon Fiber RollSandpaper rollerDenier count can also be selected. |
Optical Centering | Subject to the main frame structure, additional features such as abraded roller and bristle roller can be installed. |
Sandpaper roller abrasive main unit | Optional electric control |
TwoGroupSuctionDust system | AvailableSelf-contained independent touch control box |
Swag Drop Cloths | Electrical and mechanical accessoriesSIEMENSWait |
Manual press cloth | |
IndependentElectrical cabinet + touch screen control | |
Branded Electrical AppliancesMechanical components |
