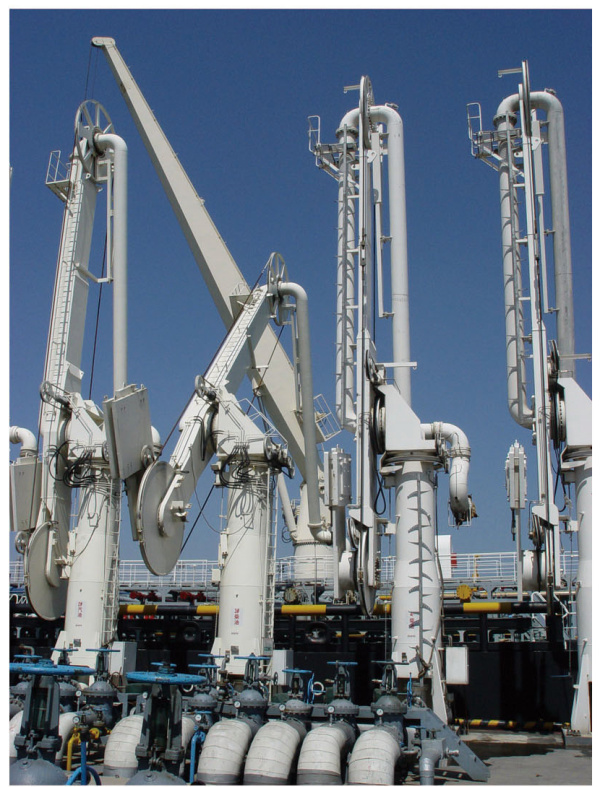

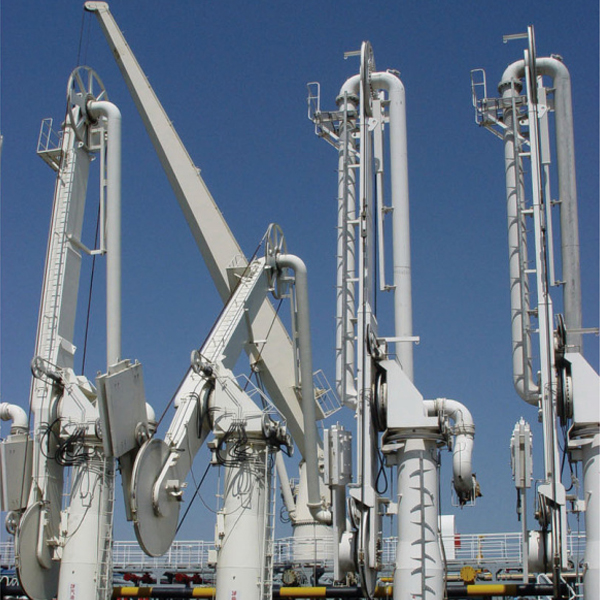

The marine fluid handling arm is a specialized equipment used for transferring liquids or gases between terminals and tankers, consisting of rotating joints with features such as flexible rotation, good sealing, and the ability to withstand harsh environments. Below is a detailed explanation provided by the editor of a鹤管 manufacturer for the marine fluid handling arm:

During transmission, follow the barge's normal drift range.

Based on the different arm diameter, model, and load capacity, manual operation or electro-hydraulic control can be adopted.

The loading and unloading arm can be designed in carbon steel, stainless steel, or PTFE-lined carbon steel pipe, depending on the type of transmission medium and temperature.

Nominal Diameter: DN100 ~ DN400

Design Temperature Range: -196℃ to +300℃

Design pressure: -0.095 MPa to 6.0 MPa

Equipped with an emergency disconnection system, allowing for immediate separation between the barge and the loading/unloading crane.
