One,Purpose of the Machine

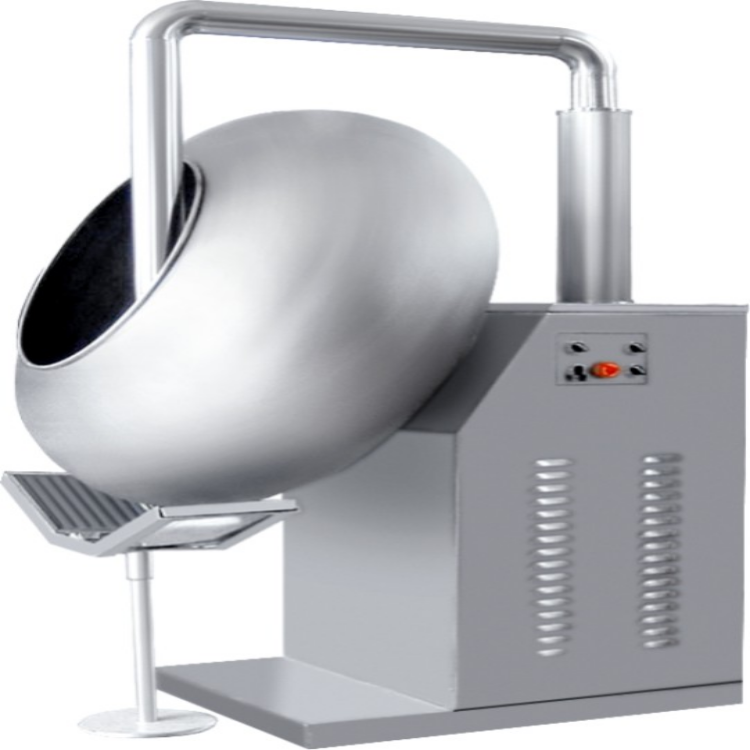

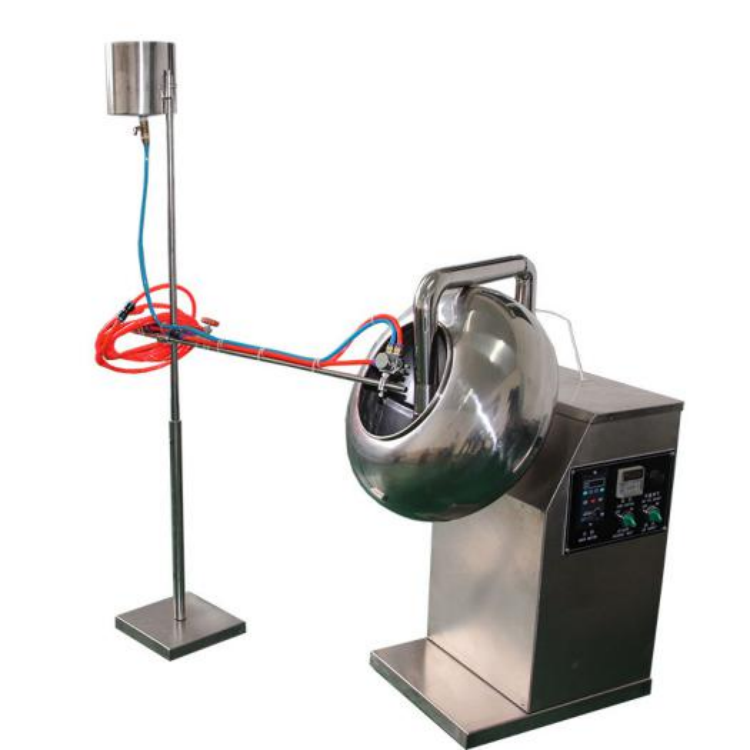

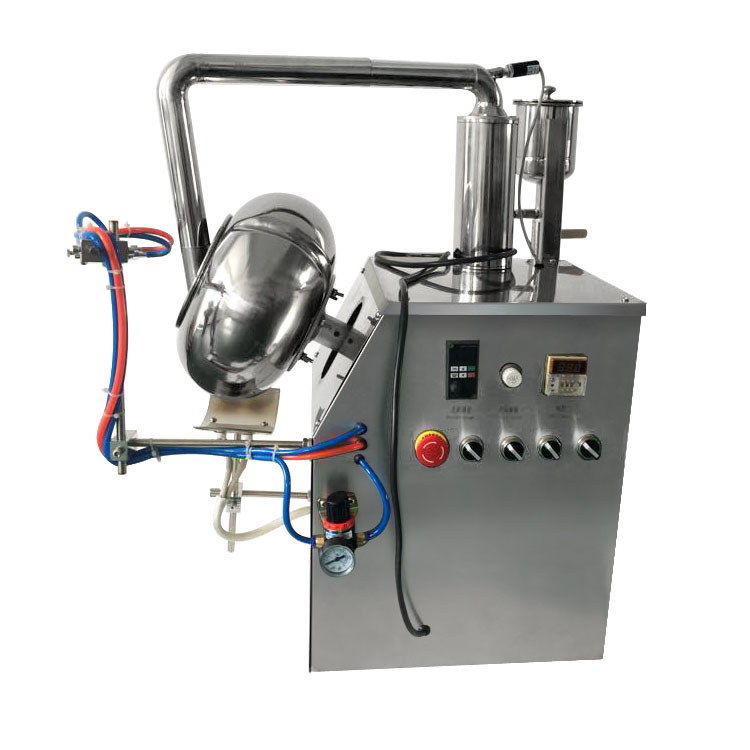

The Water Chestnut Coating Machine is primarily used for coating and polishing tablets, capsules, and granules in the pharmaceutical industry. It can also be applied in the food and chemical industry for丸making or coating polishing.

Coated and polished sugar-coated tablets with a glossy surface, featuring a complete solid shell formed from the crystallization of the surface sugar powder, can also prevent oxidation and deterioration, moisture absorption, or volatilization of the tablets. Additionally, they can mask the unpleasant taste of the tablets, making them easily identifiable and facilitating dissolution in the human gastrointestinal tract.

Two,Working Principle and Structural Characteristics

1Working Principle

To ensure the chips are coated evenly with a crystalline film on their surface as quickly as possible, and to achieve polishing, it is necessary to spray the sugar syrup solution into the pot with manual operations in stages.+Mixed slurry pieces are rotated clockwise in the pot, causing the sugar-coated tablets to roll and slide, frictionally grinding to ensure even distribution across all chips. This results in qualified coated tablets. The machine ensures a stable linear speed to form a good logistics curve for the tablets in the pot, meeting the requirements for uniform thickness of the sugar coating, bright coloration, and no occurrence of speckles.

2Structural Features:

① Machine movement

This unit is a package and equipment for one-way, low-speed continuous rotation, powered by a variable-speed motor to rotate the pot.

② Structural Characteristics

AAdvanced and reliable reducers usedIntegrated gear reducer. The reducer is lubricated using a full-sealed immersion lubricant that is less prone to drying out.

BThe hot air drying unit employs electric heating.
