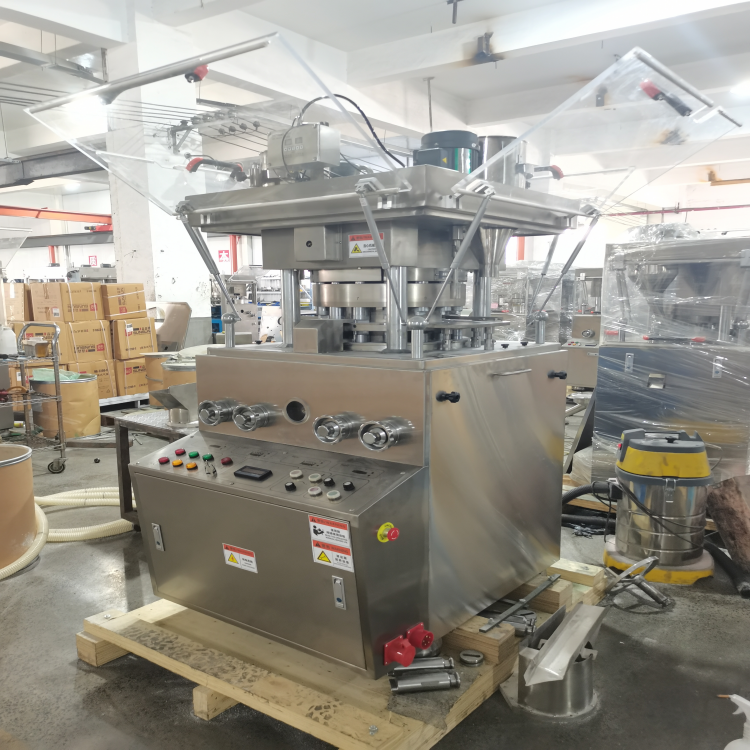

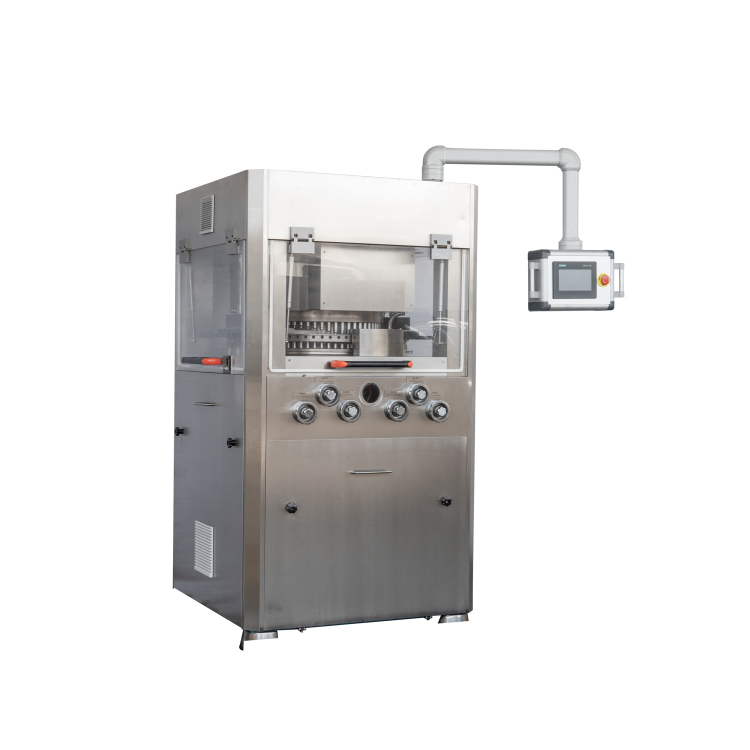

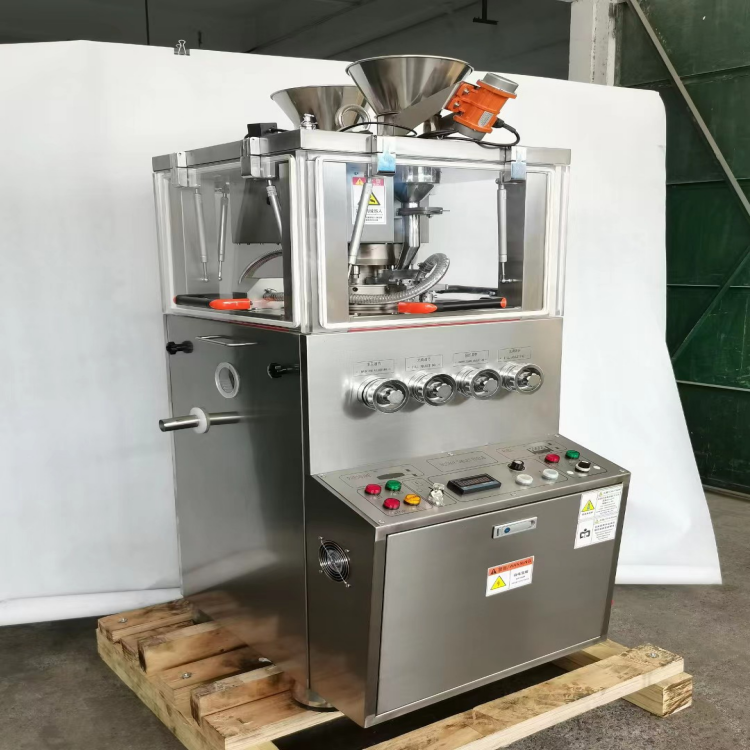

This machine is a double-pressure automatic rotating tablet press that continuously compresses granular raw materials into round, embossed, and irregularly shaped, as well as two-color tablet forms. It is mainly used for tablet production in the pharmaceutical industry and is also suitable for industrial enterprises in chemical, food, and electronics sectors.

One,Key Features

1. The outer shell is a full stainless steel enclosed design, with the internal countertop made of stainless steel, maintaining surface luster and preventing cross-contamination, in compliance withGMPRequirements.

2. Equipped with an acrylic glass transparent window for viewing the pressing status, the side panel can be fully opened for easy internal cleaning and maintenance.

3. All controllers and operating components are well-arranged.

4. Utilizing variable-frequency speed control for electrical tuning, operation is convenient, rotation is smooth, and it is safe and accurate.

5. Equipped with an overload protection device, it can automatically shut down when overpressure occurs.

6. Implement mechatronics, featuring touch keys and screen display.

7. First to trial the semi-automatic lubrication unit and dust-proof glass cover on the top of the turntable.

8. The transmission system is sealed within the oil tank beneath the main unit, forming a separate component for safe disconnection and preventing cross-contamination. It also immerses the transmission section in an oil bath, facilitating easy heat dissipation and wear resistance.

9. Equipped with a dust-collecting device, capable of absorbing dust inside the pressing room.

10. Fragile parts such as guide rails, feeders, hoppers, transmission worm gears, powder meters, etc.ZP33The model product features a universal structure, which is conducive to standardization, generalization, and serialization.
