One,Equipment Overview

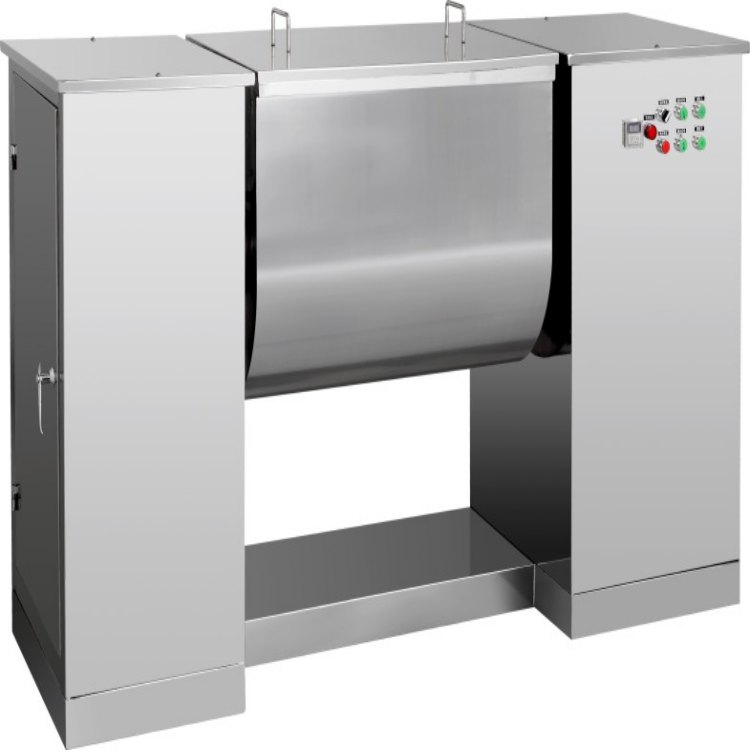

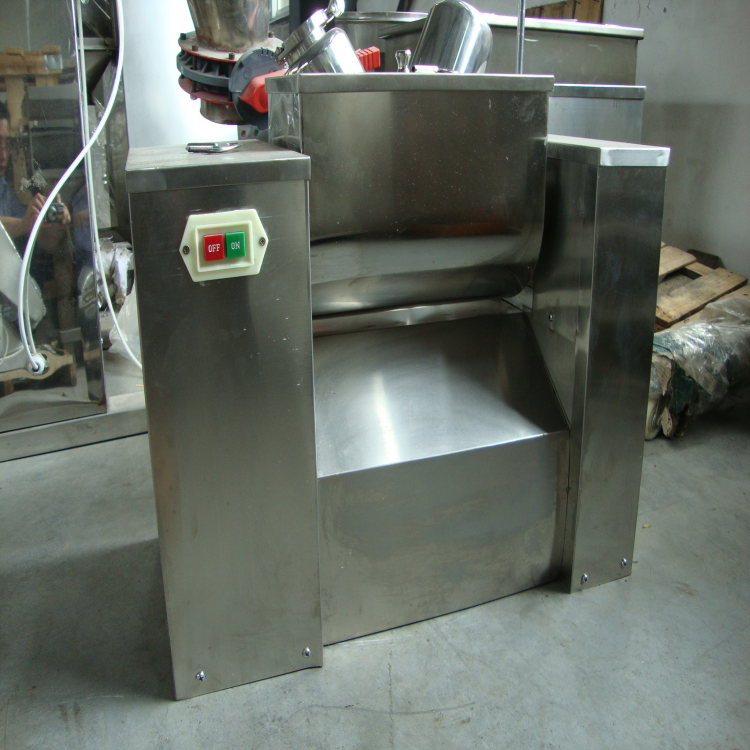

The CH series trough type mixer is used for mixing powdered or wet materials, ensuring a uniform blend of main and auxiliary ingredients in different proportions. It is widely applicable in industries such as pharmaceuticals, food, chemicals, and electronics for dry powder blending. The mixing area of the trough type mixer is made of stainless steel, with small gaps between the浆叶 and drum body, allowing for thorough mixing without dead spots. The shaft ends are equipped with sealing devices to prevent material leakage. The hopper is controlled by a push-button for single-stroke operation, making it easy to discharge materials. It is particularly suitable for materials with high uniformity requirements and significant differences in material density.

Section IIKey Features

The CH series channel-type mixer features a compact structure, simple operation, attractive appearance, small footprint, easy cleaning, and excellent mixing results. The mixer set operates through mechanical rotation, causing the S-shaped impeller to spin and propel the material to reciprocate and mix uniformly. Electrical control is used for operation, allowing for the setting of mixing time, after which the machine automatically shuts off, thereby enhancing the mixing quality of each batch.
